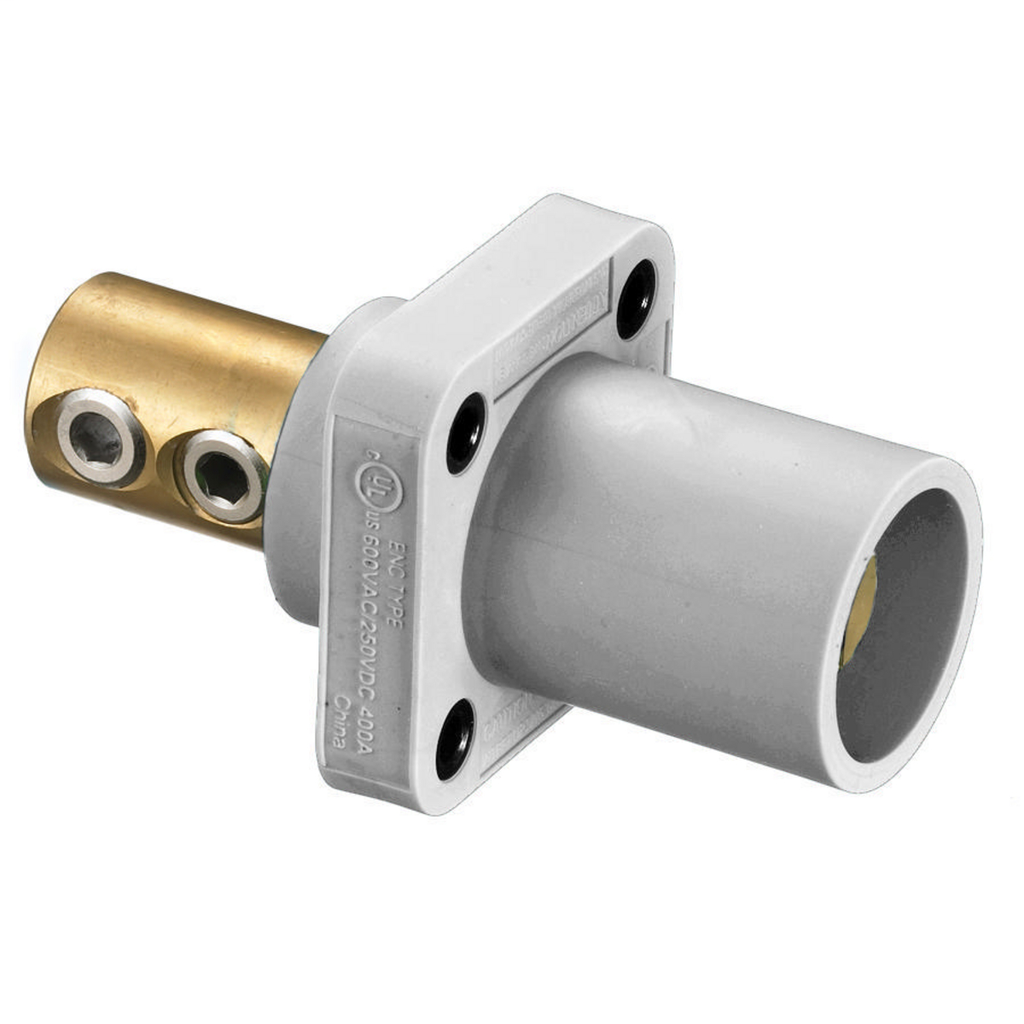

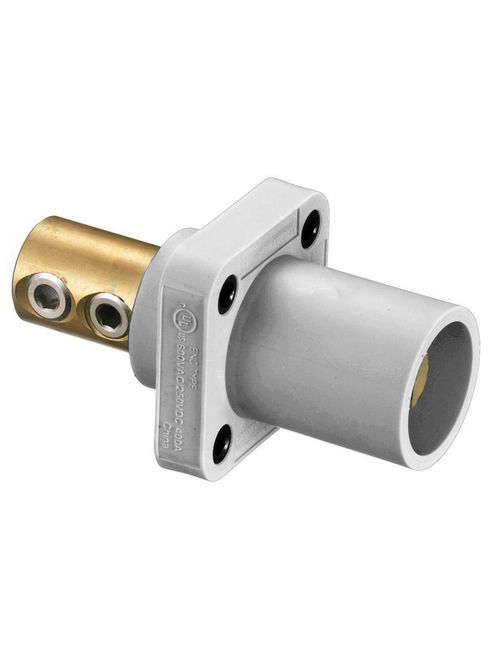

Hubbell Wiring Devices HBLMRW 400 Amp 1-Pole White Double Set Screw Male Cam Type Receptacle
$53.20/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HBLMRW
North Coast Part # 601667

Specifications

General

  • Application: High Ampacity Connections
  • Color: White
  • Environmental Conditions: Indoor Dry Unless Protected By Additional Means
  • Item Type: Flanged Single
  • Material: Thermoplastic
  • Material - Mounting Hardware: Screw Mounting
  • Number Of Poles: 1-Pole
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Performance: Electrical - Amperage Rating - 400A Maximum | Electrical - Voltage Ratings - 600V AC Maximum | 250V DC Maximum | Environmental - Flammability - HB per UL94 or CSA 22.2. 0.17 | Mechanical - Product Identification - Ratings are a permanent part of device | Mechanical - Terminal Accommodation - #4 to 4/0 AWG
  • Series: Series 16
  • Style: Double Set Screw Male
  • Type: Receptacle
  • UPC: 783585113074

Dimensions

  • Display Size: Standard Sized Product

Electrical Ratings

  • Amperage Rating: 400 A
  • Connectivity: Screw Terminals
  • Current / Amperage Rating: 400 A
  • Current Rating: 400 A
  • Phase: Single Phase
  • Voltage Rating Description: 600V AC/DC
  • Wattage: 240000

Conductor Related

  • Wire Size: #4 AWG to #4/0 AWG

Certifications and Compliance

  • Industry Standard(s): National Electric Code (NEC), ANSI/NFPA 70 | UL and cUL Listed | UL Enclosure Types 3R, 4X, 12
  • Nema Rating: Non-NEMA

Logistics

  • Carton Quantity: 25

Overview

UPC 78358511307
GTiN 00783585113074
Length 5.900 in
Width 2.300 in
Size Standard Sized Product
Color White
Type Flanged Single, Standard
Material Thermoplastic
Product Series Series 16
Applications For High Ampacity Connections
Height 5.200 in
Wire Size 4-0000 AWG
Wattage 240000 Watt
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 25
TC Connection Screw Terminals
Current 400 A
Number of Poles 1 Pole
Sub Brand Single Pin Male
Conductor Size 4-4/0 AWG
Standard 12,4X,ANSI,CUL,NFPA 70,National Electric Code (NEC),UL,UL Enclosure Types 3R
Connection Type Set Screw
Voltage null
Environmental Conditions Indoor Dry Unless Protected By Additional Means
