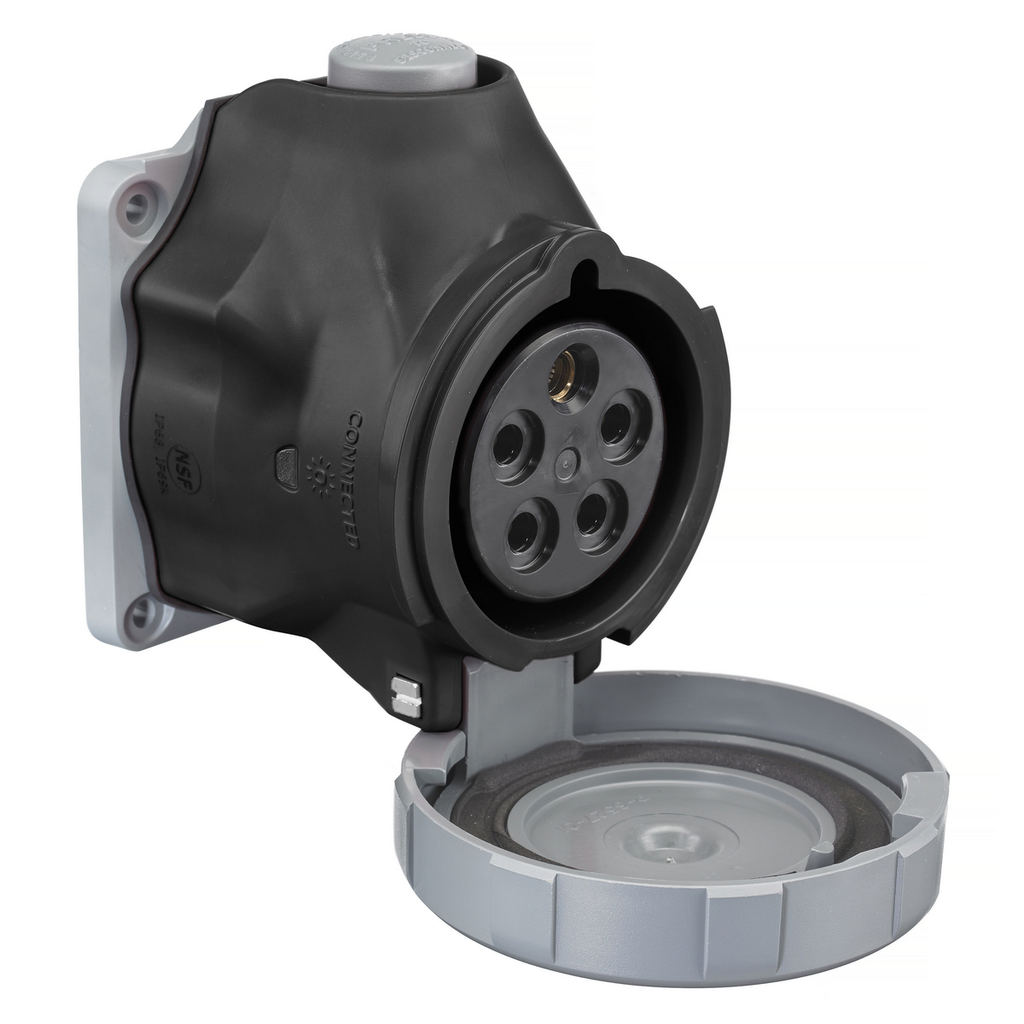

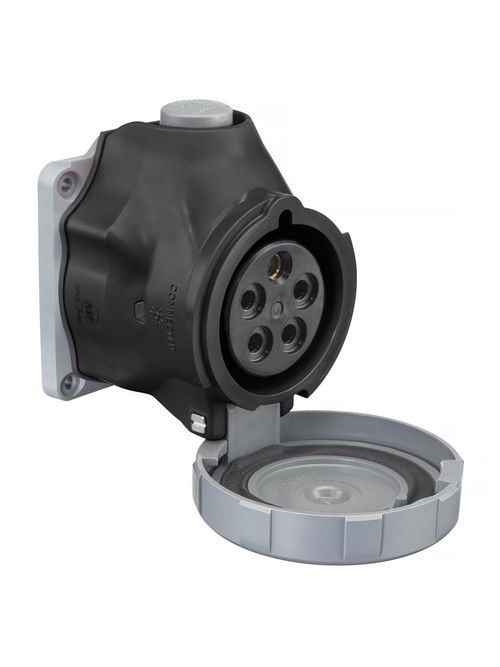

HCI HBLS530R5W PS, IEC, SW RECP, 4P
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$897.79/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HBLS530R5W
North Coast Part # 1830775

Specifications

  • Country of Origin: US
  • Current / Amperage Rating: 30 A
  • Each - Height: 4.620 in
  • Each - Length: 6.000 in
  • Each - Width: 5.250 in
  • Show Add To ProjectList: Yes
  • Amperage Rating: 30 A
  • Color: Black
  • Number of Poles: 4-Pole
  • Number of Wires: 5-Wire
  • Type: Receptacle
  • Voltage Rating: 3 Phase Y 347/600 VAC
  • Voltage Rating Description: 3 Phase Y 347/600 VAC

Certifications

  • EU RoHS Indicator: Contact Manufacturer

Categories

Overview

UPC 78358555054
Item Long Description Heavy Duty Products, Pin and Sleeve Devices, Switched, IEC 309, Receptacle, 30A 347/600V, 4-Pole 5-Wire Grounding, NEMA 4X/IP67, Waiting
GTiN 00783585550541
Length 6.000 in
Width 5.250 in
Color Black
Voltage 600 Volt
Type Switched, Advantage Switch-Rated
Product Series Rated,Advantage Switch
Height 4.620 in
Family Brand Name Hubbell Wiring Device Kellems
Current 30 A
Number of Poles 4 Pole
Number of Wires 5
Material PBT
Temperature Rating -40 to 75 C
Grounding Grounding
Dielectric Strength 3000 VAC
Blade Dimensions 3.13 in W x 3-3/4 in H
Environmental Conditions V0 Flammability Rated, TYPE 3R, 3RX, 4X and IP68, IP69K Ingress Protection, IEC 60309-1 Moisture Resistance
