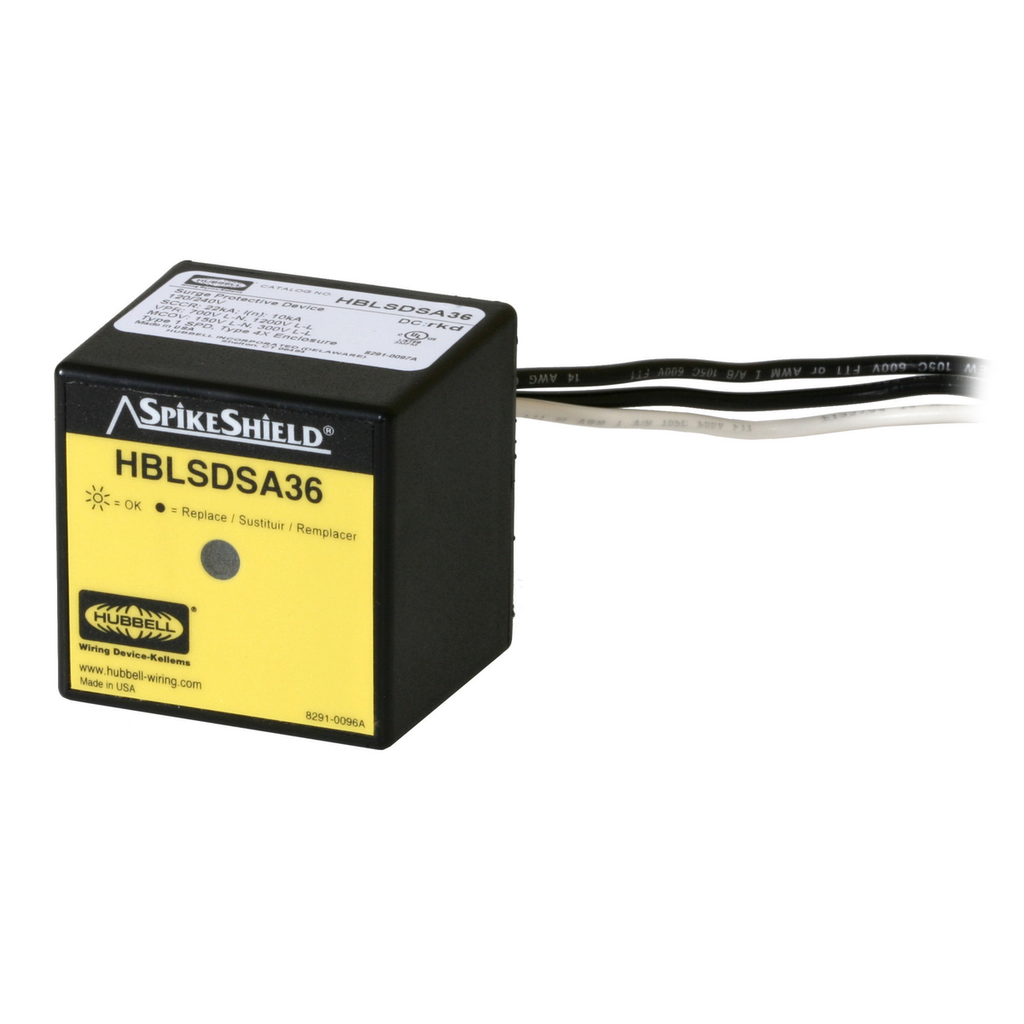

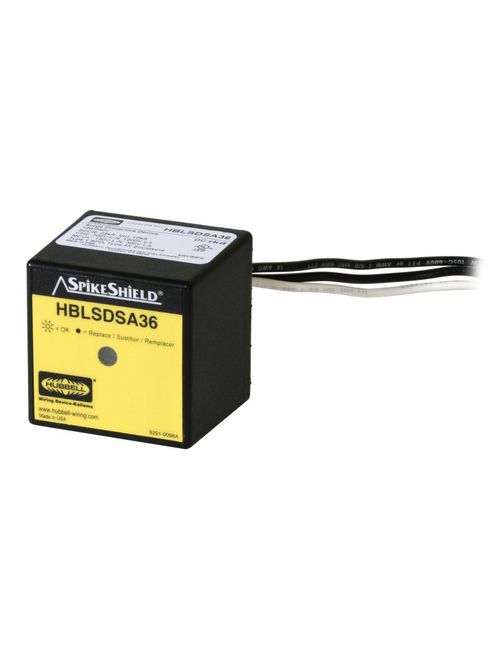

Hubbell Wiring Devices HBLSDSA36 1-Phase 3-Wire 120/240 Volt Back Nipple Mount Wired-In Surge Arrester
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$202.50/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HBLSDSA36
North Coast Part # 678674

Features

  • Excellent for OEM applications
  • Installed on the line side or load side of the service entrance
  • NEMA 4X

Specifications

  • Country of Origin: US
  • Each - Height: 2.600 in
  • Each - Length: 6.900 in
  • Each - Width: 2.600 in
  • Industry Standard(s): UL1449-3rd Edition
  • Performance: Electrical - Diagnostics - Green Status LED per line;Electrical - Surge Current per Phase - 36kA;Environmental - Operating Temperature - -40ºF to 160ºF(-40ºC to 70ºC);Mechanical - Terminal Accommodation - #14 AWG Wire Leads
  • Show Add To ProjectList: Yes
  • Application: Surface Mount Brick with Leads
  • Environmental Conditions: Indoor and Outdoor
  • Frequency Rating: 60 Hz
  • Operating Temperature: -40 Degrees F to 149 Degrees F (-40 C to 65 C)
  • Phase: Single Phase
  • Response Time: 5
  • Special Features: NEMA 4X
  • Standard: UL1449-3rd Edition
  • Type: 36kA
  • Voltage Rating: Single Phase 120; Single Phase 240 (unece.unit.VAC; unece.unit.VAC)
  • Voltage Rating Description: 120/240 VAC Single Phase

Certifications

  • EU RoHS Indicator: No

Overview

UPC 78358512087
Item Long Description Surge Protective Devices, SPIKESHIELD Panel Style, 36KA Single Phase
GTiN 00783585120874
Length 6.900 in
Width 2.600 in
Size 36kA Peak
Operating Temperature -40 Degrees F to 149 Degrees F (-40 C to 65 C)
Voltage 240 Volt
Type Type 2
Material Steel Enclosure
Product Series In Surge Devices,Wired
Applications For Surface Mount Brick with Leads
Mounting Type Screw
Height 2.600 in
Temperature Rating -40 to 65 C
Family Brand Name Hubbell Wiring Device Kellems
Class Type 1/Type 2
TC Connection Leads
Response Time 5 Nanosecond
Environmental Conditions Indoor or Outdoor
Number of Poles 1 Pole
Sub Brand SpikeShield
Nominal Discharge Current 10 kA
Standard UL1449-3rd Edition
