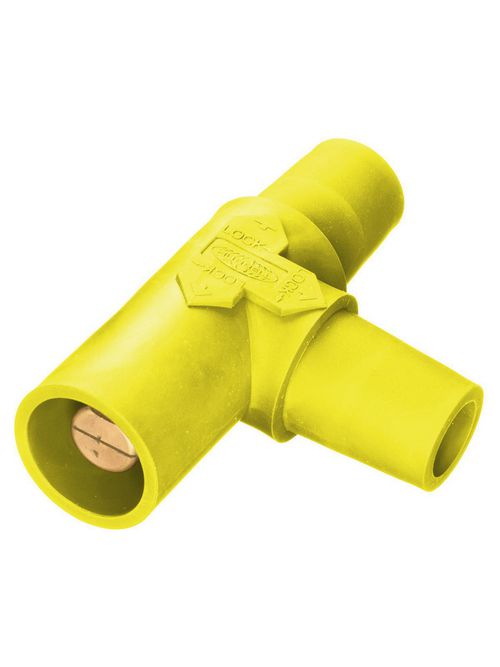

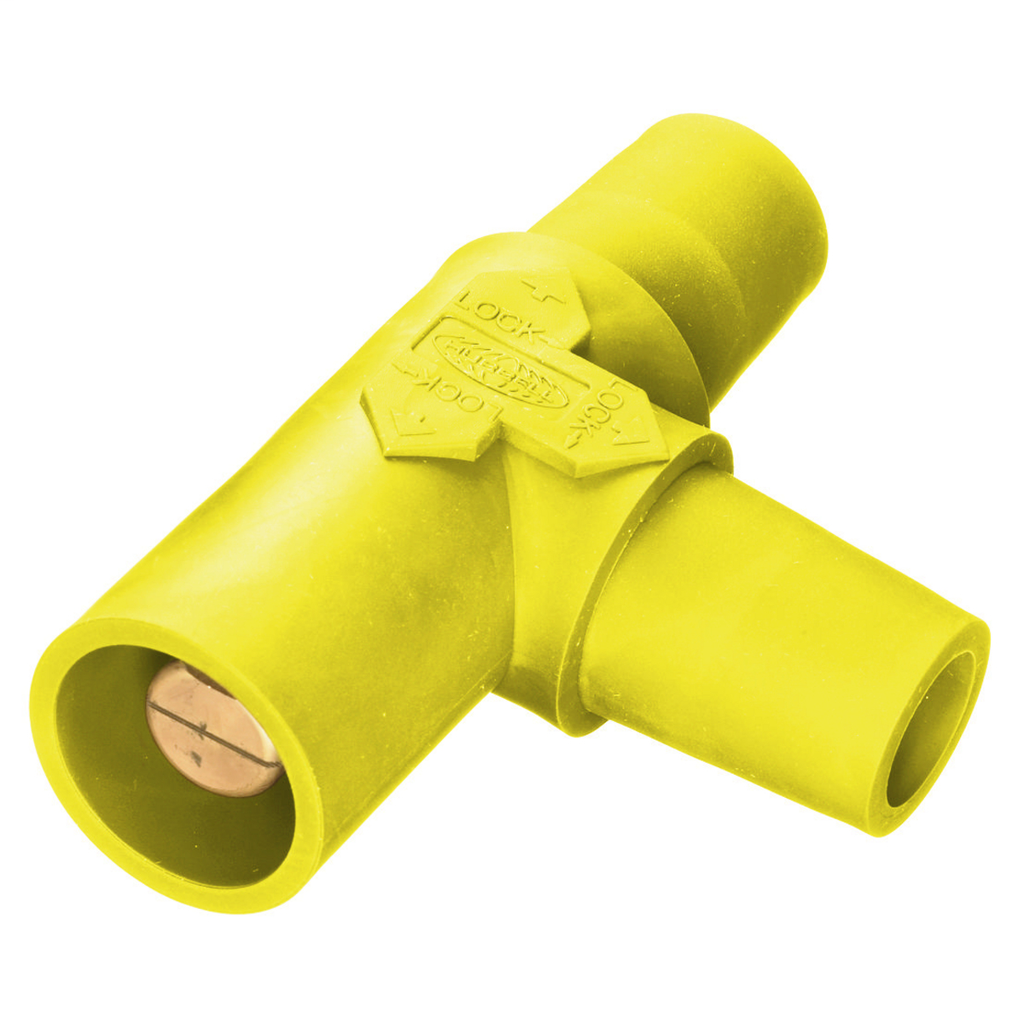

HWDK HBLTY SINGLEPOLE, TAPPING T, F
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$127.83/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HBLTY
North Coast Part # 548901

Features

  • Standard Product

Specifications

  • Country of Origin: CN
  • Current / Amperage Rating: 400 A
  • Each - Height: 1.600 in
  • Each - Length: 3.800 in
  • Each - Width: 4.800 in
  • Industry Standard(s): UL 498 And UL1691
  • Performance: Electrical - Amperage Rating - 400A Maximum;Electrical - Voltage Ratings - 600V AC Maximum;250V DC Maximum;Mechanical - Product Identification - Ratings are a permanent part of the device
  • Show Add To ProjectList: Yes
  • Amperage Rating: 400 A
  • Application: High Ampacity
  • Color: Yellow
  • Insulation: Insulated Body
  • Number of Pins: 1) In, 2) Out- Male-Female-Female
  • Operating Temperature: Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
  • Special Features: Standard Product
  • Standard: UL 498 And UL1691
  • Type: Tees and 3-Fers
  • Wattage: 360000
  • Voltage Rating Description: 600V AC/DC

Certifications

  • EU RoHS Indicator: Contact Manufacturer

Overview

UPC 78358511320
Item Long Description Heavy Duty Products, Single Pole Devices, Industrial Grade, Female-Female-Male, Tapping "Tee", 300/400A, 600V AC/DC, Single Conductor, Pre-Wired, Yellow
GTiN 00783585113203
Length 3.800 in
Width 4.800 in
Color Yellow
Operating Temperature Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
Type Tees and 3-Fers
Material Brass,Elastomer
Product Series Series 16
Applications High Ampacity
Height 1.600 in
Wattage 360000 Watt
Number of Pins 1) In, 2) Out- Male-Female-Female
Family Brand Name Hubbell Wiring Device Kellems
Current 400 A
Sub Brand Single Pole
Standard UL 498,UL1691
Voltage 250/600 Volt
