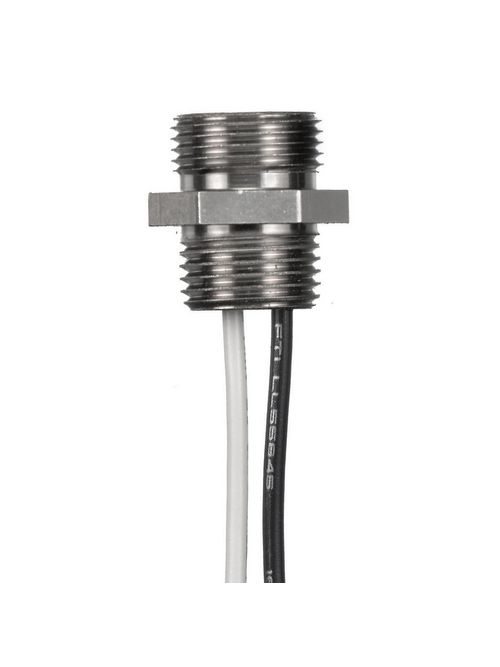

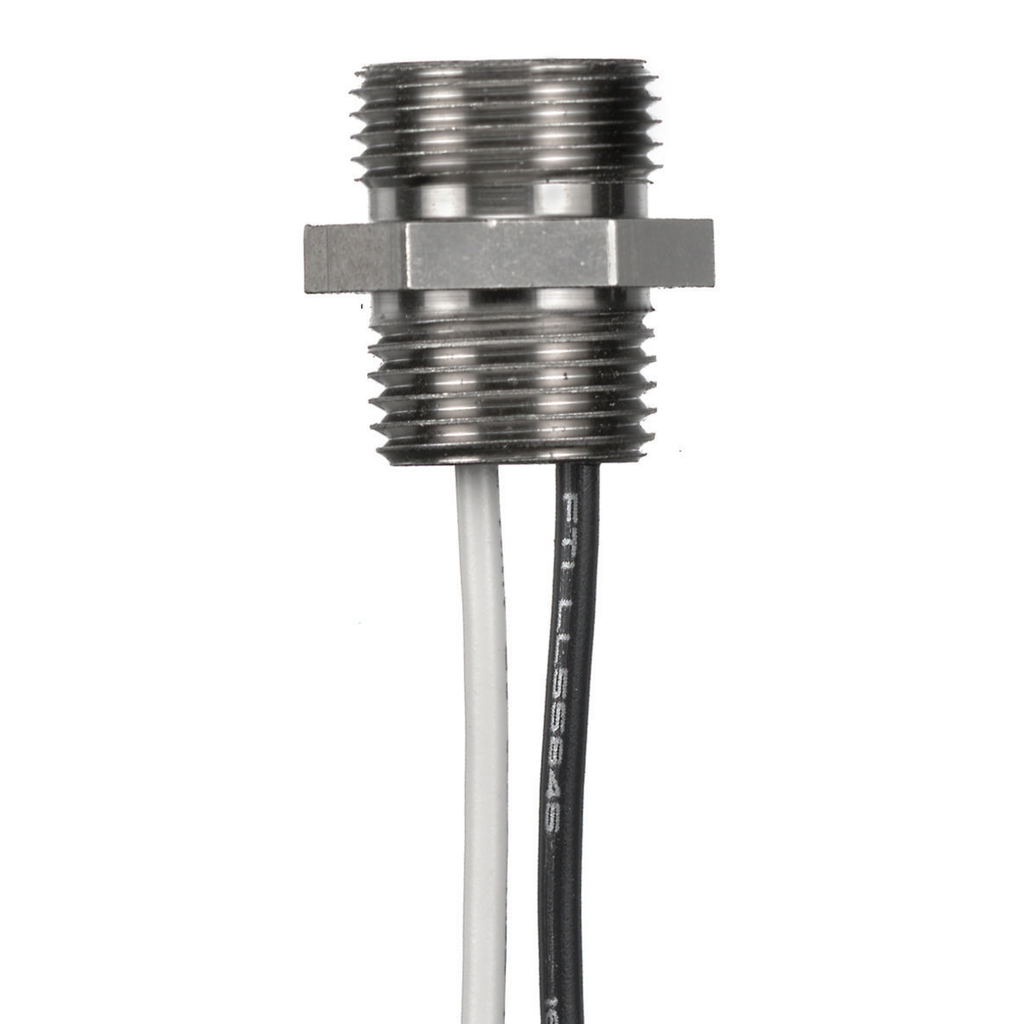

Hubbell Wiring Devices HBNS05501 10 Amp 600 Volt 5-Pole 16 AWG 1 Foot Cable Straight Male Receptacle
$34.09/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HBNS05501
North Coast Part # 877516

Features

  • Black overmold and cable
  • Insulgrip connector body design
  • Plating resists corrosion in high abuse environments
  • Nickel plated brass coupling nuts and receptacle shells

Specifications

General

  • Application: Quick Connect/Disconnect Signal and Control
  • Color: Metallic
  • Construction: Nylon Shell
  • EU RoHS Indicator: Yes
  • Item Type: Male Receptacle
  • Material: Composite
  • Number Of Poles: 5
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Performance: Electrical - Amperage - #16 AWG - 2&3P=15A, 4P=12A, 5&6P=10A | Electrical - Contact Resistance - Less than or equal to 5 Milliohm | Electrical - Isolation Resistance - Greater than or equal to 1000 Megaohm | Electrical - Voltage Rating - 600V DC/600V AC | Environmental - Corrosion Resistance - 500 hours salt spray per MIL-STD-1344, Method 1001 | Environmental - Ingress Protection - IP66 Suitability | Environmental - Moisture Protection - UL Type 4, 4X, 12 and 13 | Environmental - Operating Temperature - AWM2661 cables: -20°C to 105° C | SEOOW cable: -40°C to 105° C | Environmental - Vibration Resistance - 10 - 2,000 Hz @15g per MIL-STD-1344, Method 2005
  • UPC: 783585836287

Electrical Ratings

  • Amperage Rating: 10 A
  • Current / Amperage Rating: 10 A
  • Current Rating: 10 A
  • Voltage Rating: 600V kV
  • Wattage: 6000

Conductor Related

  • Conductor Size: #16 AWG Discrete Wire
  • Conductor Type: Copper
  • Number Of Conductors: 5

Certifications and Compliance

  • Industry Standard(s): CSA Certified, C22.2 No. 182.3 and CSA C22.2 No. 94.2-07 | UL 2238 and UL50E, File No. E192071
  • Nema Rating: Non-NEMA

Logistics

  • Carton Quantity: 50

Overview

UPC 78358583628
GTiN 00783585836287
Length 5.1 in
Width 4.4 in
Color Black
Voltage 600 Volt
Type Standard
Material Nylon
Number of Conductors 5
Conductor Size 16 AWG
Applications Quick Connect/Disconnect Signal and Control
Height 1 in
Wattage 6,000 Watt
Family Brand Name Hubbell Wiring Device Kellems
Conductor Material Copper
Construction Nylon Shell
Carton Qty 50
Current 10 A
Number of Poles 5 Pole
Sub Brand Mini-Quick
Connector Type Male (Plug) Straight Receptacle
Standard CSA C22.2 No. 94.2-07,C22.2 No. 182.3,CSA,UL 2238,UL50E,File No. E192071
Connector Material Copper
Power Rating 6000 W
Cable Length 1 ft
