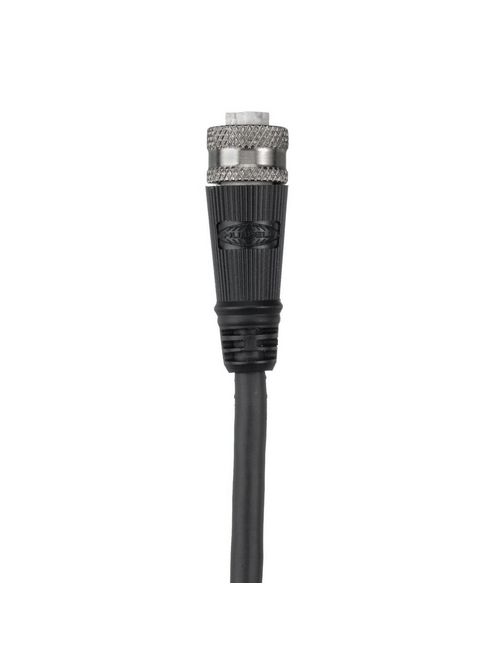

HWDK HPMS06106 MINI-QCK, MALE STR P
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$108.84/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HPMS06106
North Coast Part # 424829

Features

  • Black overmold and cable
  • Insulgrip connector body design
  • Plating resists corrosion in high abuse environments
  • Standard Product

Specifications

  • Country of Origin: US
  • Each - Height: 1.400 in
  • Each - Length: 12.000 in
  • Each - Width: 12.000 in
  • Industry Standard(s): CSA Certified, C22.2 No. 182.3 and CSA C22.2 No. 94.2-07;UL 2238 and UL50E, File No. E192071
  • Performance: Electrical - Amperage - #16 AWG - 2&3P=15A, 4P=12A, 5&6P=10A;Electrical - Contact Resistance - Less than or equal to 5 Milliohm;Electrical - Isolation Resistance - Greater than or equal to 1000 Megaohm;Electrical - Voltage Rating - 600V DC/600V AC;Environmental - Corrosion Resistance - 500 hours salt spray per MIL-STD-1344, Method 1001;Environmental - Ingress Protection - IP66 Suitability;Environmental - Moisture Protection - UL Type 4, 4X, 12 and 13;Environmental - Operating Temperature - SEOOW cable: -40°C to 105° C;AWM2661 cables: -20°C to 105° C;Environmental - Vibration Resistance - 10 - 2,000 Hz @15g per MIL-STD-1344, Method 2005
  • Show Add To ProjectList: Yes
  • Application: Quick Connect/Disconnect Signal and Control
  • Color: Black
  • Insulation: SEOOW
  • Jacket: SEOOW
  • Number of Conductors: 6-Pole
  • Special Features: Standard Product
  • Standard: CSA Certified, C22.2 No. 182.3 and CSA C22.2 No. 94.2-07; UL 2238 and UL50E, File No. E192071
  • Temperature Rating: -20 Deg C to 105 Deg C

Certifications

  • EU RoHS Indicator: Yes

Overview

UPC 78358583056
Item Long Description Signal and Control Products, Mini-Quick Control Connectors, Male Straight Plug, 6P, 16/6, 6'
GTiN 00783585830568
Length 6 ft
Width 9.5 in
Color Black
Type Male Straight Plug
Diameter .99"
Number of Conductors 6-Pole
Conductor Size #16AWG
Applications Quick Connect/Disconnect Signal and Control
Height 8.5 in
Wattage 6000 Watt
Temperature Rating -20 to 105 C
Family Brand Name Hubbell Wiring Device Kellems
Conductor Material Copper
Construction Fabricated
Number of Poles 6 Pole
Sub Brand Mini-Quick Signal and Control Devices
Standard C22.2 No. 182.3,CSA,CSA C22.2 No. 94.2-07,File No. E192071,UL 2238,UL50E
Voltage 600 AC/DC Volt
