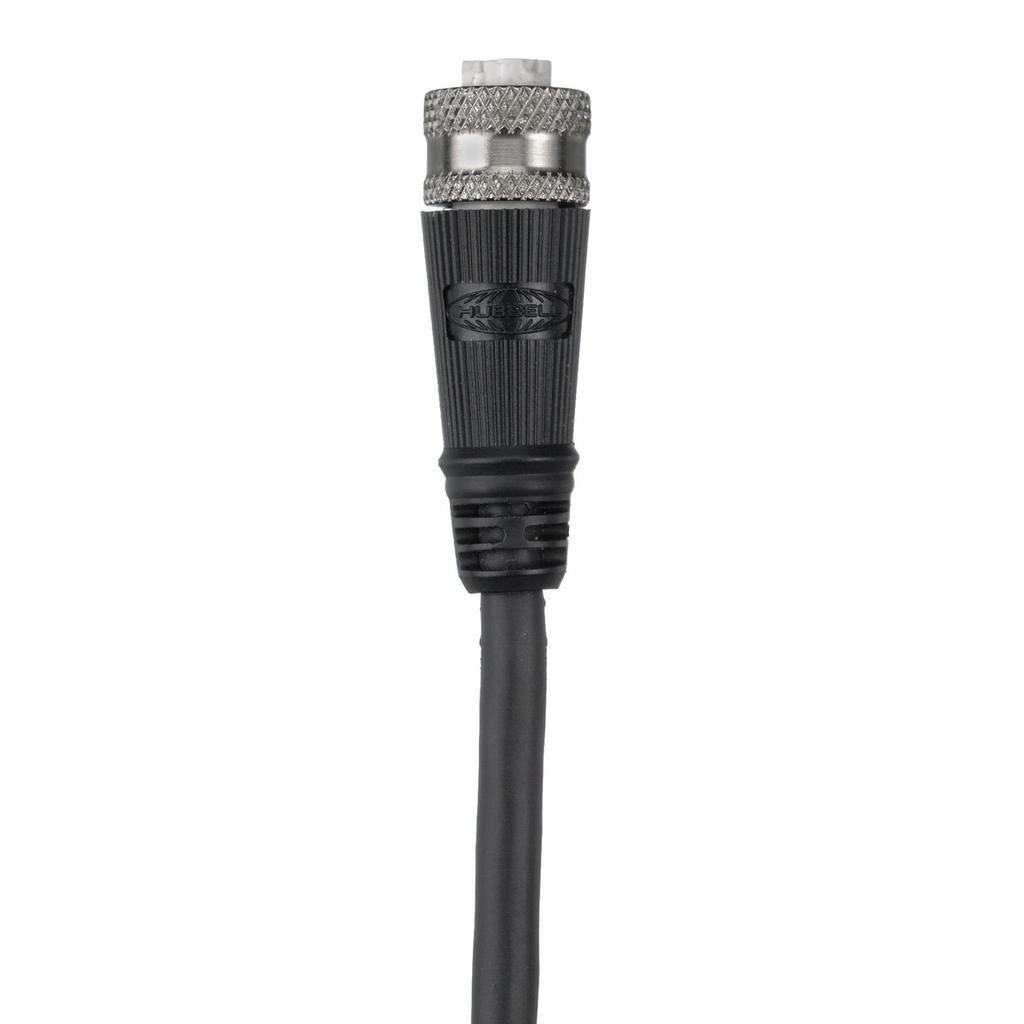

Hubbell Wiring Devices HPMS06112 6-Pole 12 Foot Straight Control Connector Male Plug
$129.66/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HPMS06112
North Coast Part # 602715

Features

  • Black overmold and cable
  • Insulgrip connector body design
  • Plating resists corrosion in high abuse environments

Specifications

General

  • Application: Quick Connect/Disconnect Signal and Control
  • Color: Black
  • EU RoHS Indicator: Yes
  • Insulation: SEOOW
  • Item Type: Male Straight Plug
  • Jacket: SEOOW
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Performance: Electrical - Amperage - #16 AWG - 2&3P=15A, 4P=12A, 5&6P=10A | Electrical - Contact Resistance - Less than or equal to 5 Milliohm | Electrical - Isolation Resistance - Greater than or equal to 1000 Megaohm | Electrical - Voltage Rating - 600V DC/600V AC | Environmental - Corrosion Resistance - 500 hours salt spray per MIL-STD-1344, Method 1001 | Environmental - Ingress Protection - IP66 Suitability | Environmental - Moisture Protection - UL Type 4, 4X, 12 and 13 | Environmental - Operating Temperature - SEOOW cable: -40°C to 105° C | AWM2661 cables: -20°C to 105° C | Environmental - Vibration Resistance - 10 - 2,000 Hz @15g per MIL-STD-1344, Method 2005
  • Temperature Rating: -20 Deg C to 105 Deg C
  • UPC: 783585836928

Dimensions

  • Diameter Live Part: .99"

Conductor Related

  • Conductor Type: Copper
  • Number Of Conductors: 6-Pole

Certifications and Compliance

  • Industry Standard(s): CSA Certified, C22.2 No. 182.3 and CSA C22.2 No. 94.2-07 | UL 2238 and UL50E, File No. E192071

Logistics

  • Carton Quantity: 5

Overview

UPC 78358583692
GTiN 00783585836928
Length 12 ft
Width 10 in
Color Black
Type Male Straight Plug
Diameter .99"
Number of Conductors 6-Pole
Conductor Size 16 AWG
Applications Quick Connect/Disconnect Signal and Control
Height 8.5 in
Wattage 6,000 Watt
Temperature Rating -20 to 105 C
Family Brand Name Hubbell Wiring Device Kellems
Conductor Material Copper
Construction Fabricated
Carton Qty 5
Number of Poles 6 Pole
Sub Brand Mini-Quick Signal and Control Devices
Standard C22.2 No. 182.3,CSA,CSA C22.2 No. 94.2-07,File No. E192071,UL 2238,UL50E
Voltage null
