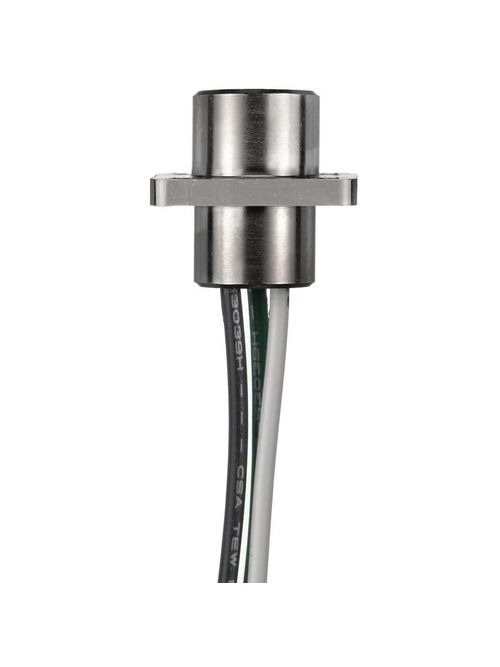

Hubbell Wiring Devices HRMF05501 10 Amp 600 Volt 5-Pole 16 AWG 1 Foot Cable Flange Mount Female Receptacle
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$69.03/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HRMF05501
North Coast Part # 158927

Features

  • Black overmold and cable
  • Insulgrip connector body design
  • Plating resists corrosion in high abuse environments
  • Nickel plated brass coupling nuts and receptacle shells
  • Standard Product

Specifications

  • Color: Metallic
  • Country of Origin: US
  • Current / Amperage Rating: 10 A
  • Each - Height: 1.300 in
  • Each - Length: 6.000 in
  • Each - Width: 5.000 in
  • Industry Standard(s): CSA Certified, C22.2 No. 182.3 and CSA C22.2 No. 94.2-07;UL 2238 and UL50E, File No. E192071
  • Performance: Electrical - Amperage - #16 AWG - 2&3P=15A, 4P=12A, 5&6P=10A;Electrical - Contact Resistance - Less than or equal to 5 Milliohm;Electrical - Isolation Resistance - Greater than or equal to 1000 Megaohm;Electrical - Voltage Rating - 600V DC/600V AC;Environmental - Corrosion Resistance - 500 hours salt spray per MIL-STD-1344, Method 1001;Environmental - Ingress Protection - IP66 Suitability;Environmental - Moisture Protection - UL Type 4, 4X, 12 and 13;Environmental - Operating Temperature - AWM2661 cables: -20°C to 105° C;SEOOW cable: -40°C to 105° C;Environmental - Vibration Resistance - 10 - 2,000 Hz @15g per MIL-STD-1344, Method 2005
  • Voltage Rating: 600V kV

Certifications

  • EU RoHS Indicator: Yes

Overview

GTiN 00783585837123
Length 6 Inch
Width 5.000 in
Color Metallic
Voltage 600 Volt
Type Female Receptacle
Material Composite
Number of Conductors 5
Conductor Size 16 AWG
Applications Quick Connect/Disconnect Signal and Control
Height 1.3 Inch
Wattage 6000 Watt
Family Brand Name Hubbell Wiring Device Kellems
Conductor Material Copper
Construction Metallic Shell
Current 10 A
Number of Poles 5 Pole
Sub Brand Mini-Quick Signal and Control Devices
Product UPC 78358583712
Standard C22.2 No. 182.3,CSA,CSA C22.2 No. 94.2-07,File No. E192071,UL 2238,UL50E
Country of Origin USA
