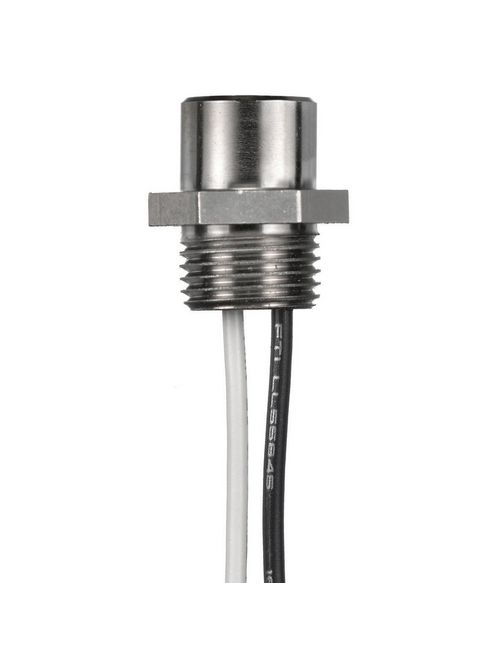

HCI HRMS07501 MINQCK, FEM STR RCPT,
Product image thumbnail 0
Product image thumbnail 1
$73.46/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HRMS07501
North Coast Part # 668738

Features

  • Black overmold and cable
  • Plating resists corrosion in high abuse environments
  • Nickel plated brass coupling nuts and receptacle shells

Specifications

General

  • Application: Quick Connect/Disconnect Signal and Control
  • Color: Metallic
  • Construction: Metallic Shell
  • EU RoHS Indicator: Yes
  • Item Type: Female Receptacle
  • Material: Composite
  • Number Of Poles: 7
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Performance: Electrical - Amperage - #16 AWG - 7P=10A, 8&9P=9A, 10&12P=8A | Electrical - Contact Resistance - Less than or equal to 5 Milliohm | Electrical - Isolation Resistance - Greater than or equal to 1000 Megaohm | Electrical - Voltage Rating - 600V DC/600V AC | Environmental - Corrosion Resistance - 500 hours salt spray per MIL-STD-1344, Method 1001 | Environmental - Ingress Protection - IP66 Suitability | Environmental - Moisture Protection - UL Type 4, 4X, 12 and 13 | Environmental - Operating Temperature - SEOOW cable: -40°C to 105° C | AWM2661 cables: -20°C to 105° C | Environmental - Vibration Resistance - 10 - 2,000 Hz @15g per MIL-STD-1344, Method 2005
  • UPC: 783585837185

Electrical Ratings

  • Amperage Rating: 10 A
  • Current / Amperage Rating: 10 A
  • Current Rating: 10 A
  • Voltage Rating: 600V kV
  • Wattage: 6000

Conductor Related

  • Conductor Size: #16 AWG Discrete Wire
  • Conductor Type: Copper
  • Number Of Conductors: 7

Certifications and Compliance

  • Industry Standard(s): CSA Certified, C22.2 No. 182.3 and CSA C22.2 No. 94.2-07 | UL 2238 and UL50E, File No. E192071
  • Nema Rating: Non-NEMA

Logistics

  • Carton Quantity: 50

Overview

UPC 78358583718
GTiN 00783585837185
Length 4.8 in
Width 4.2 in
Color Metallic
Voltage 600 Volt
Type Female Receptacle
Material Composite
Number of Conductors 7
Conductor Size #16 AWG Discrete Wire
Applications Quick Connect/Disconnect Signal and Control
Height 1.1 in
Wattage 6000 Watt
Family Brand Name Hubbell Wiring Device Kellems
Conductor Material Copper
Construction Metallic Shell
Carton Qty 50
Current 10 A
Number of Poles 7 Pole
Sub Brand Mini-Quick Signal and Control Devices
Standard C22.2 No. 182.3,CSA,CSA C22.2 No. 94.2-07,File No. E192071,UL 2238,UL50E
