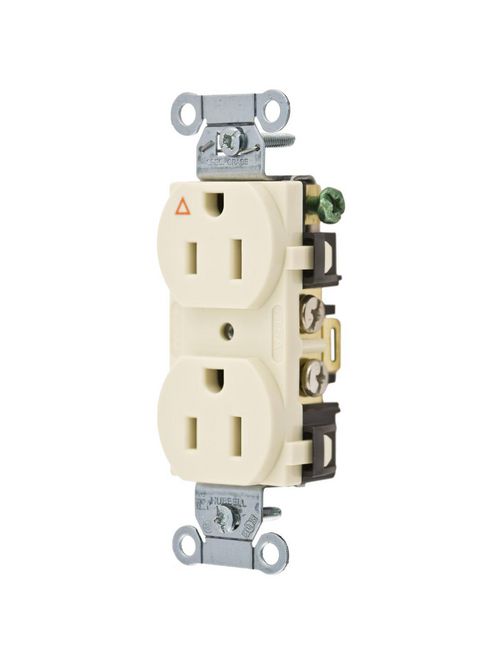

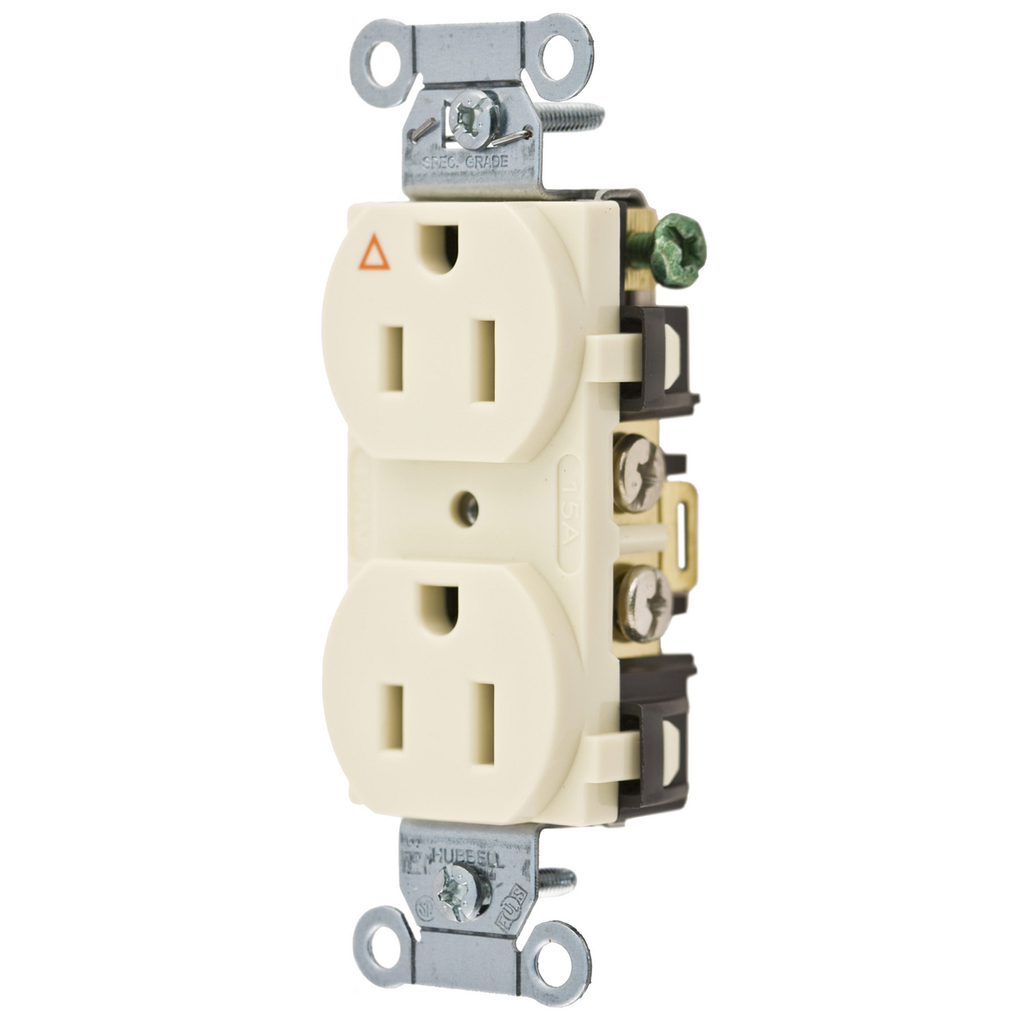

HWDK IG15CRAL COMM 15A SIDE WIRED I
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$8.28/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # IG15CRAL
North Coast Part # 1011757

Features

  • Smooth face
  • Triple wipe contacts
  • Triangle marking on face indicates isolated ground
  • 15A
  • 125V
  • 2 Pole
  • 3 Wire Grounding

Ordering Information

  • Device Color: Almond

Listings

  • NEMA WD-6 Compliant
  • UL Listed to UL498 File No. E2186
  • Certified to CSA C22.2, No. 42
  • Fed. Spec. W-C-596

Specifications

  • Wire Clamp: .062 in. (1.6) Nickel plated steel
  • Base: Nylon
  • Face: Nylon
  • Mounting Screws: Galvanized Steel
  • Ground Contacts: Brass
  • Terminal Screws: Plated steel
  • Mounting Strap: .040 in. (1) Galvanized steel
  • Automatic Self-grounding Staple: Stainless steel
  • Power Contacts: .030 in. (.8) Brass

Performance

Electrical

  • Dielectric Voltage: Withstands 2,000V minimum
  • Current Interrupting: Certified for current interrupting at full rated current

Mechanical

  • Terminal Identification: Terminals identified in accordance with UL 498 and CSA
  • Product Identification: Ratings are a permanent part of the device
  • Terminal Accommodation: #14-#10 AWG copper stranded or solid conductor only

Environmental

  • Flammability: UL 94 V-2
  • Operating Temperatures: Maximum continuous 75°C; minimum -40°C (w/o impact)

Overview

UPC 78358514760
Item Long Description Isolated ground, smooth face, side wired only
GTiN 00783585147604
Length 1.32 in
Width 0.83 in
Size Standard
Color Almond
Voltage 125 Volt
Type Traditional
Material Thermoplastic
Product Series Commercial Specification Grade
Applications Commercial Specification Grade
Height 1.100 in
Wire Size 14-10 AWG
Wattage 1875 Watt
Family Brand Name Hubbell Wiring Device Kellems
TC Connection Back and Side Wired Screw Terminals
Current 15 A
Number of Poles 2 Pole
Number of Wires 3
Sub Brand Straight Blade Devices
Conductor Size 14-12 AWG
Mounting Type Screw, Recessed/Flush
Connection Type Back and Side Wired
Grounding Isolated Ground
Dielectric Strength Withstands 2,000V minimum
Environmental Conditions Indoor Dry Unless Protected By Additional Means
Operating Temperature -40 C
Grade Commercial
Base Material Nylon
Face Material Nylon
Wire Count 3
Flamability Class UL 94 V-2
Contact Material Brass
Amperage 15 Amp
Screw Material Plated Steel
