HCI IG2152 STYLE DUP RCPT, IG, 15A

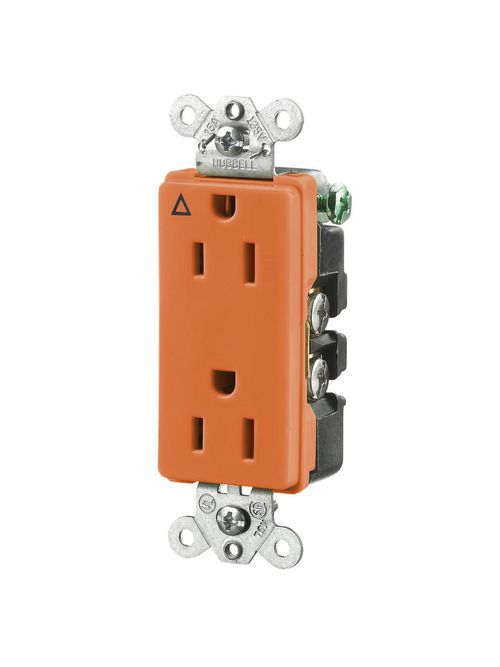

Product image thumbnail 0

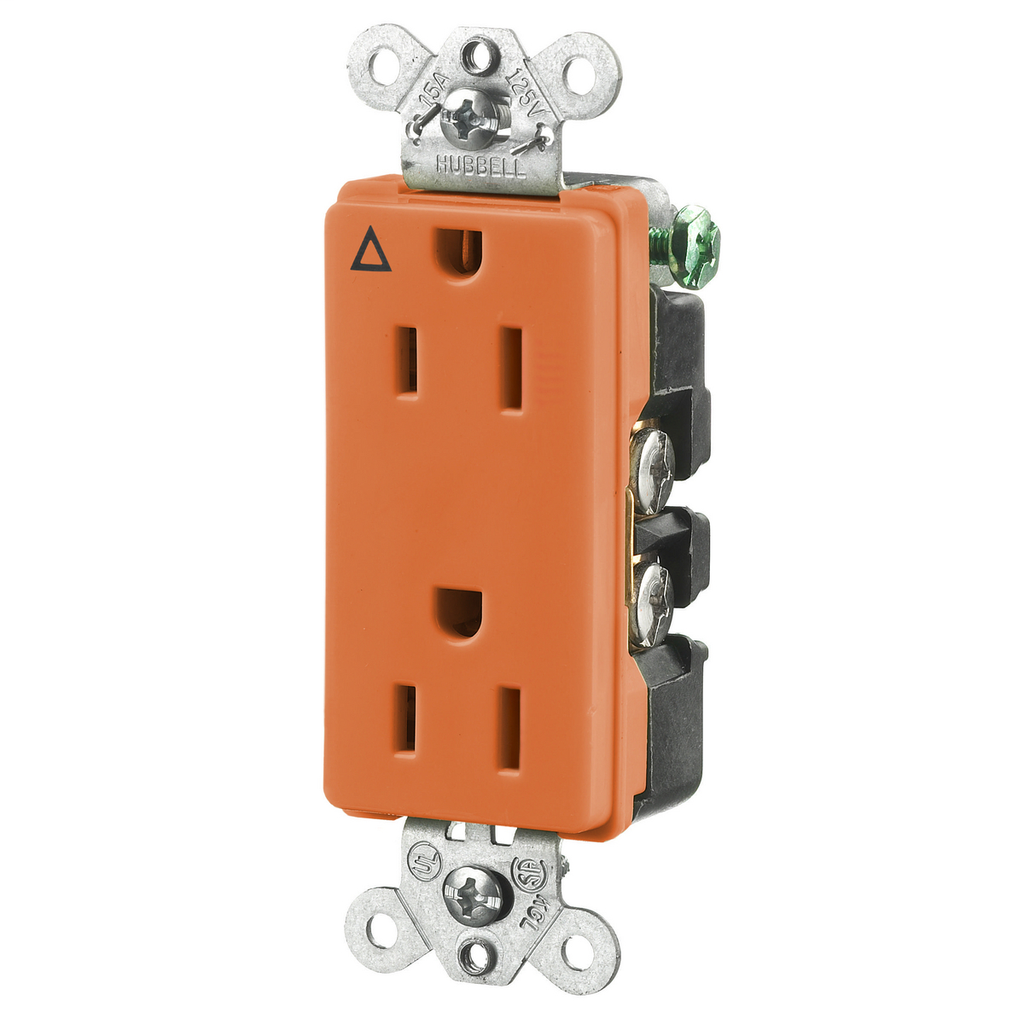

Product image thumbnail 1
$38.74/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # IG2152
North Coast Part # 495171

Features

  • Triangle marking on face indicates isolated ground
  • Aesthetic Style Line® decorator design
  • Triple wipe contacts

Specifications

General

  • Application: Heavy Duty Style Line Decorator Duplex
  • Color: Orange
  • Environmental Conditions: Indoor Dry Unless Protected By Additional Means
  • Horsepower - Maximum: 0.5
  • Item Type: Style Line Decorator Duplex
  • Material: Nylon
  • Material - Mounting Hardware: Screw Mounting
  • Number Of Poles: 2-Pole
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
  • Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current | Electrical - Dielectric Voltage - Withstands 2,000V minimum | Environmental - Flammability - Top: UL 94V-2, Base: UL 94V-0 | Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact) | Mechanical - Product Identification - Ratings are a permanent part of the device | Mechanical - Terminal Accommodation - #14-#10 AWG copper stranded or solid conductor only | Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
  • Series: Heavy Duty
  • Style: Style Line Decorator
  • Type: Standard Duplex
  • UPC: 783585844800

Dimensions

  • Dimensions: 3.28 in x 1.36 in x 1.03 in
  • Display Size: Standard Sized Product
  • Height: 1.03 in
  • Length: 3.28 in
  • Weight: 0.25 lb
  • Width: 1.36 in

Electrical Ratings

  • Amperage Rating: 15 A
  • Connectivity: Back and Side Wired Screw Terminals
  • Current / Amperage Rating: 15 A
  • Current Rating: 15 A
  • Dielectric Strength: Withstands 2,000V minimum
  • Phase: Single Phase
  • Voltage Rating: 125 V
  • Voltage Rating Description: 125 V
  • Wattage: 1875 W

Conductor Related

  • Number Of Wires: 3-Wire
  • Wire Size: #14 AWG to #10 AWG

Certifications and Compliance

  • Industry Standard(s): Certified to CSA 22.2, No. 42 File 285 | Fed. Spec. WC596 | NEMA® WD-6 Compliant | UL Listed to UL498 File No. E2186
  • Nema Rating: 5-15R

Logistics

  • Carton Quantity: 10

Overview

UPC 78358584480
GTiN 00783585844800
Length 3.28 in
Width 1.36 in
Size 3.28 in x 1.36 in x 1.03 in
Color Orange
Voltage 125 Volt
Type Decorator
Material Thermoplastic/Composite
Conductor Size 14 - 12 AWG
Product Series Heavy Duty
Applications Heavy Duty Style Line Decorator Duplex
Mounting Type Screw
Height 1.03 in
Grade Commercial
Weight 0.25 lb
Wire Size 14-10 AWG
Connection Type Back and Side Wired
Wattage 1875 Watt
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 10
Grounding Isolated
TC Connection Back and Side Wired Screw Terminals
Current 15 A
Environmental Conditions Indoor Dry Unless Protected by Additional Means
Number of Poles 2 Pole
Number of Wires 3
Sub Brand Straight Blade Devices
Standard CSA 22.2,Fed. Spec. WC596,NEMA WD-6,No. 42 File 285,UL,UL498 File No. E2186
Dielectric Strength Withstands 2,000V minimum
