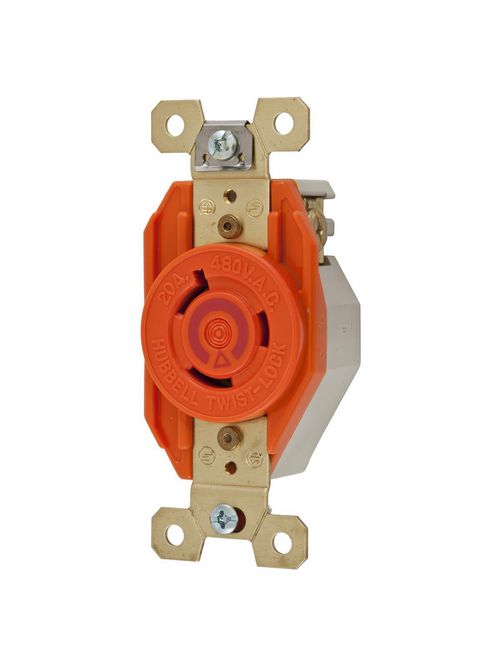

HWDK IG2340 LKG RCPT, IG, 20A 480V,
Product image thumbnail 0
Product image thumbnail 1
$47.11/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # IG2340
North Coast Part # 753822

Features

  • Insulation barrier construction isolates ground contact from mounting strap
  • Wire restraint recess for both back and side wiring, greatly reduces the possibility of loosening the terminal connection
  • High-impact, abuse-resistant nylon face
  • All-brass mounting and grounding system provides a lower resistance ground path and greater resistance to corrosion than steel mounting systems

Specifications

General

  • Application: Heavy Duty Industrial
  • Color: Orange
  • Environmental Conditions: Indoor Dry Unless Protected By Additional Means
  • Horsepower - Maximum: 5
  • Item Type: 20A Single Flush Receptacle
  • Listings: UL 498 | Fed.Spec. W-C-596 | CSA C22.2 No.42
  • Material: Nylon
  • Material - Mounting Hardware: Screw Mounting
  • Number Of Poles: 2-Pole
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
  • Performance: Electrical-Current Interrupting - Certified for current interrupting at full rated current | Electrical - Dielectric Voltage - Withstands 2,000V minimum | Mechanical - Terminal Accommodation - #16 - #8 AWG solid or stranded copper wire | Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 | Environmental - Flammability - V2 or better per UL94/CSA 22.2 No.0.17 | Environmental - Moisture Resistance - IP20 Suitability | Environmental - Operating Temperatures - Maximum Continuous 75°C | Minimum -40°C (w/o impact)
  • UPC: 783585872285

Dimensions

  • Dimensions: 3.28 in x 1.7 in x 1.24 in
  • Display Size: Standard Sized Product
  • Height: 1.24 in
  • Length: 3.28 in
  • Weight: 0.25 lb
  • Width: 1.7 in

Electrical Ratings

  • Amperage Rating: 20 A
  • Connectivity: Back and Side Wired Screw Terminals
  • Current / Amperage Rating: 20 A
  • Current Rating: 20 A
  • Dielectric Strength: Withstands 2,000V minimum
  • Phase: Single Phase
  • Voltage Rating: 480 V
  • Voltage Rating Description: 480 V
  • Wattage: 9600 W

Conductor Related

  • Number Of Wires: 3-Wire Grounding
  • Wire Size: #16 AWG to #8 AWG

Certifications and Compliance

  • Industry Standard(s): Certified to CSA C22.2 No.42 | Fed.Spec. W-C-596 | Listed to UL 498
  • Nema Rating: 8-20R

Logistics

  • Carton Quantity: 10

Categories

Overview

UPC 78358587228
GTiN 00783585872285
Length 3.28 in
Width 1.7 in
Size 3.28 in x 1.7 in x 1.24 in
Color Orange
Voltage 480 Volt
Type Single Receptacle
Material Nylon
Applications Heavy Duty Industrial
Height 1.24 in
Weight 0.25 lb
Wire Size 16 AWG-8 AWG
Wattage 9600 Watt
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 10
TC Connection Screw Terminals
Current 20 A
Number of Poles 2 Pole
Number of Wires 3
Sub Brand Twist-Lock Devices
Standard CSA C22.2 No.42,Fed.Spec. W-C-596,UL 498
Dielectric Strength Withstands 2,000V minimum
Environmental Conditions Indoor Dry Unless Protected By Additional Means
