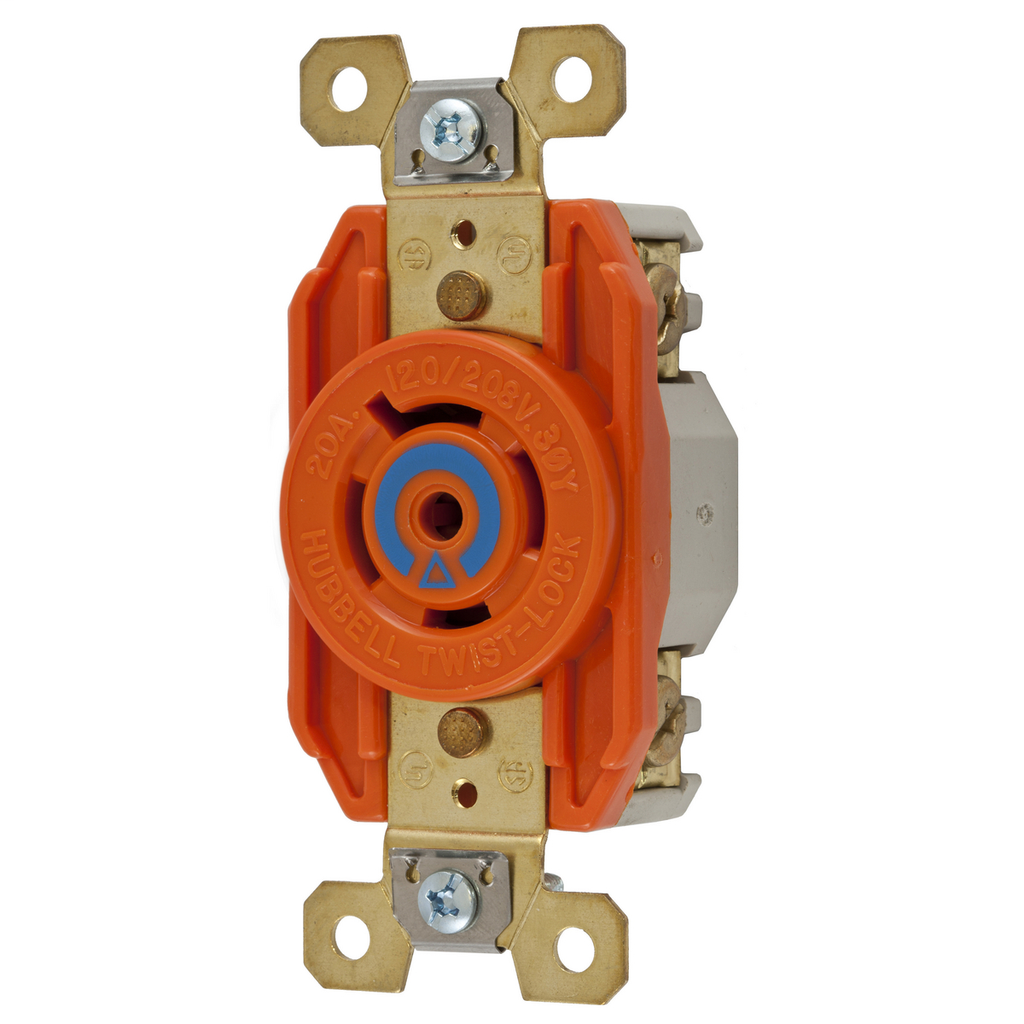

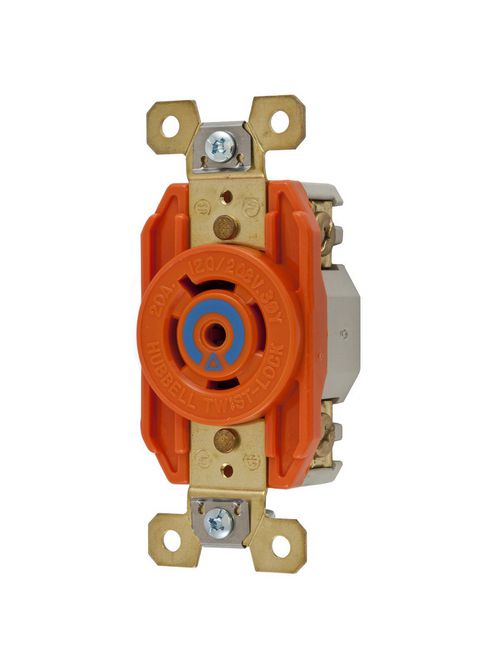

HWDK IG2510 LKG RCPT, IG, 20A 120/2
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$79.28/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # IG2510
North Coast Part # 736

Features

  • Insulation barrier construction isolates ground contact from mounting strap
  • Wire restraint recess for both back and side wiring, greatly reduces the possibility of loosening the terminal connection
  • High-impact, abuse-resistant nylon face
  • All-brass mounting and grounding system provides a lower resistance ground path and greater resistance to corrosion than steel mounting systems
  • Isolated Ground

Specifications

  • Country of Origin: US
  • Current / Amperage Rating: 20 A
  • Dimensions: 3.28 in x 1.70 in x 1.23 in
  • Each - Height: 1.540 in
  • Each - Length: 4.170 in
  • Each - Width: 1.790 in
  • Height: 1.23 in
  • Horsepower - Maximum: 2
  • Industry Standard(s): Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498
  • Length: 3.28 in
  • Performance: Electrical-Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Mechanical - Terminal Accommodation - #16 - #8 AWG solid or stranded copper wire;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498;Mechanical - Flammability - V2 or better per UL94/CSA 22.2 No.0.17;Environmental - Moisture Resistance - IP20 Suitability;Environmental - Operating Temperatures - Maximum Continuous 75°C;Minimum -40°C (w/o impact)
  • Show Add To ProjectList: Yes
  • Amperage Rating: 20 A
  • Application: Heavy Duty Industrial
  • Color: Orange
  • Dielectric Strength: Withstands 2,000V minimum
  • Environmental Conditions: Indoor Dry Unless Protected By Additional Means
  • NEMA Rating: 21-20R
  • Number of Poles: 4-Pole
  • Number of Wires: 5-Wire Grounding
  • Phase: 3 Phase WYE
  • Size: 3.28 in x 1.70 in x 1.23 in
  • Special Features: Isolated Ground
  • Standard: Certified to CSA C22.2 No.42; Fed.Spec. W-C-596; Listed to UL 498
  • Voltage Rating: 120; 208 (unece.unit.VLT; unece.unit.VLT)
  • Wattage: 4160 W
  • Wire Size: #16 AWG to #8 AWG
  • Voltage Rating Description: 120/208 V
  • Width: 1.70 in

Certifications

  • EU RoHS Indicator: Yes
  • Listings: UL 498;Fed.Spec. W-C-596;CSA C22.2 No.42

Overview

UPC 78358587246
Item Long Description Twist-Lock Devices, Single Flush Receptacle 20A, 3 Phase Y 120/208V AC, 4 Pole, 5 Wire Grounding, NEMA L21-20R, Isolated ground, nylon, Orange
GTiN 00783585872469
Length 3.28 in
Width 1.70 in
Size 3.28 in x 1.70 in x 1.23 in
Color Orange
Voltage 208 Volt
Type Heavy Duty
Material Thermoplastic
Conductor Size 14-8 AWG
Applications Heavy Duty Industrial
Mounting Type Screw, Recessed/Flush
Height 1.23 in
Grade Industrial
Weight 0.30 lb
Wire Size 16 AWG-8 AWG
Wattage 4160 Watt
Family Brand Name Hubbell Wiring Device Kellems
Grounding Isolated Ground
TC Connection Screw Terminals
Current 20 A
Number of Poles 4 Pole
Number of Wires 5
Sub Brand Twist-Lock
Standard CSA C22.2 No.42,Fed.Spec. W-C-596,UL 498
Dielectric Strength Withstands 2,000V minimum
Environmental Conditions Indoor Dry Unless Protected By Additional Means
