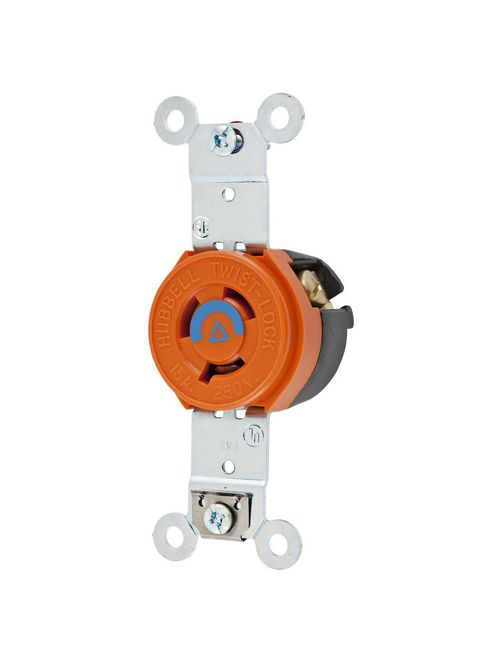

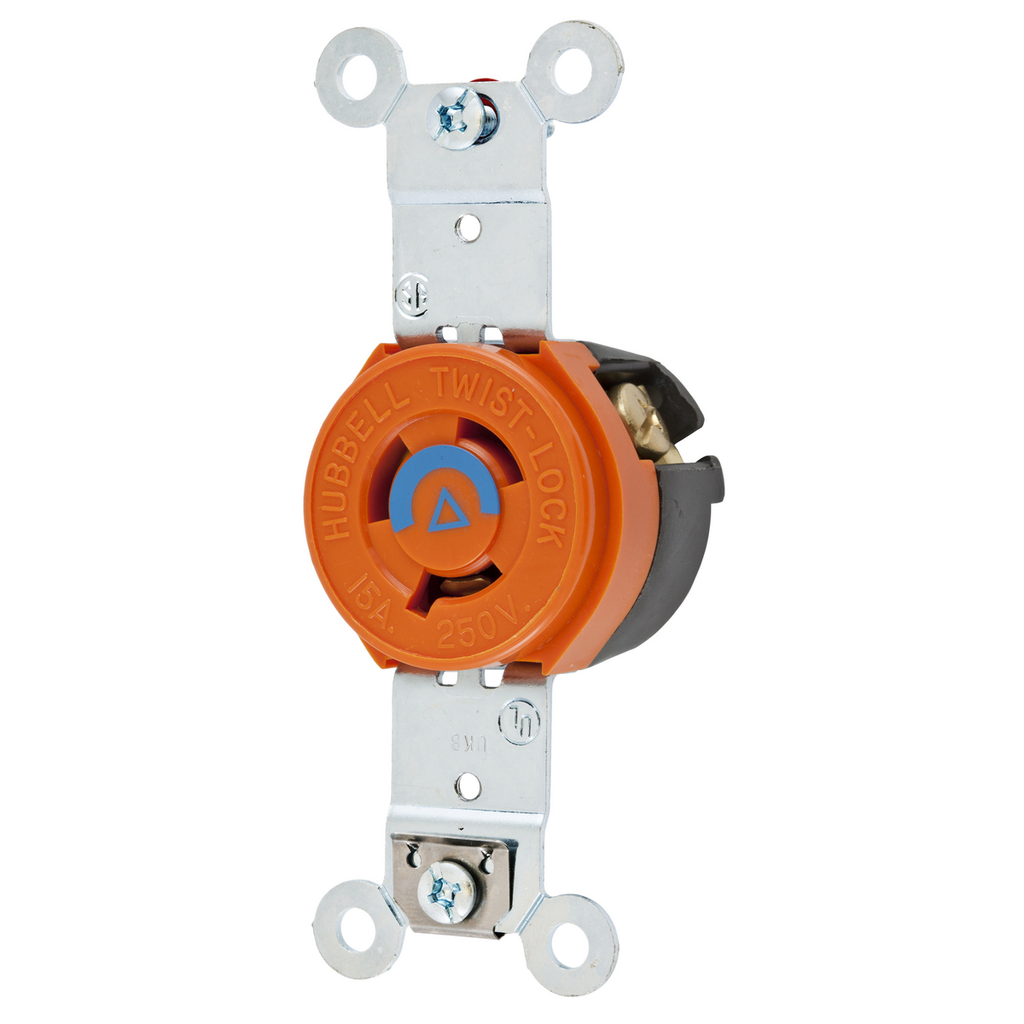

HWDK IG4560 LKG SGL RCPT, IG, 15A 2
$54.34/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # IG4560
North Coast Part # 17581

Features

  • Reinforced thermoplastic construction
  • Single piece, all brass contacts
  • All terminals are back and side wired
  • Brass mounting strap with stainless steel grounding clip

Specifications

General

  • Application: Heavy Duty Industrial
  • Environmental Conditions: Indoor Dry Unless Protected By Additional Means
  • Horsepower - Maximum: 0.5
  • Item Type: 15A Isolated Ground Single Receptacle
  • Listings: UL 498 | Fed.Spec. W-C-596 | CSA C22.2 No.42
  • Material: Nylon
  • Material - Mounting Hardware: Screw Mounting
  • Number Of Poles: 2-Pole
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
  • Performance: Electrical-Current Interrupting - Certified for current interrupting at full rated current | Electrical - Dielectric Voltage - Withstands 2,000V minimum | Mechanical - Terminal Accommodation - #18 - #10 AWG stranded copper wire only | Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 | Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17 | Environmental - Moisture Resistance - IP20 Suitability | Environmental - Operating Temperatures - Maximum Continuous 75°C | Minimum -40°C (w/o impact)
  • UPC: 783585777993

Dimensions

  • Dimensions: 3.28 in x 1.53 in x 1.27 in
  • Display Size: Standard Sized Product
  • Height: 1.27 in
  • Length: 3.28 in
  • Weight: 0.15 lb
  • Width: 1.53 in

Electrical Ratings

  • Amperage Rating: 15 A
  • Connectivity: Screw Terminals
  • Current / Amperage Rating: 15 A
  • Current Rating: 15 A
  • Dielectric Strength: Withstands 2,000V minimum
  • Phase: Single Phase
  • Voltage Rating: 250 V
  • Voltage Rating Description: 250 V
  • Wattage: 3750 W

Conductor Related

  • Number Of Wires: 3-Wire Grounding
  • Wire Size: #18 AWG to #10 AWG

Certifications and Compliance

  • Industry Standard(s): Listed to UL 498
  • Nema Rating: 6-15R

Logistics

  • Carton Quantity: 10

Overview

UPC 78358577799
GTiN 00783585777993
Length 3.28 in
Width 1.53 in
Size Standard Sized
Color Orange
Voltage 250 Volt
Type Single
Material Nylon
Applications Heavy Duty Industrial
Height 1.27 in
Weight 0.15 lb
Wire Size 14-12 AWG
Wattage 3,750 Watt
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 10
TC Connection Screw Terminal
Current 15 A
Number of Poles 2 Pole
Number of Wires 3
Sub Brand Twist-Lock
Standard UL 498
