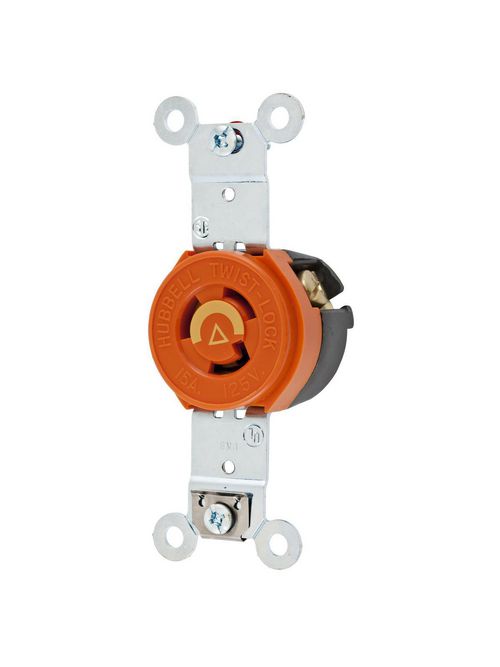

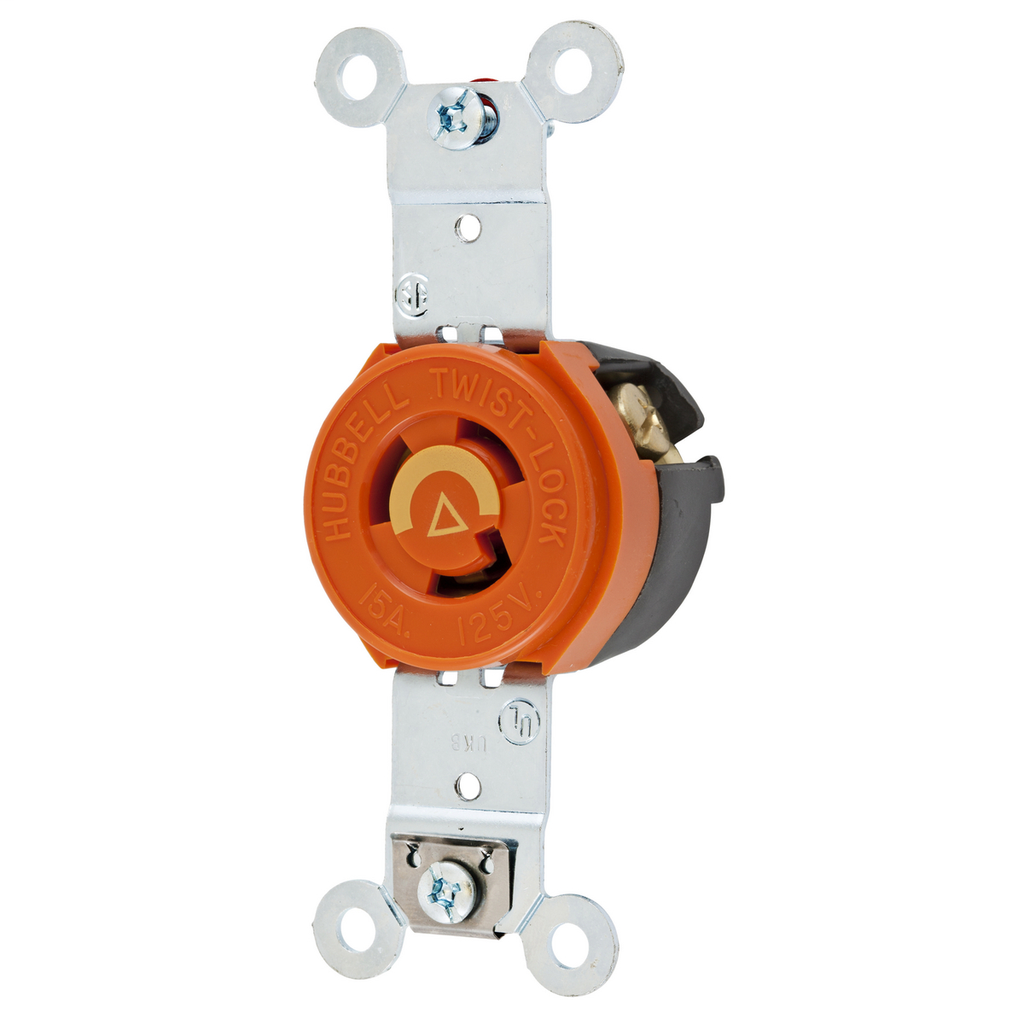

Hubbell Wiring Devices IG4710 15 Amp 125 Volt 2-Pole 3-Wire NEMA L5-15R Orange Isolated Ground Locking Single Receptacle
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$60.29/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # IG4710
North Coast Part # 18787

Features

  • Reinforced thermoplastic construction
  • Single piece, all brass contacts
  • All terminals are back and side wired
  • Brass mounting strap with stainless steel grounding clip
  • Isolated Ground

Specifications

  • Country of Origin: US
  • Current / Amperage Rating: 15 A
  • Dimensions: 3.28 in x 1.53 in x 1.27 in
  • Each - Height: 1.540 in
  • Each - Length: 4.160 in
  • Each - Width: 1.790 in
  • Height: 1.27 in
  • Horsepower - Maximum: 0.5
  • Industry Standard(s): Listed to UL 498
  • Length: 3.28 in
  • Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17;Environmental - Moisture Resistance - IP20 Suitability;Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact);Mechanical - Terminal Accommodation - #18 AWG - #10 AWG solid or stranded copper wire.;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
  • Show Add To ProjectList: Yes
  • Amperage Rating: 15 A
  • Application: Heavy Duty Industrial
  • Dielectric Strength: Withstands 2,000V minimum
  • Environmental Conditions: Indoor Dry Unless Protected By Additional Means
  • NEMA Rating: L6-15R
  • Number of Poles: 2-Pole
  • Number of Wires: 3-Wire
  • Phase: Single Phase
  • Size: 3.28 in x 1.53 in x 1.27 in
  • Special Features: Isolated Ground
  • Standard: Listed to UL 498
  • Voltage Rating: 125 V
  • Wattage: 1875 W
  • Wire Size: #18 AWG to #10 AWG
  • Voltage Rating Description: 125 V
  • Width: 1.53 in

Certifications

  • EU RoHS Indicator: Yes

Overview

UPC 78358577804
Item Long Description Locking Devices, Twist-Lock, Isolated Ground Industrial, Single Receptacle, 15A 125V, 2-Pole 3-Wire Grounding, NEMA L5-15R, Screw Terminal, Orange.
GTiN 00783585778044
Length 3.28 in
Width 1.53 in
Size Standard
Color Orange
Voltage 125 Volt
Type Isolated Ground, Heavy Duty
Material Thermoplastic
Conductor Size 14-12 AWG
Applications Heavy Duty Industrial
Mounting Type Screw, Recessed/Flush
Height 1.27 in
Grade Industrial
Weight 0.20 lb
Wire Size 18-10 AWG
Wattage 1875 Watt
Family Brand Name Hubbell Wiring Device Kellems
TC Connection Screw Terminals
Current 15 A
Environmental Conditions Indoor Dry Unless Protected by Additional Means
Number of Poles 2 Pole
Number of Wires 3-Wire Grounding
Sub Brand Twist-Lock
Standard UL 498
Dielectric Strength Withstands 2,000V minimum
