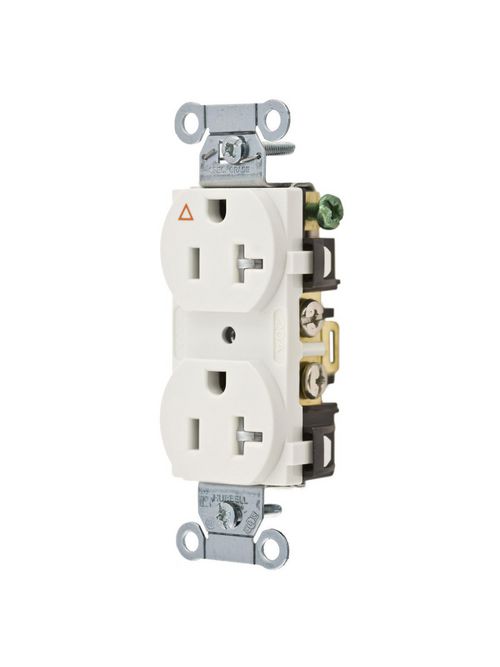

HWDK IG5352WTR COMM 20A SIDE & BAC
Product image thumbnail 0
Product image thumbnail 1
$29.55/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # IG5352WTR
North Coast Part # 1607209

Features

  • Triangle marking on face indicates isolated ground
  • Tamper-Resistant
  • Smooth Face
  • Wrap-around galvanized steel strap
  • Isolated Ground and Tamper Resistant

Performance

  • Environmental - Flammability - UL 94 V-2
  • Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
  • Environmental - Operating Temperature - Maximum continuous 75°C, minimum -40°C (w/o impact)
  • Electrical - Dielectric Voltage - Withstands 2,000V minimum
  • Mechanical - Product Identification - Ratings are a permanent part of the device
  • Electrical - Current Interrupting - Certified for current interrupting at full rated current
  • Mechanical - Terminal Accommodation - #12-#10 AWG copper stranded or solid conductor only

Industry Standard(s)

  • NEMA® WD-6 Compliant
  • Fed. Spec. W-C-596
  • UL Listed to UL498 File No. E2186
  • Certified to CSA 22.2, No. 42 File 285

Specifications

  • Amperage Rating: 20 A
  • Application: Hubbell-Pro Heavy Duty Specification Grade
  • Carton Quantity: 10 EA
  • Color: White
  • Connectivity: Back and Side Wired Screw Terminals
  • Current / Amperage Rating: 20 A
  • Current Rating: 20 A
  • Dielectric Strength: Withstands 2,000V minimum
  • Display Size: Standard Sized Product
  • Environmental Conditions: Indoor Dry Unless Protected By Additional Means
  • Horsepower - Maximum: 1
  • Item Type: Traditional Duplex
  • Material: Nylon
  • Material - Mounting Hardware: Screw Mounting
  • Minimum Order Quantity: 1 EA
  • Nema Rating: 5-20R
  • Number Of Poles: 2-Pole
  • Number Of Wires: 3-Wire
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact °C
  • Phase: Single Phase
  • SAP Material Group 5: A10
  • Series: Hubbell-PRO
  • Style: Smooth Face
  • Type: Standard Duplex
  • Voltage Rating: 125 V
  • Voltage Rating Description: 125 V
  • Wattage: 2500 W
  • Wire Size: #12 AWG to #10 AWG
  • EU RoHS Indicator: No
  • Each - Length: 4.200 in
  • Each - Height: 1.100 in
  • Each - Width: 1.600 in
  • Special Features: Isolated Ground and Tamper Resistant
  • Standard: Certified to CSA 22.2, No. 42 File 285 || Fed. Spec. W-C-596 || NEMA® WD-6 Compliant || UL Listed to UL498 File No. E2186

Overview

UPC 78358554006
GTiN 00783585540061
Length 4.200 in
Width 1.600 in
Size 3.28 in x 1.57 in x 1.07 in
Color White
Voltage 125 Volt
Type Ard Duplex,St
Material Nylon
Product Series Hubbell,PRO
Applications Hubbell-Pro Heavy Duty Specification Grade
Height 1.100 in
Wire Size 12-10 AWG
Wattage 2500 Watt
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 10
TC Connection Back and Side Wired Screw Terminals
Current 20 A
Number of Poles 2 Pole
Number of Wires 3
Sub Brand Straight Blade Devices
Dielectric Strength Withstands 2,000V minimum
Environmental Conditions Indoor Dry Unless Protected By Additional Means
