HWDK IG5362ISA DUP SPD RCPT, IG, 20
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$130.93/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # IG5362ISA
North Coast Part # 154819

Features

  • Automatic self-grounding staple
  • Distinctive surge symbol provides quick identification
  • Power-on indicator light verifies that power is available
  • Alert alarm sounds when surge protection is no longer functioning
  • Isolated Ground

Specifications

  • Color: Ivory
  • Country of Origin: CN
  • Current / Amperage Rating: 20 A
  • Each - Height: 1.700 in
  • Each - Length: 4.300 in
  • Each - Width: 2.300 in
  • Industry Standard(s): CSA Certified to Specification C22.2 No. 42;Listed to UL Standards 498;UL Listed File E2186
  • Performance: Electrical - Protection Modes - Normal and Common Modes;Electrical - Response Time - Approximately 5 ns;Electrical - Transient Suppression - Peak Energy (10 X 100 µs), Peak Current (8 X 20 µs);Electrical - Voltage - 120V AC + 10% - 15%;Environmental - Flammability - UL 94V-2;Environmental - Operating Temperature - 32°F to 140°F (0°C to 60°C)
  • Show Add To ProjectList: Yes
  • Amperage Rating: 20 A
  • Application: Decorator Duplex with Light and Alarm
  • Environmental Conditions: Indoor Dry Unless Protected By Additional Means
  • Frequency Rating: 60 Hz
  • Operating Temperature: 32 Deg F to 140 Deg F (0 Deg C to 60 Deg C)
  • Outlet: Straight Blade
  • Phase: Single Phase
  • Response Time: 5
  • Special Features: Isolated Ground
  • Standard: CSA Certified to Specification C22.2 No. 42; Listed to UL Standards 498; UL Listed File E2186
  • Type: Duplex
  • Voltage Rating: 125 V
  • Voltage Rating Description: 125 V

Certifications

  • EU RoHS Indicator: No

Overview

UPC 78358506073

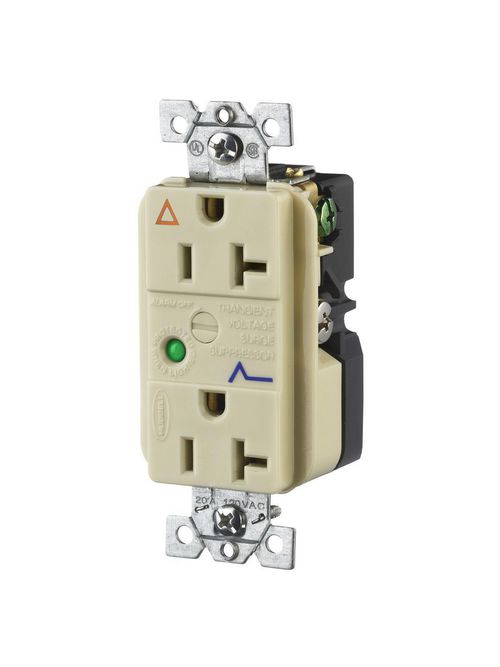

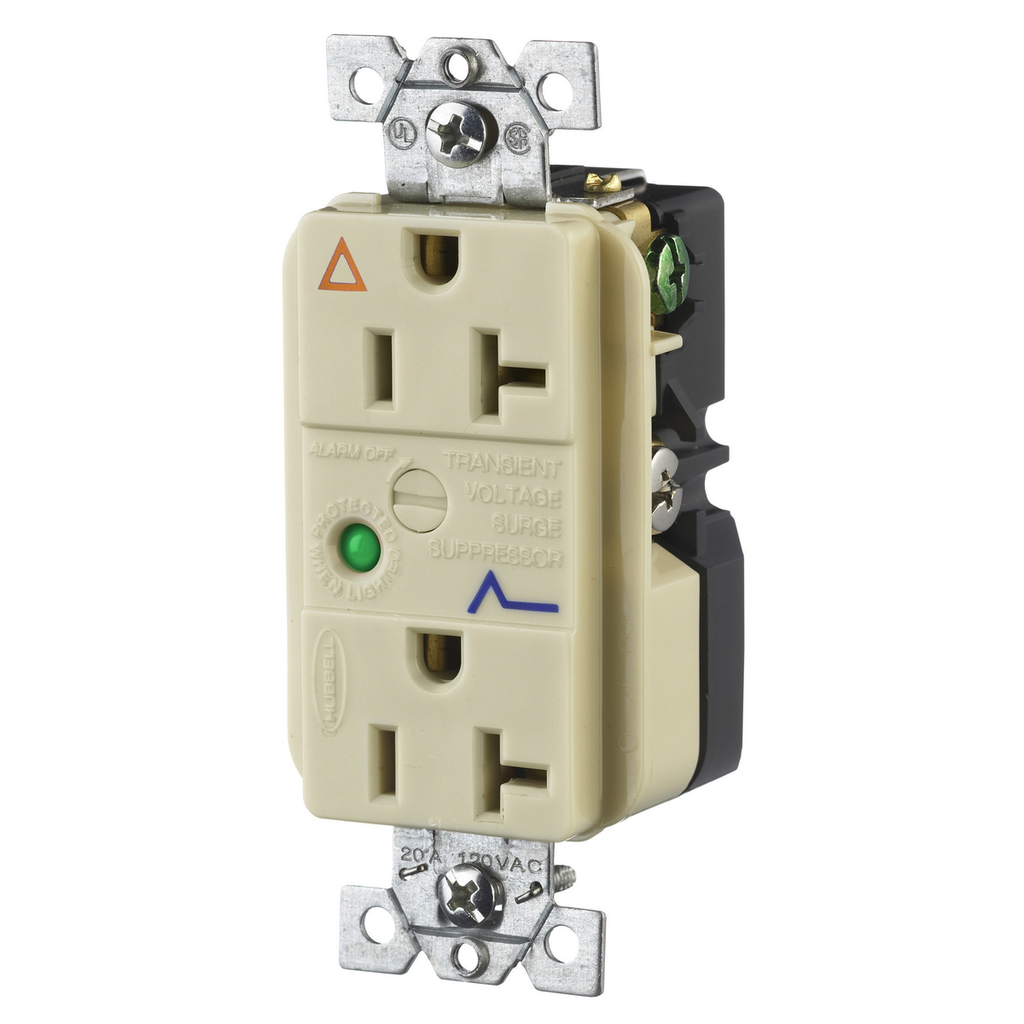

Item Long Description Surge Protective Devices, SPIKESHIELD IG TVSS Duplex Receptacle with Light and Alarm, 20A 125V, 5-20R, Ivory
GTiN 00783585060736
Length 4.300 in
Width 2.300 in
Size Standard
Color Ivory
Operating Temperature 32 Deg F to 140 Deg F (0 Deg C to 60 Deg C)
Voltage 125 Volt
Type Duplex
Material Composite
Product Series Specification Grade
Applications Decorator Duplex with Light and Alarm
Height 1.700 in
Family Brand Name Hubbell Wiring Device Kellems
TC Connection Terminal Screws
Current 20 A
Response Time 5
Sub Brand SpikeShield
Standard C22.2 No. 42,CSA,File E2186,UL,UL Standards 498
Class Normal and Common Mode
Environmental Conditions Indoor Dry Unless Protected By Additional Means
