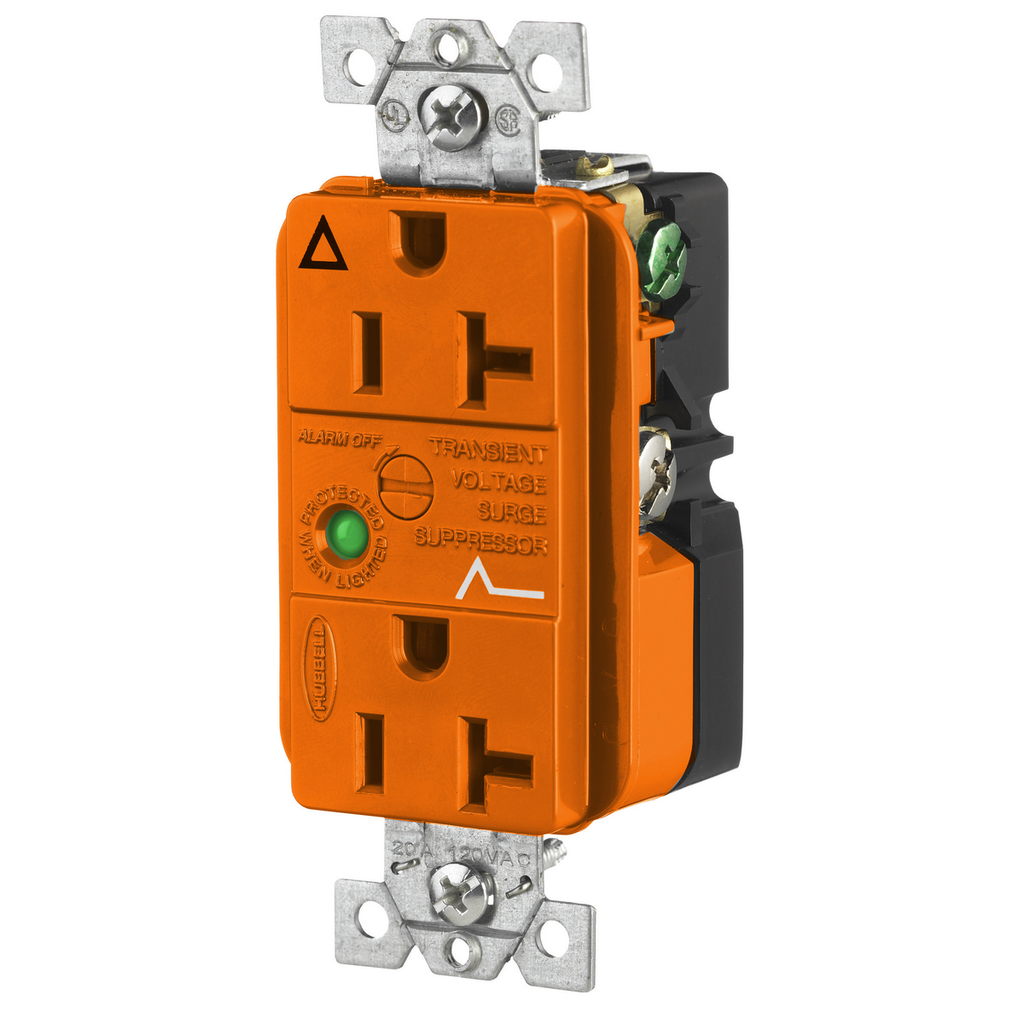

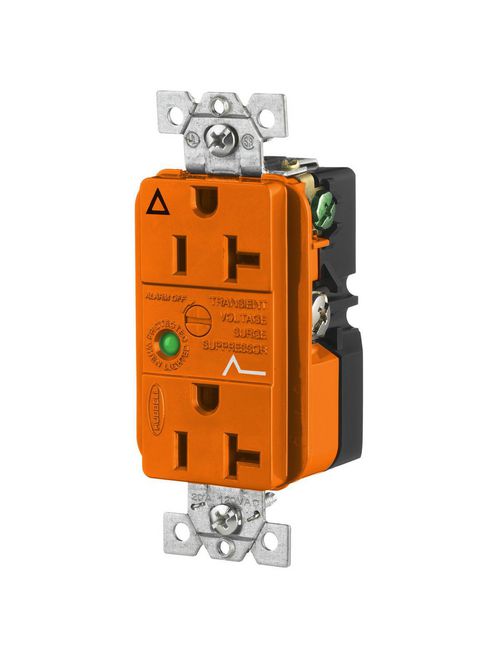

Hubbell Wiring Devices IG5362OSA 20 Amp 125 Volt 2-Pole 3-Wire NEMA 5-20R Orange Straight Blade Duplex Receptacle
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$130.93/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # IG5362OSA
North Coast Part # 159636

Features

  • Automatic self-grounding staple
  • Distinctive surge symbol provides quick identification
  • Power-on indicator light verifies that power is available
  • Alert alarm sounds when surge protection is no longer functioning
  • Isolated Ground

Specifications

  • Color: Orange
  • Country of Origin: CN
  • Current / Amperage Rating: 20 A
  • Each - Height: 1.800 in
  • Each - Length: 4.400 in
  • Each - Width: 2.200 in
  • Industry Standard(s): CSA Certified to Specification C22.2 No. 42;Listed to UL Standards 498;UL Listed File E2186
  • Performance: Electrical - Protection Modes - Normal and Common Modes;Electrical - Response Time - Approximately 5 ns;Electrical - Transient Suppression - Peak Energy (10 X 100 µs), Peak Current (8 X 20 µs);Electrical - Voltage - 120V AC + 10% - 15%;Environmental - Flammability - UL 94V-2;Environmental - Operating Temperature - 32°F to 140°F (0°C to 60°C)
  • Amperage Rating: 20 A
  • Application: Decorator Duplex with Light and Alarm
  • Environmental Conditions: Indoor Dry Unless Protected By Additional Means
  • Frequency Rating: 60 Hz
  • Operating Temperature: 32 Deg F to 140 Deg F (0 Deg C to 60 Deg C)
  • Outlet: Straight Blade
  • Phase: Single Phase
  • Response Time: 5
  • Special Features: Isolated Ground
  • Standard: CSA Certified to Specification C22.2 No. 42; Listed to UL Standards 498; UL Listed File E2186
  • Type: Duplex
  • Voltage Rating: 125 V
  • Voltage Rating Description: 125 V

Certifications

  • EU RoHS Indicator: No

Overview

GTiN 00783585060750
Length 4.4 Inch
Width 2.200 in
Size Standard
Color Orange
Operating Temperature 32 Deg F to 140 Deg F (0 Deg C to 60 Deg C)
Voltage 125 Volt
Type Duplex
Material Composite
Product Series Specification Grade
Applications Decorator Duplex with Light and Alarm
Height 1.8 Inch
Family Brand Name Hubbell Wiring Device Kellems
TC Connection Terminal Screws
Current 20 A
Response Time 5
Sub Brand SpikeShield
Product UPC 78358506075
Standard C22.2 No. 42,CSA,File E2186,UL,UL Standards 498
Class Normal and Common Mode
Environmental Conditions Indoor Dry Unless Protected By Additional Means
Country of Origin China
