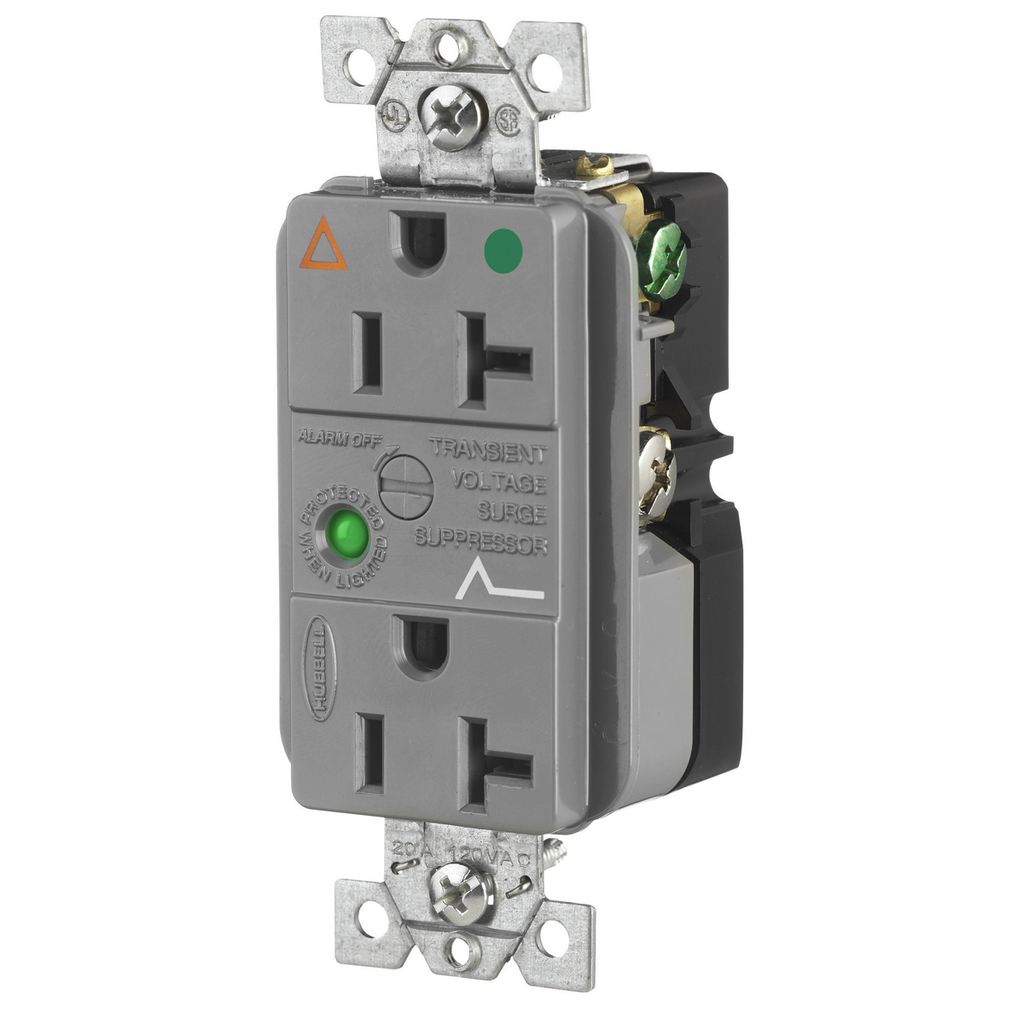

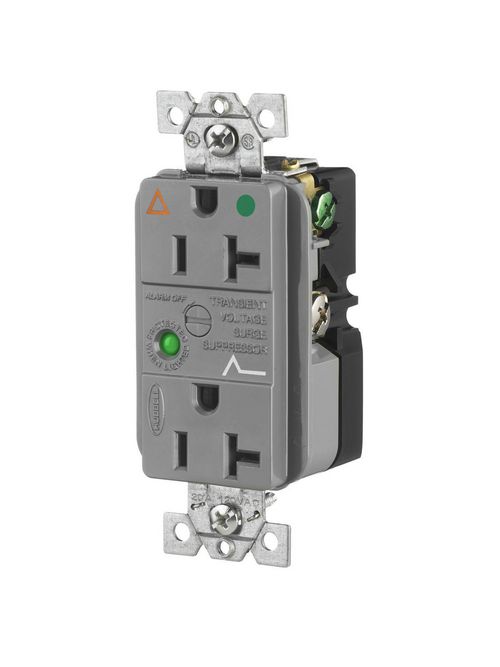

HWDK IG8362GYSA DUP SPD RCPT, IG, H
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$137.15/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # IG8362GYSA
North Coast Part # 70471

Features

  • High-impact nylon face resists breakage
  • Automatic grounding clip attached to bridge
  • Power-on indicator light verifies instantly that power is available
  • Distinctive surge symbol provides quick visual identification of surge suppression receptacle
  • Isolated Ground

Specifications

  • Color: Gray
  • Country of Origin: CN
  • Current / Amperage Rating: 20 A
  • Each - Height: 1.900 in
  • Each - Length: 4.100 in
  • Each - Width: 2.200 in
  • Industry Standard(s): CSA Certified to Specification C22.2 No. 42;Listed to UL Standards 498 Receptacles;UL Listed File E2186
  • Performance: Electrical - Frequency - 60Hz;Electrical - Protection Modes - Normal and Common Modes;Electrical - Response Time - Approximately 5 ns;Electrical - Transient Suppression - Peak Energy (10 X 100 µs) Peak Current (8 X 20 µs);Electrical - Voltage - 120V AC + 10% - 15%;Environmental - Flammability - UL 94V-2;Environmental - Operating Temperature - 32°F to 140°F (0°C to 60°C)
  • Show Add To ProjectList: Yes
  • Amperage Rating: 20 A
  • Application: Decorator Duplex with Light and Alarm
  • Environmental Conditions: Indoor Dry Unless Protected By Additional Means
  • Frequency Rating: 60 Hz
  • Operating Temperature: 32 Deg F to 140 Deg F (0 Deg C to 60 Deg C)
  • Outlet: Straight Blade
  • Phase: Single Phase
  • Response Time: 5
  • Special Features: Isolated Ground
  • Standard: CSA Certified to Specification C22.2 No. 42; Listed to UL Standards 498 Receptacles; UL Listed File E2186
  • Type: Duplex
  • Voltage Rating: 125 V
  • Voltage Rating Description: 125 V

Certifications

  • EU RoHS Indicator: No

Overview

UPC 78358596047
Item Long Description Hospital Grade Surge Suppression Receptacle, 20A 125V, 5-20R, Gray
GTiN 00783585960470
Length 4.100 in
Width 2.200 in
Size Standard
Color Gray
Operating Temperature 32 Deg F to 140 Deg F (0 Deg C to 60 Deg C)
Voltage 125 Volt
Type Duplex
Material Composite
Product Series Hospital Grade
Applications Decorator Duplex with Light and Alarm
Height 1.900 in
Family Brand Name Hubbell Wiring Device Kellems
TC Connection Terminal Screws
Current 20 A
Response Time 5
Sub Brand SpikeShield
Mounting Type Screw
Standard C22.2 No. 42,CSA,File E2186,UL,UL Standards 498 Receptacles
Temperature Rating 32 - 140 F
Grounding Isolated Ground
Number of Poles 2 Pole
Number of Wires 3
Class Normal and Common Mode
Environmental Conditions Indoor Dry Unless Protected By Additional Means
