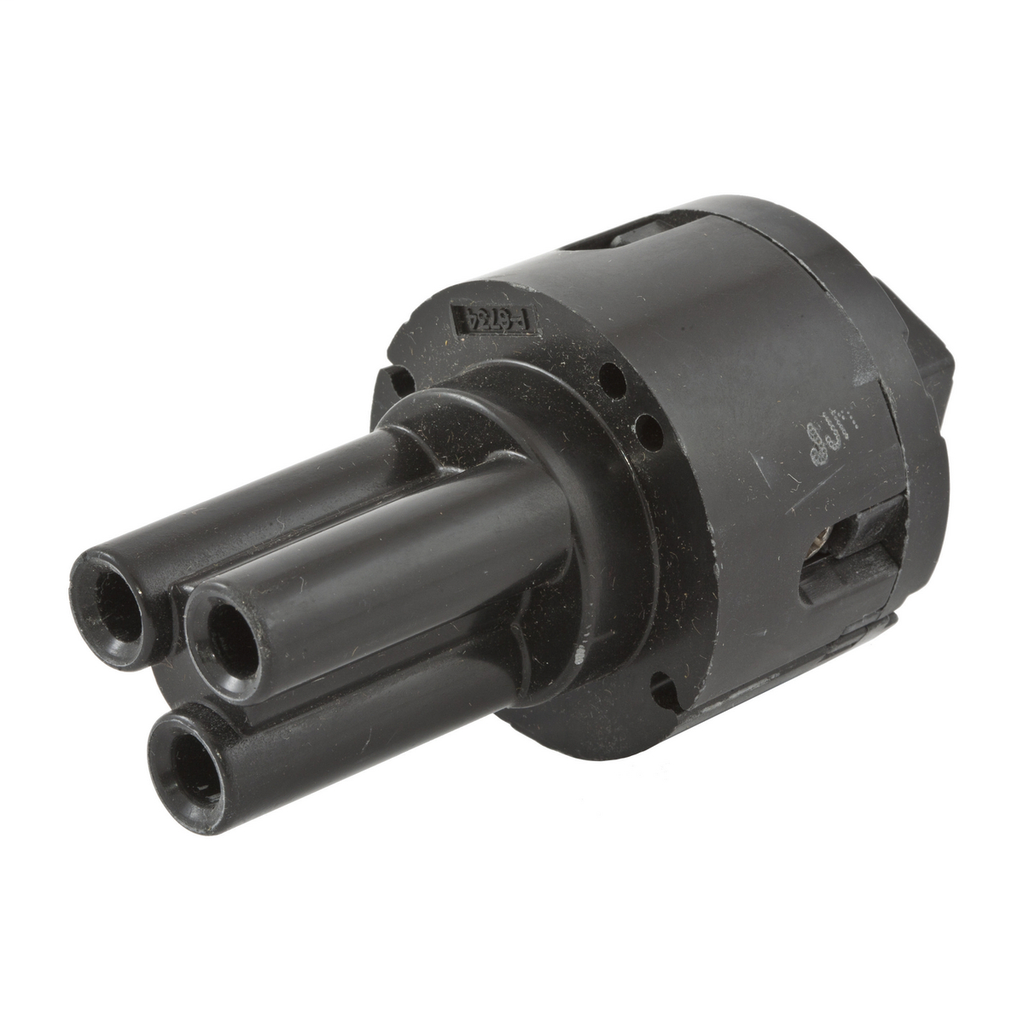

HCI IN430FS1 PS, INS, REPL, INTERIO

Features

• Thermoset polyester contact carrier
• Pin Chamber confines arcing within the interior
• Large, funneled terminal entrance holes

Specifications

General

• Environmental Conditions: Watertight When Installed
• Item Type: Replacement Interior
• Material: Thermoplastic
• Material - Mounting Hardware: Screw Mounting
• Number Of Poles: 3-Pole
• OEM Brand Name: Hubbell Wiring Device-Kellems
• Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current | Electrical - Dielectric Voltage - Withstands 3,000V AC | Electrical - Max Working Voltage - 600V AC RMS | Environmental - Flammability - UL94-5VA and V-0 classification | Environmental - Ingress Protection - IP67 Suitability | Environmental - Operating Temperatures - Maximum Continuous: 75° C | Minimum -40° C w/o impact | Mechanical - Impact Resistance - In accordance with UL746C | Mechanical - Product Identification - Identification and ratings are a part of the external label and molded into the receptacle mount | Mechanical - Terminal Identification - Terminals identified in accordance with North American and International conventions
• Series: Accessories
• Style: For Receptacles/Connectors,Style 1 Grounding
• Type: Replacment Interior
• UPC: 783585323916

Dimensions

• Display Size: Standard Sized Product

Electrical Ratings

• Amperage Rating: 30 A
• Connectivity: Pressure Terminal Screws
• Current / Amperage Rating: 30 A
• Voltage Rating: 600/250V AC/DC V
• Voltage Rating Description: 600/250V AC/DC

Conductor Related

• Number Of Wires: 4-Wire

Certifications and Compliance

• Industry Standard(s): UL Listed
• Nema Rating: Non-NEMA

Logistics

• Carton Quantity: 10
