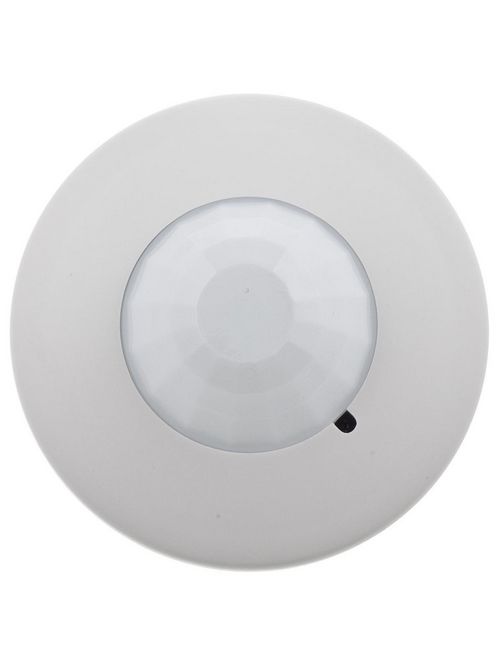

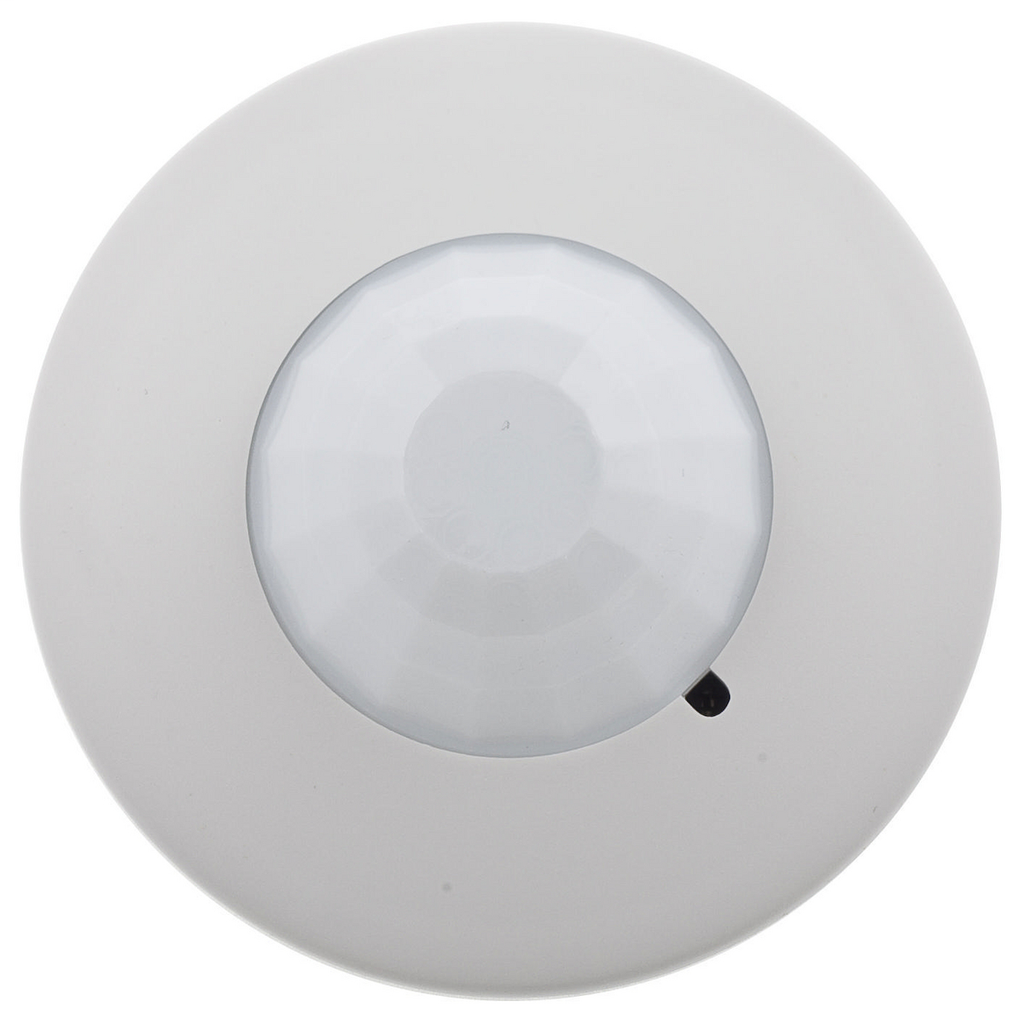

HCI LVPR1500R L VOLT PIR CEIL SEN 1
$165.06/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # LVPR1500R
North Coast Part # 543144

Features

  • Coverage 1500 sq. ft. (360°), line voltage sensor
  • Long range major motion detection in a compact low profile housing
  • Voltage 120-347V AC with photocell
  • Self-contained power supply with high load relay
  • Directly mounts to 4" octagon boxes, 2.125" deep
  • White ABS enclosure
  • Red LED indicates passive infrared detection

Specifications

General

  • Application: Compatible with most LED and CFL
  • Color: White
  • Control Output: Input Voltage
  • Environmental Conditions: Indoor Dry Unless Protected By Additional Means
  • Humidity: 0% to 95% non-condensing relative humidity
  • Indicator(s) Type: PIR= Red LED
  • Item Type: Low Profile Line Voltage Ceiling Sensors
  • Load Capacity: Incandescent- 800 Watts120V Ballast- 1000 Watts277V Ballast- 1800 Watts347V Ballast- 2200 Watts
  • Material: ABS (Acrylonitrile butance styrene - Thermoplastic polymer)
  • Material - Mounting Hardware: Screw Mounting
  • Mounting Type: Ceiling Mount
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Operating Cycles: 6,000 Cycles Minimum
  • Operating Temperature: 32 Deg F to 104 Deg F (0 Deg C to 40 Deg C)
  • Performance: Controls - Ambient Light - 1 to 1000 foot candles | Controls - Sensitivity - Manual, 0 to 100% | Controls - Time Delay - Manual 30 seconds to 30 minutes | Electrical - Load Rating - 800W Incandescent and 1000W Fluorescent @120V AC, 1800W Fluorescent @277V AC, 2200W Fluorescent @ 347V AC | Electrical - Power Supply - 120-347V AC, 50/60Hz Single Phase | Environmental - Operating Temperature - 32°F to 104°F (0°C to 40°C) with rate of change not exceeding 20°F (11°C) per hour | Environmental - Storage Temperature - -20°F to 150°F (-29°C to 65°C), 0% to 95% non-condensing relative humidity | Sensing Indicators - Passive Infrared - Red LED
  • Photocell: Yes
  • Series: Passive Infrared
  • Storage Temperature Range: -20°F to 150°F (-29°C to 65°C)
  • Style: Line Voltage
  • Type: Sensors
  • UPC: 783585181271

Dimensions

  • Diameter: 4.5 in
  • Height: 3.4 in
  • Mounting Height: 8-12 ft

Electrical Ratings

  • Frequency Rating: 50/60 Hz
  • Sensitivity: Adaptive 0 to 100%
  • Supply Voltage: 120-347V AC, 50/60Hz
  • Voltage Rating: 120-347 VAC
  • Voltage Rating Description: 120/347V AC

Certifications and Compliance

  • Industry Standard(s): cULus Listed To UL244A

Logistics

  • Carton Quantity: 10

Overview

UPC 78358518127
GTiN 00783585181271
Length 5.000 in
Width 4.800 in
Color White
Operating Temperature 32 Deg F to 104 Deg F (0 Deg C to 40 Deg C)
Voltage 120-347 Volt
Type Low Voltage, Adjustable Sensitivity, Presence Detector
Material Plastic
Product Series Passive Infrared
Applications Ceiling Mount
Height 3.4 in
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 10
Sensing Range 8 to 12 Feet Mounting Height
Indicator PIR= Red LED
Operating Cycles 6k
Sub Brand H-Moss
Mounting Type Ceiling, Wall, Screw
Standard UL244A,CULus
Temperature Rating 0 - 40 C
Lens Type LED
Response Time 30 min
Blade Dimensions 48 mm D
Sensor Type Adaptive Passive Infrared
