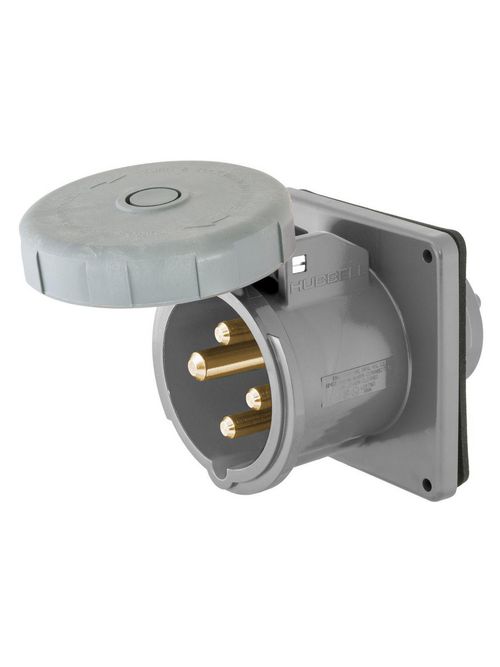

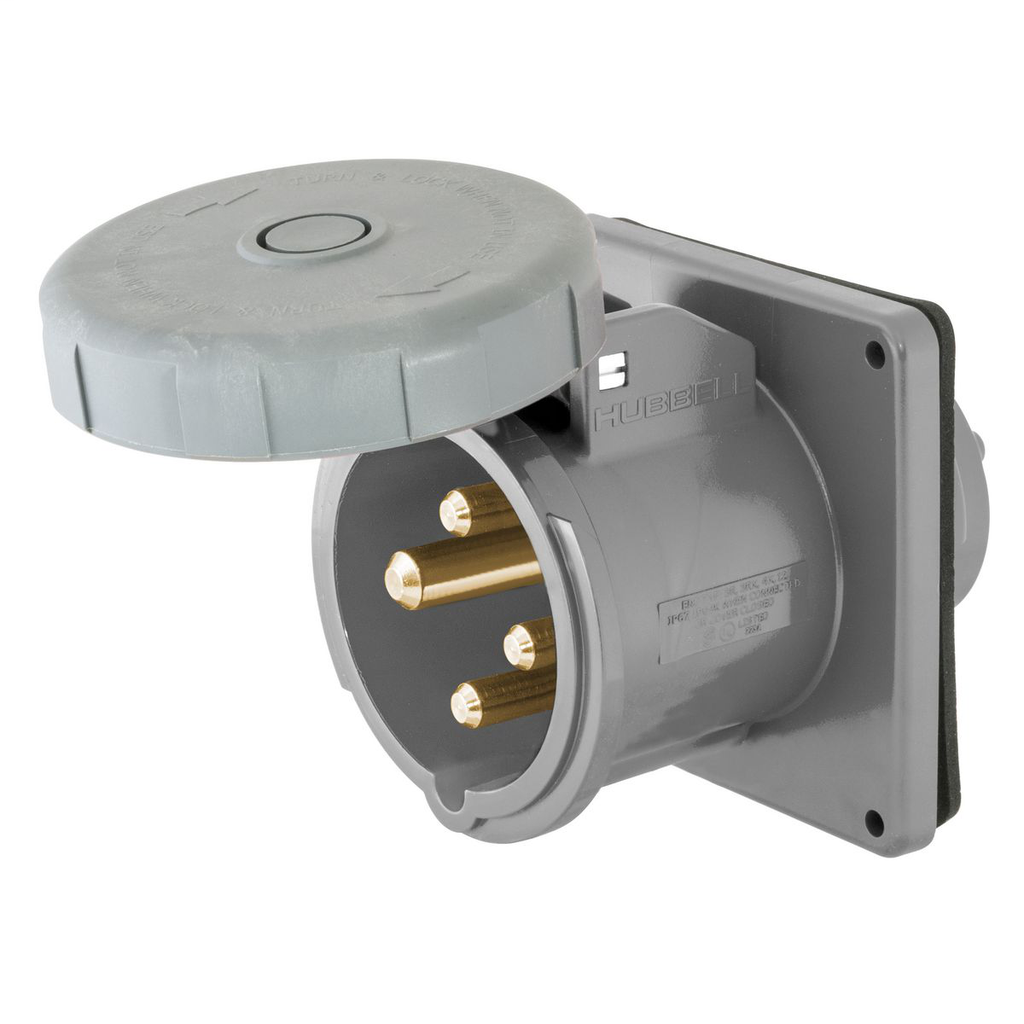

HCI M4100B12R MARINE PS INLET, 3P4W
Product image thumbnail 0
Product image thumbnail 1
$1,149.07/ea
In Stock | 1 available at 1 location
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # M4100B12R
North Coast Part # 69426

Features

  • Solid one-piece pins for reliable electrical contact
  • Gasketed sealing ring provides watertight seal
  • Raised collar surrounds each phase pin

Specifications

General

  • Application: Marine Wiring Devices
  • Color: Gray
  • Environmental Conditions: Watertight
  • Insulation: Insulated Body
  • Item Type: Hull Mount Single
  • Material: Thermoplastic
  • Material - Mounting Hardware: Screw Mounting
  • Number Of Poles: 3-Pole
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current | Electrical - Dielectric Voltage - Withstand 3000V AC | Electrical - Max. Working Voltage - 600V RMS | Environmental - Flammability - HB or better per UL 94 or CSA C22.2 No. 0.17 | Environmental - Ingress Protection - IP67 Suitability | Environmental - Moisture Resistance - Watertight per IEC 60309-1 | Environmental - Operating Temperatures - Maximum Continuous 75°C | Minimum - 40°C w/o impact | Mechanical - Impact Resistance - Per CSA C22.2 No. 182.1 / UL1682 | Mechanical - Product Identification - Ratings are a permanent part of the device housing | Mechanical - Terminal Identification - Terminals identified in accordance with North American and IEC conventions
  • Series: Corrosion Resistant
  • Style: Reverse Service
  • Temperature Rating: Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact
  • Type: Watertight Inlet
  • UPC: 783585410012

Dimensions

  • Display Size: Standard Sized Product

Electrical Ratings

  • Amperage Rating: 100 A
  • Connectivity: Pressure Terminal Screws
  • Current / Amperage Rating: 100 A
  • Current Rating: 100 A
  • Dielectric Strength: Withstands 3000V Minimum in
  • Phase: Single Phase
  • Voltage Rating: 125/250 VAC
  • Voltage Rating Description: 125/250 VAC
  • Wattage: 25000

Conductor Related

  • Number Of Wires: 4-Wire
  • Wire Size: #3 AWG to #1/0 AWG

Certifications and Compliance

  • Industry Standard(s): CSA StandardC22.2 No. 182.1 | UL Classified to IEC 60309-1 IEC 60309-2 | UL Listed, File E146032

Logistics

  • Carton Quantity: 6

Overview

UPC 78358541001
GTiN 00783585410012
Length 7.000 in
Width 6.380 in
Size Standard Sized Product
Color Gray
Voltage 125 Volt
Type Hull Mount, Single
Material Thermoplastic
Product Series Corrosion Resistant
Applications Marine Wiring Devices
Height 5.750 in
Wire Size 3-0 AWG
Wattage 25,000 Watt
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 6
TC Connection Pressure Screw Terminals
Current 100 A
Number of Poles 3 Pole
Number of Wires 4
Sub Brand Pin and Sleeve Inlets
Conductor Size 3-1/0 AWG
Mounting Type Screw
Standard CSA StandardC22.2 No. 182.1,File E146032,IEC 60309-1 IEC 60309-2,UL
Temperature Rating Maximum Continuous: 75? C; Minimum Continuous: -40? C w/o impact
Dielectric Strength Withstands 3000V Minimum in
Environmental Conditions Watertight
