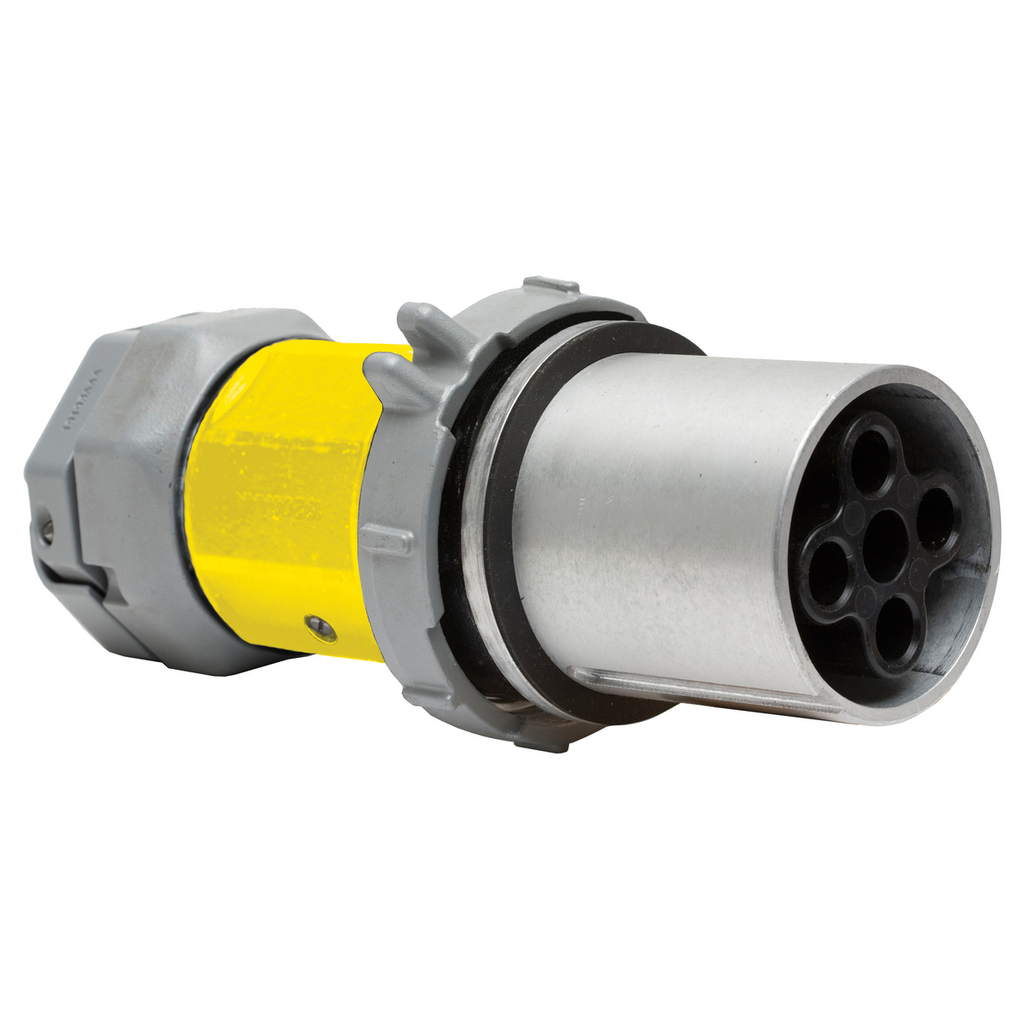

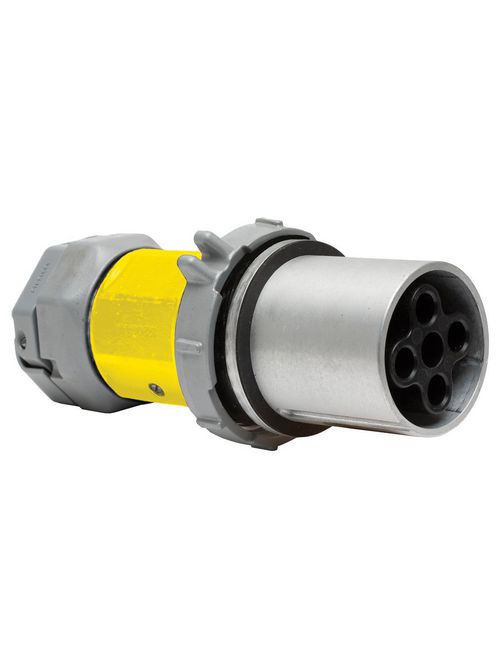

HCI M5200CS1R MARINE PS,INS,CONN,4P
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$1,939.33/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # M5200CS1R
North Coast Part # 670813

Features

  • Locking ring provides UL Type 4X watertight, dust-tight seal
  • Catalog number and rating visible while in use
  • All-Brass sleeve contacts provide reliable electrical contact
  • Reversed Service

Specifications

  • Country of Origin: US
  • Current / Amperage Rating: 200 A
  • Each - Height: 5.900 in
  • Each - Length: 15.800 in
  • Each - Width: 8.000 in
  • Industry Standard(s): CSA Certified to CSA Spec. C22.2 No. 159;UL Listed and CSA Certified Type 4X;UL Standard 1682,UL 50, and UL 1010
  • Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 3,000V AC;Electrical - Max. Working Voltage - 600V AC RMS;Environmental - Flammability (Enclosure) - UL 94V-0 and CSA C22.2 No. 0.17;Environmental - Moisture Resistance - Type 3, 4, 4X per UL 50E and CSA 22.2, No. 94;Environmental - Operating Temperatures - Max. Continuous 75°C;Min. -40°C w/o impact -25° with impact;Mechanical - Impact Resistance - Per CSA C22.2, No. 182.1, UL 1682;Mechanical - Product Identification - Identification and ratings are permanently fastened to the device housing;Mechanical - Terminal Identification - Terminals identified in accordance with UL 1686(1, 2, 3, Green)
  • Show Add To ProjectList: Yes
  • Amperage Rating: 200 A
  • Application: Metallic with Nylon Shroud
  • Conductor Range: #1 AWG to #250 MCM
  • Environmental Conditions: Watertight
  • Insulation: Insulated Body
  • NEMA Rating: Non-NEMA
  • Number of Conductors: 5-Wire Grounding
  • Number of Poles: 4-Pole
  • Special Features: Reversed Service
  • Standard: CSA Certified to CSA Spec. C22.2 No. 159; UL Listed and CSA Certified Type 4X; UL Standard 1682,UL 50, and UL 1010
  • Temperature Rating: Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
  • Type: Watertight Plug
  • Voltage Rating: 600 VAC/250 VDC
  • Voltage Rating Description: 600V AC/250V DC

Certifications

  • EU RoHS Indicator: Yes

Overview

UPC 78358516184
Item Long Description Heavy Duty Products, Insulgrip Pin and Sleeve Devices, Marine Grade, Female, Connector Body, 200A 600V AC, 4- Pole 5-Wire Grounding Style 1, Reversed Service, Gray
GTiN 00783585161846
Length 15.800 in
Width 8.000 in
Size Standard
Color Black/Gray
Voltage 600 Volt
Type Reversed Service, Standard
Material Composite
Number of Conductors 5-Wire Grounding
Product Series UL 1686 Class 1 Insulgrip
Applications Marine Wiring Devices
Height 5.900 in
Temperature Rating -25 to 75 C
Family Brand Name Hubbell Wiring Device Kellems
TC Connection Pressure Screw Terminal
Current 200 A
Number of Poles 4 Pole
Number of Wires 5
Sub Brand Pin and Sleeve
Conductor Size 1 AWG - 250 MCM
Mounting Type Cord
Standard CSA,CSA Spec. C22.2 No. 159,Type 4X,UL,UL 1010,UL 50,UL Standard 1682
Grounding Grounding
Environmental Conditions Watertight
