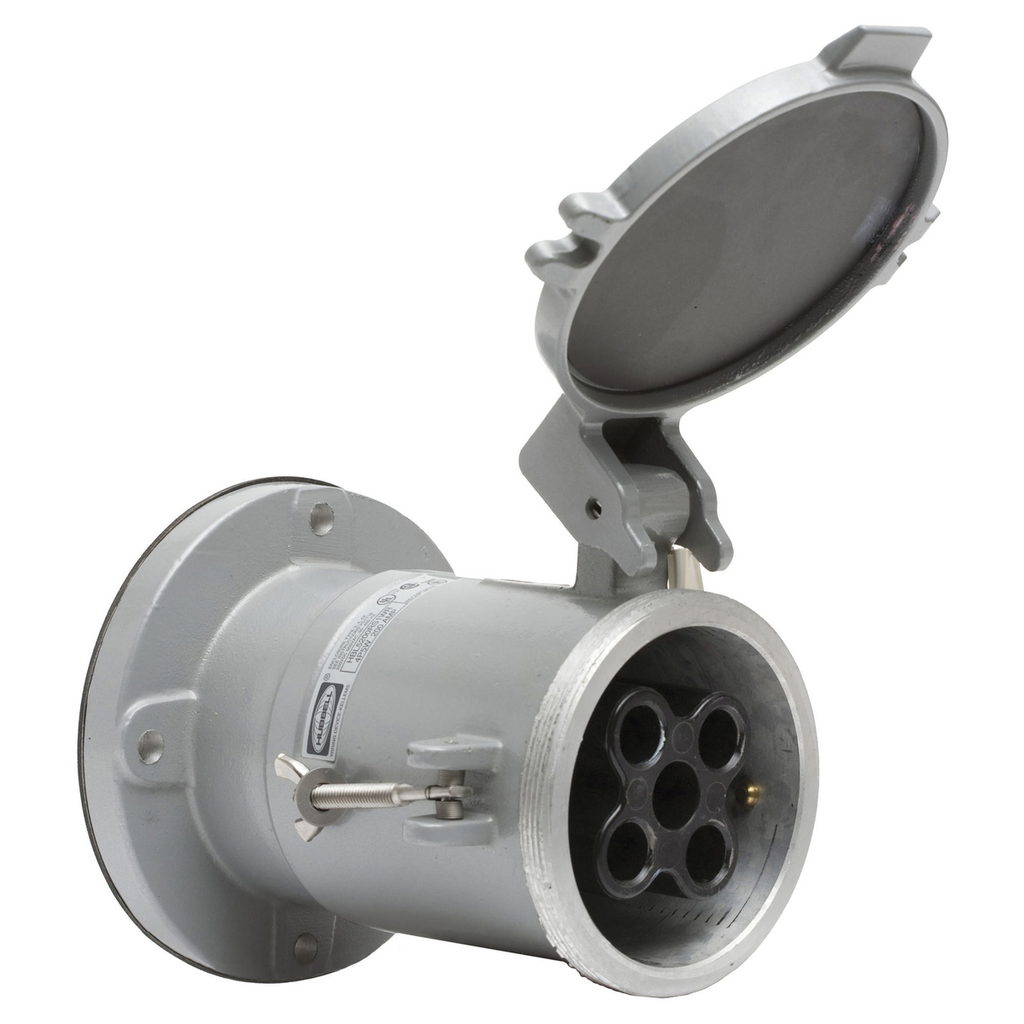

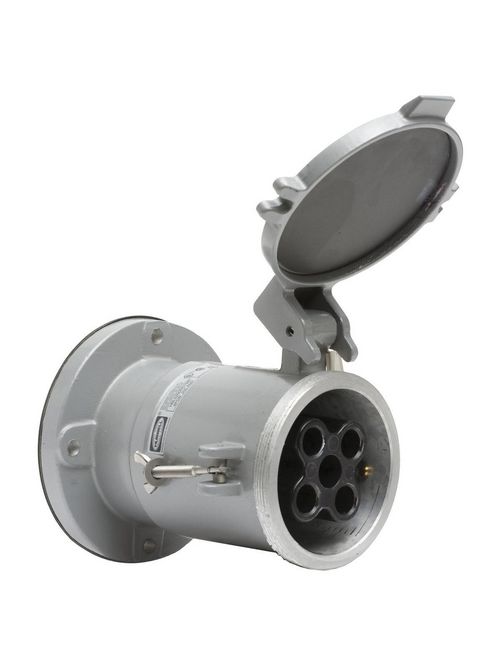

HCI M5200RS1 MARINE PS, INS, REPL,
Product image thumbnail 0
Product image thumbnail 1
$1,298.49/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # M5200RS1
North Coast Part # 679938

Features

  • Watertight neoprene sealing glands for reliable seal
  • Spring-Loaded, gasketed cover for dust-tight seal
  • Pin chamber confines arcing within the interior chamber

Specifications

General

  • Application: Metallic with Nylon Shroud
  • Environmental Conditions: Watertight
  • Item Type: Replacement Interior
  • Material: Thermoplastic
  • Material - Mounting Hardware: Screw Mounting
  • Number Of Poles: 4-Pole
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current | Electrical - Dielectric Voltage - Withstands 3,000V AC | Electrical - Max. Working Voltage - 600V AC RMS | Environmental - Flammability (Enclosure) - UL 94V-0 and CSA C22.2 No. 0.17 | Environmental - Moisture Resistance - Type 3, 4, 4X per UL 50E and CSA 22.2, No. 94 | Environmental - Operating Temperatures - Max. Continuous 75°C | Min. -40°C w/o impact -25° with impact | Mechanical - Impact Resistance - Per CSA C22.2, No. 182.1, UL 1682 | Mechanical - Product Identification - Identification and ratings are permanently fastened to the device housing | Mechanical - Terminal Identification - Terminals identified in accordance with UL 1686(1, 2, 3, Green)
  • Series: UL 1686 Class 1 Insulgrip®
  • Style: Standard Service,Corrosion Resistant
  • Type: Watertight Receptacle
  • UPC: 783585161839

Dimensions

  • Display Size: Standard Sized Product

Electrical Ratings

  • Amperage Rating: 200 A
  • Connectivity: Pressure Terminal Screws
  • Current / Amperage Rating: 200 A
  • Voltage Rating: 600 VAC/250 VDC
  • Voltage Rating Description: 600V AC/250V DC

Conductor Related

  • Number Of Wires: 5-Wire

Certifications and Compliance

  • Industry Standard(s): CSA Certified to CSA Spec. C22.2 No. 182.1 | UL Listed and CSA Certified Type 4X | UL Standard 1682
  • Nema Rating: Non-NEMA

Overview

UPC 78358516183
GTiN 00783585161839
Length 13.300 in
Width 9.400 in
Size Standard Sized Product
Color Black
Voltage 250 Volt
Type Watertight Receptacle
Material Thermoplastic
Product Series UL 1686 Class 1 Insulgrip
Applications Metallic with Nylon Shroud
Height 7.800 in
Family Brand Name Hubbell Wiring Device Kellems
TC Connection Pressure Screw Terminals
Current 200 A
Number of Poles 4 Pole
Number of Wires 5
Sub Brand Pin and Sleeve Devices
Standard CSA,CSA Spec. C22.2 No. 182.1,Type 4X,UL,UL Standard 1682
Environmental Conditions Watertight
