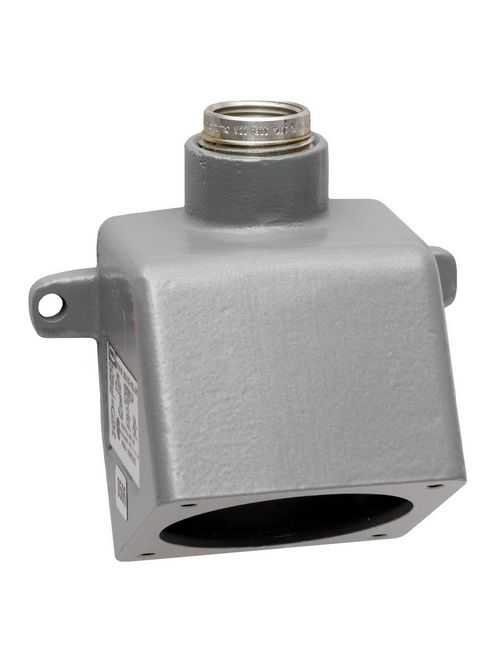

Hubbell Wiring Devices MB601W 1 Inch Metallic 15 Degrees Pin and Sleeve Back Box
Product image thumbnail 0
Product image thumbnail 1
$88.11/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # MB601W
North Coast Part # 71800

Specifications

General

  • Application: Metallic
  • Construction: Cast
  • Item Type: Mounting Box
  • Knockouts: 1" NPT Hub
  • Material: Aluminum
  • Material - Mounting Hardware: Mounting Screws
  • Number Of Outlets: Accepts 1-Device
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current | Electrical - Dielectric Voltage - Withstands 3,000V AC | Electrical - Max Working Voltage - 600V AC RMS | Environmental - Flammability - UL94-5VA and V-0 classification | Environmental - Operating Temperatures - Max. Continuous: 75° C | Min. Continuous: -40° C w/o impact | Mechanical - Impact Resistance - In accordance with UL746C | Mechanical - Product Identification - Identification and ratings are a part of the external label and molded into the receptacle mount | Mechanical - Terminal Identification - Terminals identified in accordance with North American and International conventions
  • Series: Back Boxes and Adapters
  • Style: 15 Degree
  • Temperature Range: Limited By Device
  • Type: Angled Back Box
  • UPC: 783585010724

Dimensions

  • Display Size: For 60 Amp Devices

Conductor Related

  • Cable Entry: Through Hub

Certifications and Compliance

  • Industry Standard(s): UL Listed

Overview

UPC 78358501072
GTiN 00783585010724
Length 75 mm
Width 96 mm
Size For 60 Amp Devices
Color Gray
Type Rectangular, 15 Angled, 1-Outlet, Standard
Material Cast Aluminum
Product Series Back Boxes And Adapters
Applications Metallic
Height 5.900 in
Family Brand Name Hubbell Wiring Device Kellems
Construction Cast
Cable Entry Through Hub, 1 in NPT Hub
Sub Brand Insulgrip
Mounting Type Screw
Depth 124 mm
Standard UL
Temperature Rating -40 to 75 C
Used With 60 A Devices
