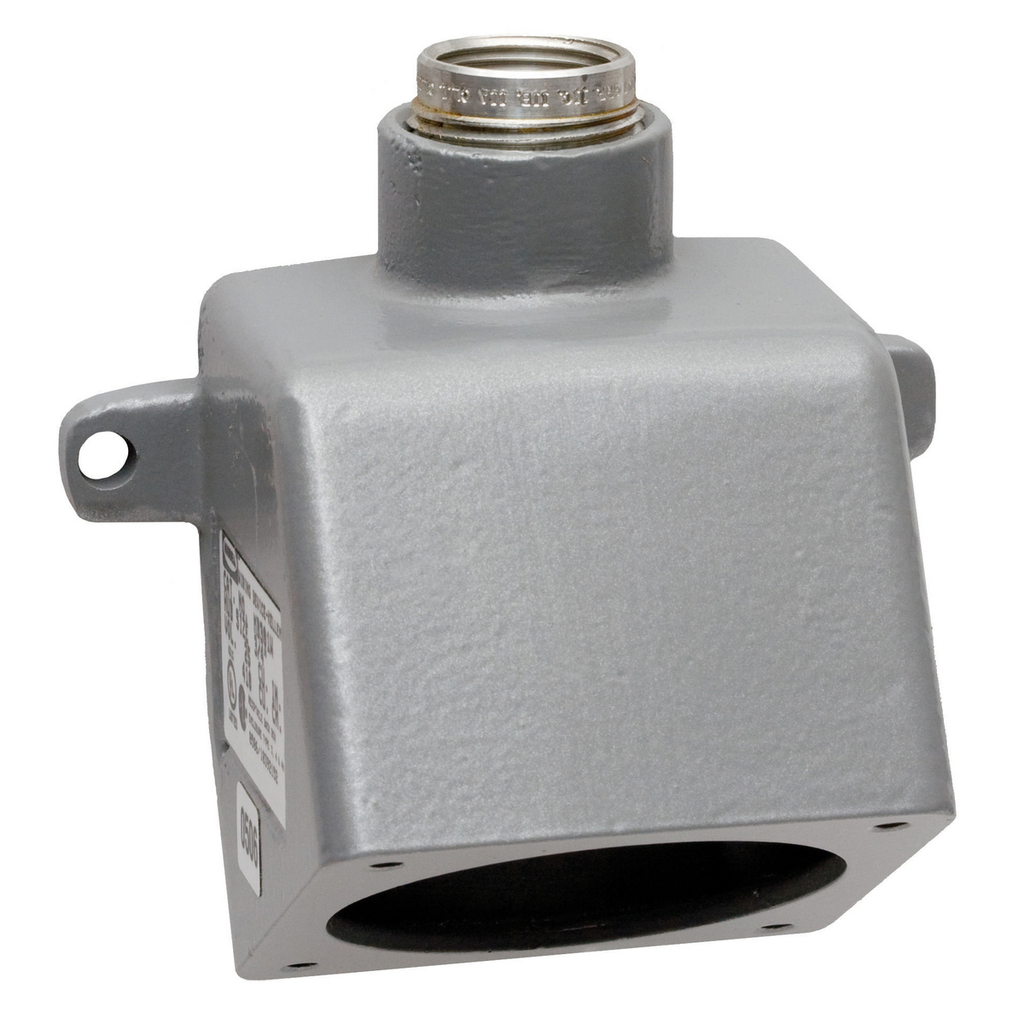

Hubbell Wiring Devices MB604W 1 Inch Metallic Feed-Through Pin and Sleeve Back Box
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$128.22/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # MB604W
North Coast Part # 72047

Features

  • Standard Product

Specifications

  • Country of Origin: CN
  • Each - Height: 5.800 in
  • Each - Length: 7.500 in
  • Each - Width: 6.600 in
  • Industry Standard(s): UL Listed
  • Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 3,000V AC;Electrical - Max Working Voltage - 600V AC RMS;Environmental - Flammability - UL94-5VA and V-0 classification;Environmental - Operating Temperatures - Max. Continuous: 75° C;Min. Continuous: -40° C w/o impact;Mechanical - Impact Resistance - In accordance with UL746C;Mechanical - Product Identification - Identification and ratings are a part of the external label and molded into the receptacle mount;Mechanical - Terminal Identification - Terminals identified in accordance with North American and International conventions
  • Show Add To ProjectList: Yes
  • Application: Metallic
  • Cable Entry: Through Hub
  • Knockouts: 1" NPT Hub
  • Number of Outlet: Accepts 1-Device
  • Special Features: Standard Product
  • Standard: UL Listed
  • Temperature Range: Limited By Device
  • Type: Feed-Thru Back Box

Certifications

  • EU RoHS Indicator: Yes

Overview

UPC 78358501078
Item Long Description Heavy Duty Products, Insulgrip Pin and Sleeve Devices, Industrial Grade, Accessories, Back Box, For 60A 1" NPT Hub, Feed Thru, Mounting ScrewsIncluded, Gray Cast Aluminum
GTiN 00783585010786
Length 7.500 in
Width 6.600 in
Size For 60 Amp Devices
Color Gray
Type Feed-Thru Back Box
Material Aluminum
Product Series Back Boxes And Adapters
Applications Metallic
Height 5.800 in
Family Brand Name Hubbell Wiring Device Kellems
Construction Cast
Cable Entry Through Hub
Sub Brand Insulgrip Pin and Sleeve
Standard UL
