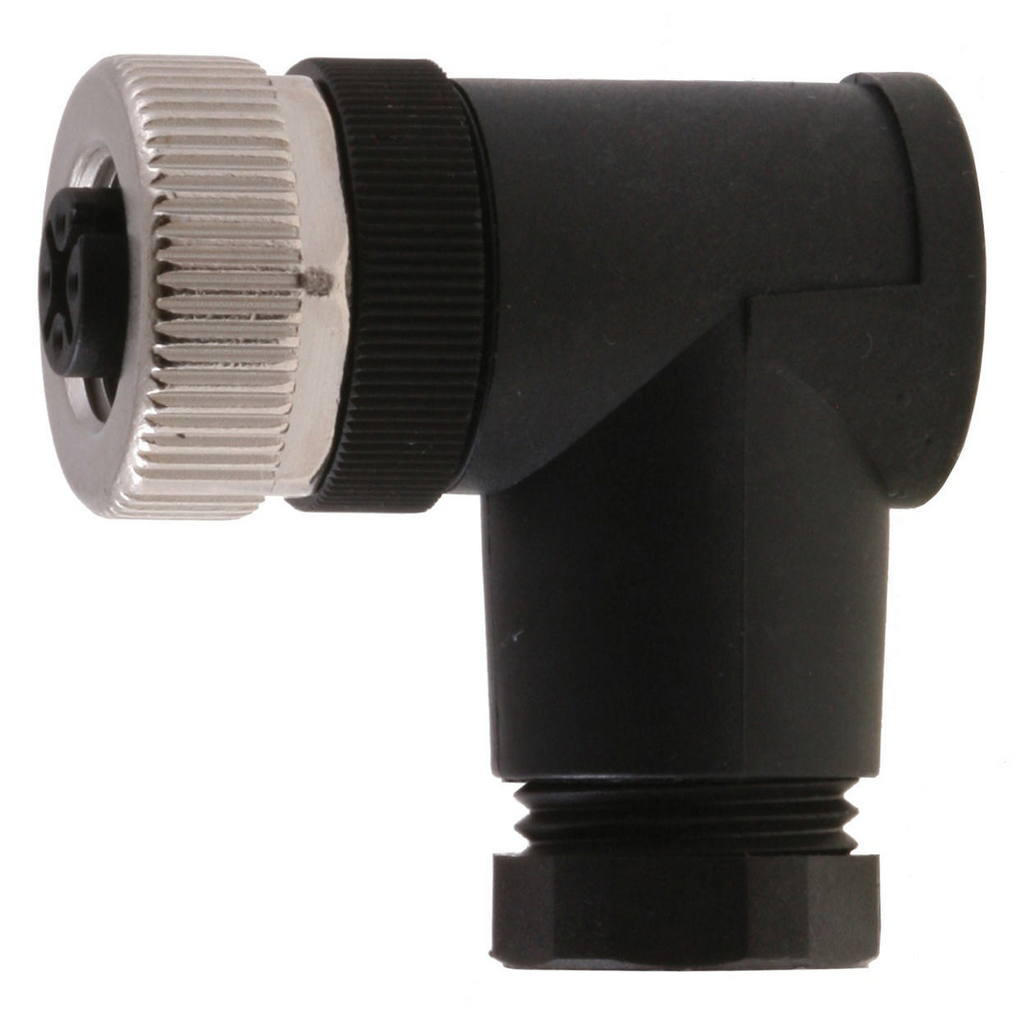

HWDK MCMA14F9 MICRO-QUICK FIELD ATT

Features

• Body with high impact design
• Strain relief protects terminations
• Precision wire funnels eliminate stray strands

Specifications

General

• Application: Quick Connect/Disconnect Signal and Control
• EU RoHS Indicator: No
• Environmental Conditions: IP67 Ingress Protection
• Item Type: Female Angle Plug
• Material - Coupling Nut: Aluminum
• Material - Insert: PUR/PA
• Material - O-Ring: Neoprene
• Material - Overmold: PBT
• Material - Shell: PBT
• OEM Brand Name: Hubbell Wiring Device-Kellems
• Operating Temperature: -40 Deg C to 85 Deg C
• Performance: Electrical - Amperage - 4A | Electrical - Maximum Wire Size - #18 AWG | Electrical - Voltage Rating - 250V | Environmental - Moisture Resistance - IP66 Suitability | Environmental - Operating Temperature - -40°C to 90°C
• Thread Size: Non-Threaded
• UPC: 783585192444

Electrical Ratings

• Amperage Rating: 9 A
• Current / Amperage Rating: 9 A
• Current Rating: 9 A
• Voltage Rating: 250V kV

Conductor Related

• Cable Size: .24"-.32"
• Cable Specification: UL Listed Portable Cord

Certifications and Compliance

• Industry Standard(s): CSA Certified, C22.2 No. 182.3 and CSA C22.2 No. 94.2-07 | UL 2238 and UL50E, File No. E192071

Logistics

• Carton Quantity: 30
