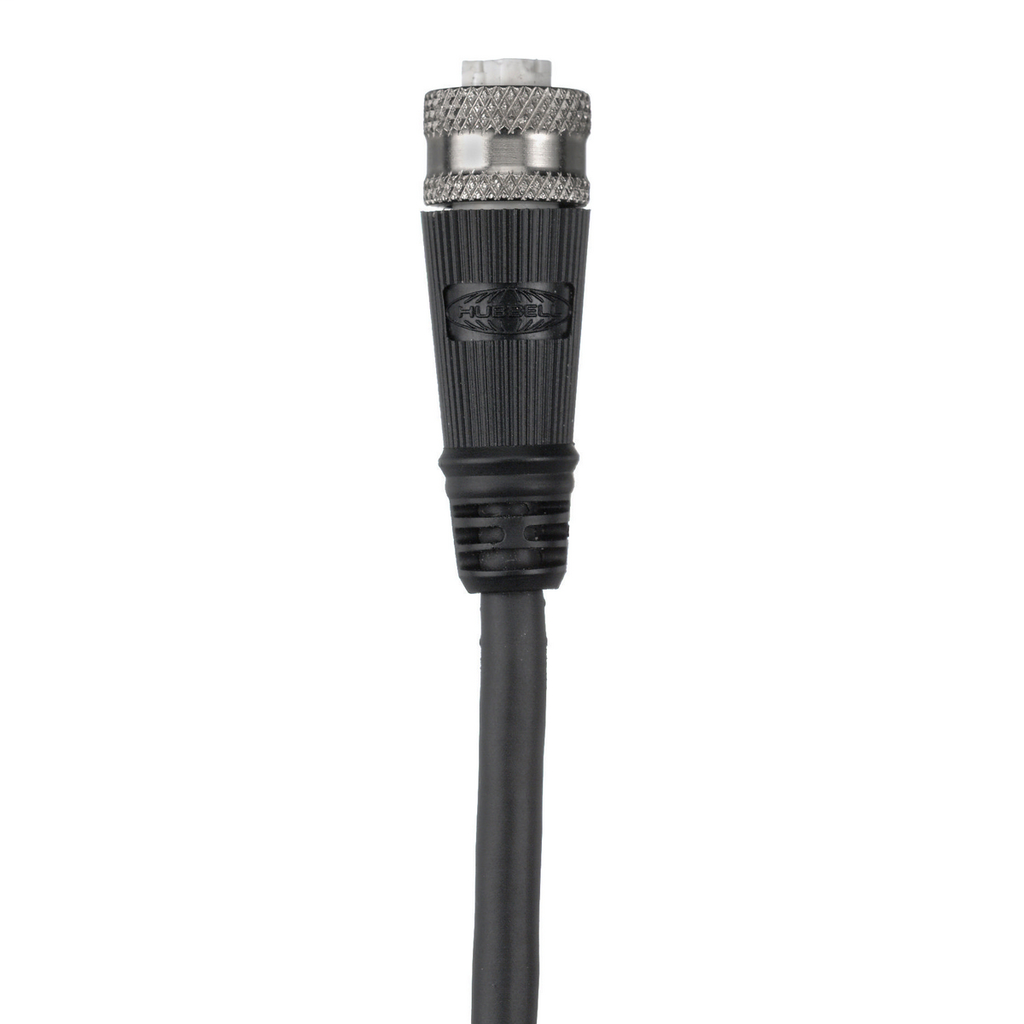

HWDK MCMS2315 MCQK, FEM STR PLG, ME
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$87.16/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # MCMS2315
North Coast Part # 427887

Features

  • Black overmold and cable
  • Insulgrip connector body design
  • Beryllium copper socket contacts
  • Plating resists corrosion in high abuse environments
  • Dual Key

Specifications

  • Country of Origin: US
  • Each - Height: 1.200 in
  • Each - Length: 12.000 in
  • Each - Width: 12.000 in
  • Industry Standard(s): CSA Certified, C22.2 No. 182.3 and CSA C22.2 No. 94.2-07;UL 2238 and UL50E, File No. E192071
  • Performance: Electrical - Amperage - #22 AWG - 2&3P=5A, 4&5P=4A, 6P=3A;Electrical - Contact Resistance - Less than or Equal to 5 Milliohm;Electrical - Isolation Resistance - Greater than or Equal to 10 Megaohm;Electrical - Voltage Rating - 300V DC/300V AC;Environmental - Corrosion Resistance - 500 hours salt spray per MIL-STD-1344, Method 1001;Environmental - Ingress Protection - IP66 Suitability;Environmental - Moisture Protection - UL Type 4, 4X, 12 and 13;Environmental - Operating Temperature - #22 AWG PVC cable: -20°C to 105° C;Environmental - Vibration Resistance - 10 - 2,000 Hz @15g per MIL-STD-1344, Method 2005
  • Show Add To ProjectList: Yes
  • Application: Quick Connect/Disconnect Signal and Control
  • Color: Black
  • Number of Conductors: 3-Pole
  • Special Features: Dual Key
  • Standard: CSA Certified, C22.2 No. 182.3 and CSA C22.2 No. 94.2-07; UL 2238 and UL50E, File No. E192071

Certifications

  • EU RoHS Indicator: Yes

Overview

UPC 78358522506
Item Long Description Micro-Quick Control Connectors, Female Plug, 3P, Dual Key, 5M
GTiN 00783585225067
Length 2 m
Width 12.000 in
Color Black
Type Female Straight Plug
Diameter .59"
Number of Conductors 3-Pole
Applications Quick Connect/Disconnect Signal and Control
Height 1.200 in
Temperature Rating -20 to 105 C
Family Brand Name Hubbell Wiring Device Kellems
Conductor Material Copper
Sub Brand Micro-Quick
Material PVC
Connector Type Female Straight (Plug)
Standard C22.2 No. 182.3,CSA,CSA C22.2 No. 94.2-07,File No. E192071,UL 2238,UL50E
Connector Material Copper
Cable Length 2 m
Number of Poles 3 Pole
