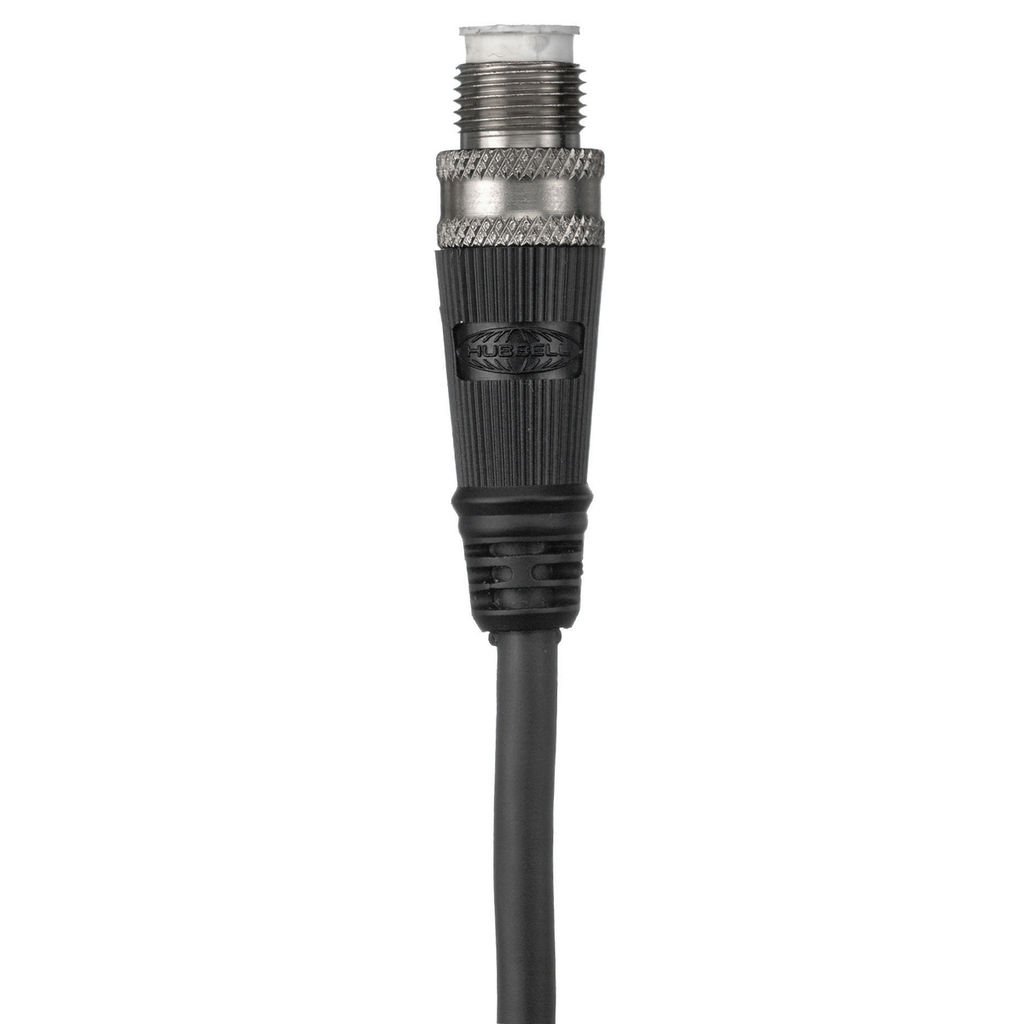

HCI MIMS1515 MCQK,MALE STR INL PLG,
$116.13/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # MIMS1515
North Coast Part # 272057

Features

  • Black overmold and cable
  • Insulgrip connector body design
  • Beryllium copper socket contacts
  • Plating resists corrosion in high abuse environments

Specifications

General

  • Application: Quick Connect/Disconnect Signal and Control
  • Color: Black
  • EU RoHS Indicator: Yes
  • Insulation: PVC
  • Item Type: Male Straight In-Line Plug
  • Jacket: PVC
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Performance: Electrical - Amperage - #22 AWG - 2&3P=5A, 4&5P=4A, 6P=3A | Electrical - Contact Resistance - Less than or Equal to 5 Milliohm | Electrical - Isolation Resistance - Greater than or Equal to 10 Megaohm | Electrical - Voltage Rating - 300V DC/300V AC | Environmental - Corrosion Resistance - 500 hours salt spray per MIL-STD-1344, Method 1001 | Environmental - Ingress Protection - IP66 Suitability | Environmental - Moisture Protection - UL Type 4, 4X, 12 and 13 | Environmental - Operating Temperature - #22 AWG PVC cable: -20°C to 105° C | Environmental - Vibration Resistance - 10 - 2,000 Hz @15g per MIL-STD-1344, Method 2005
  • Temperature Rating: -20 Deg C to 105 Deg C
  • UPC: 783585831640

Dimensions

  • Diameter Live Part: .59"
  • Length: 196.85 in

Conductor Related

  • Conductor Type: Copper
  • Number Of Conductors: 5-Pole

Certifications and Compliance

  • Industry Standard(s): CSA Certified, C22.2 No. 182.3 and CSA C22.2 No. 94.2-07 | UL 2238 and UL50E, File No. E192071

Logistics

  • Carton Quantity: 10 EA

Overview

UPC 78358583164
GTiN 00783585831640
Length 196.85 in
Width 12.000 in
Color Black
Type Male Straight In-Line Plug
Diameter .59"
Number of Conductors 5-Pole
Applications Quick Connect/Disconnect Signal and Control
Height 1.900 in
Temperature Rating -20 to 105 C
Family Brand Name Hubbell Wiring Device Kellems
Conductor Material Copper
Carton Qty 10
Sub Brand Micro-Quick Signal and Control Devices
Standard File No. E192071,UL 2238,C22.2 No. 182.3,UL50E,CSA C22.2 No. 94.2-07,CSA
