Usually ships within 6 to 8 Days
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # NHC1036ZP
North Coast Part # 152396

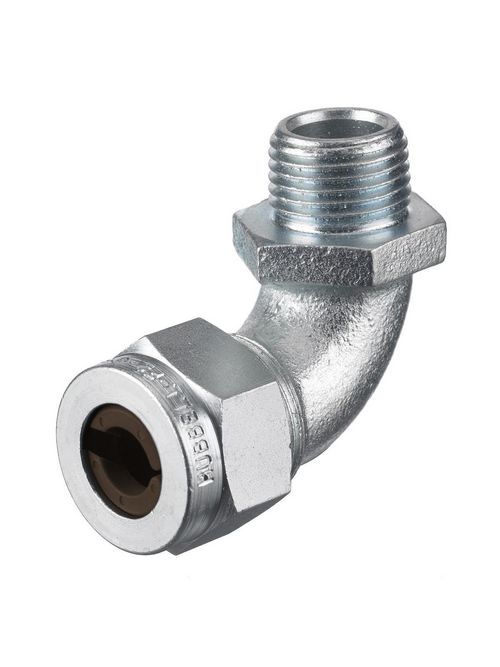

  • Zinc-plated cord connector, one-piece design with machined threads
  • Lock nuts sold separately
  • Standard Product


  • Country of Origin: US
  • Each - Height: 3.000 in
  • Each - Length: 2.000 in
  • Each - Width: 1.500 in
  • Hub Size: 3/4"
  • Industry Standard(s): UL Listed
  • Performance: Environmental - Hazardous Locations - Used in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class Ill Div. 1 & 2 in accordance with the NEC.;Environmental - Operating Temperatures - -30°F to +225°F (-34°C to +107°C)
  • Application: 90 Degree Male- Form 3
  • Conductor Range: 0.5-0.63 in (12.7- 15.9 mm)
  • Environmental Conditions: Suitable For Use In Wet Locations When Used With A Listed Nylon Washer Between Box And Fitting.
  • NEMA Rating: NEMA Type 4, 4X, 12 and 13
  • Number of Conductors: Single
  • Special Features: Standard Product
  • Standard: UL Listed
  • Temperature Rating: Minimum -30 Deg F to 225 Deg F (-34 Deg C to 107 Deg C)
  • Type: 90° Male


  • EU RoHS Indicator: Yes


GTiN 00783585211367
Length 2 Inch
Finish Machined
Width 1.500 in
Size 3/4" NPT IN
Type 90, Male, Form 3
Material Steel
Number of Conductors Single
Conductor Size 0.5 - 0.63 in
Product Series Standard Duty
Applications 90 Degree Male- Form 3
Height 3 Inch
Trade Size 3/4 Inch
Temperature Rating -30 to 225 F
Family Brand Name Hubbell Wiring Device Kellems
TC Connection NPT
Used With Jacketed UL Listed Cable Only
Sub Brand Kellems Wire Management
Product UPC 78358521136
Standard UL
Color Metallic
Environmental Conditions Suitable For Use In Wet Locations When Used With A Listed Nylon Washer Between Box And Fitting.
Country of Origin USA
