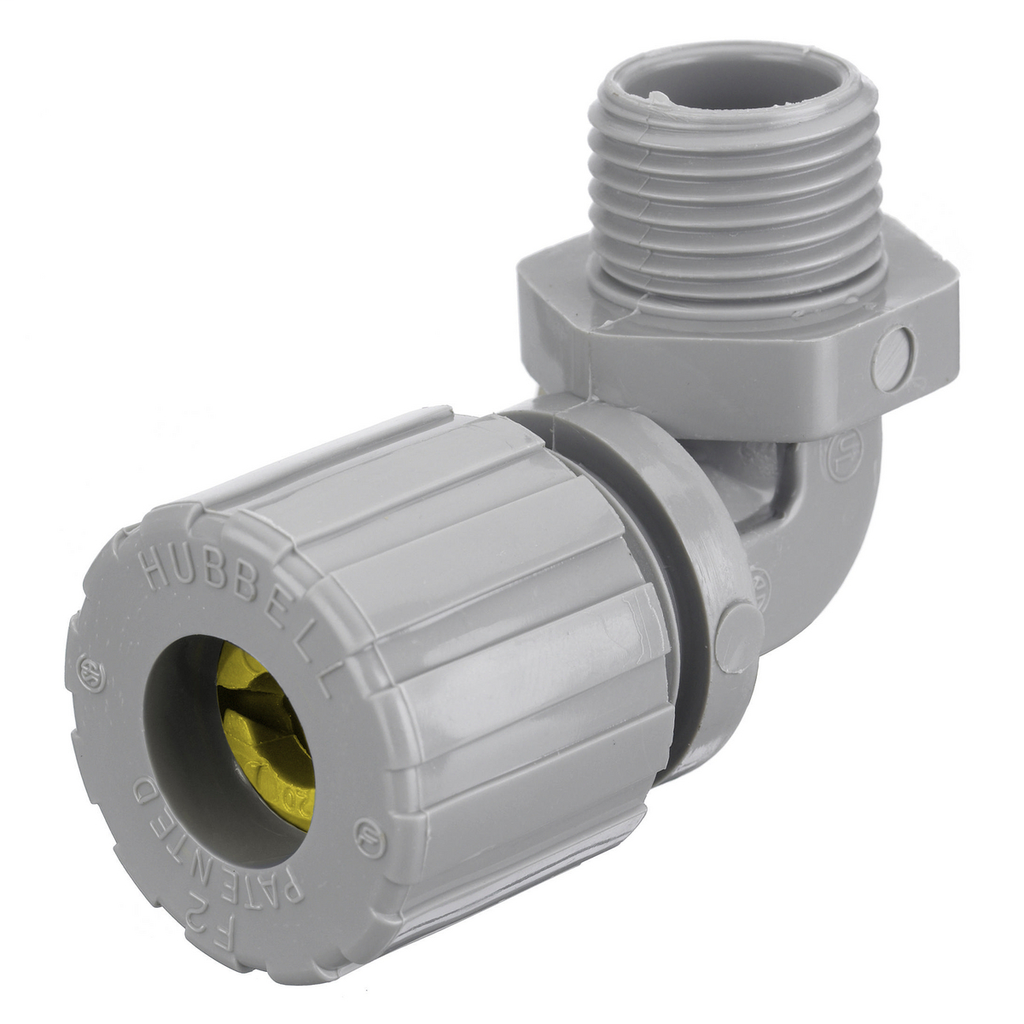

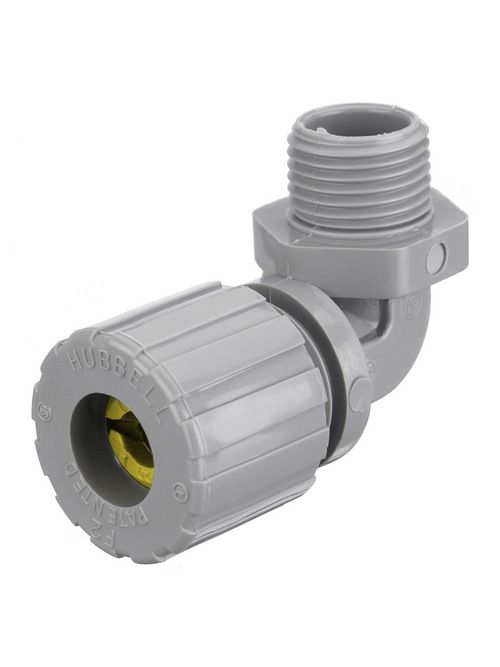

Hubbell Wiring Devices NHC1037CR 3/4 Inch Male Threaded 0.63 to 0.75 Inch Gray Nylon 90 Degrees Cord Connector
$21.52/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # NHC1037CR
North Coast Part # 151394

Features

  • Nylon cord connector resists corrosion
  • Connector body is a one-piece design with machined threads
  • Tapered interior seats the bushing evenly for a liquidtight seal

Specifications

General

  • Application: 90 Degree Male- Form 3
  • Color: Gray
  • Color Code: Yellow
  • Environmental Conditions: Suitable For Use In Wet Locations When Used With A Listed Nylon Washer Between Box And Fitting.
  • Item Type: Cord Connectors
  • Material: Nylon
  • Material - Mounting Hardware: Locknut or Tapped Opening
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Performance: Environmental - Hazardous Locations - Used in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class Ill Div. 1 & 2 in accordance with the NEC. | Environmental - Operating Temperatures - -30°F to +225°F (-34°C to +107°C)
  • Series: Standard Duty
  • Temperature Rating: Minimum -30 Deg F to 225 Deg F (-34 Deg C to 107 Deg C)
  • Type: 90° Male
  • UPC: 783585208794

Dimensions

  • Display Size: 3/4" NPT
  • Hub Size: 3/4"

Conductor Related

  • Conductor Range: 0.63- 0.75 in (15.9- 19.0 mm)
  • Number Of Conductors: Single

Certifications and Compliance

  • Industry Standard(s): UL Listed
  • Nema Rating: NEMA Type 4, 4X, 12 and 13

Logistics

  • Carton Quantity: 15

Overview

UPC 78358520879
GTiN 00783585208794
Length 1.700 in
Finish Smooth
Width 1.400 in
Size 3/4" NPT
Color Gray
Type Standard, 90, Male, Form 3
Material Nylon
Number of Conductors Jacketed UL Listed Cable Only
Conductor Size 0.63 - 0.75 in
Product Series Standard Duty
Applications 90 Degree Male- Form 3
Cable Type Jacketed UL Listed Cable Only
Height 2.600 in
Temperature Rating -30 to 225 F
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 15
TC Connection 3/4 in NPT
Sub Brand Kellems Wire Management
Standard UL
