Manufacturer Hubbell / Kellems
Mfg Catalog # NHC1037ZP
North Coast Part # 153097

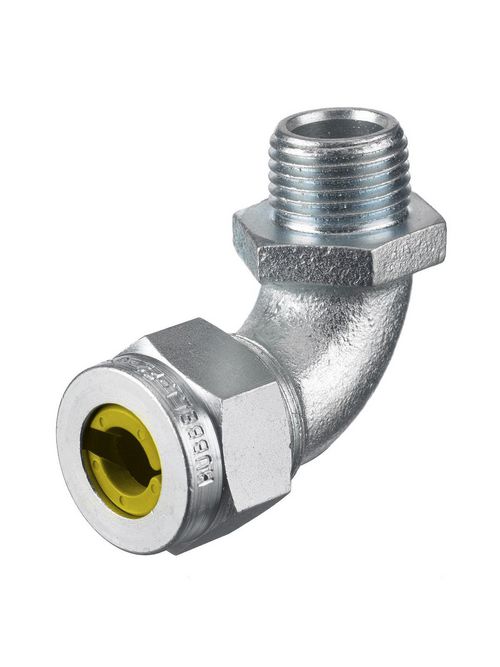

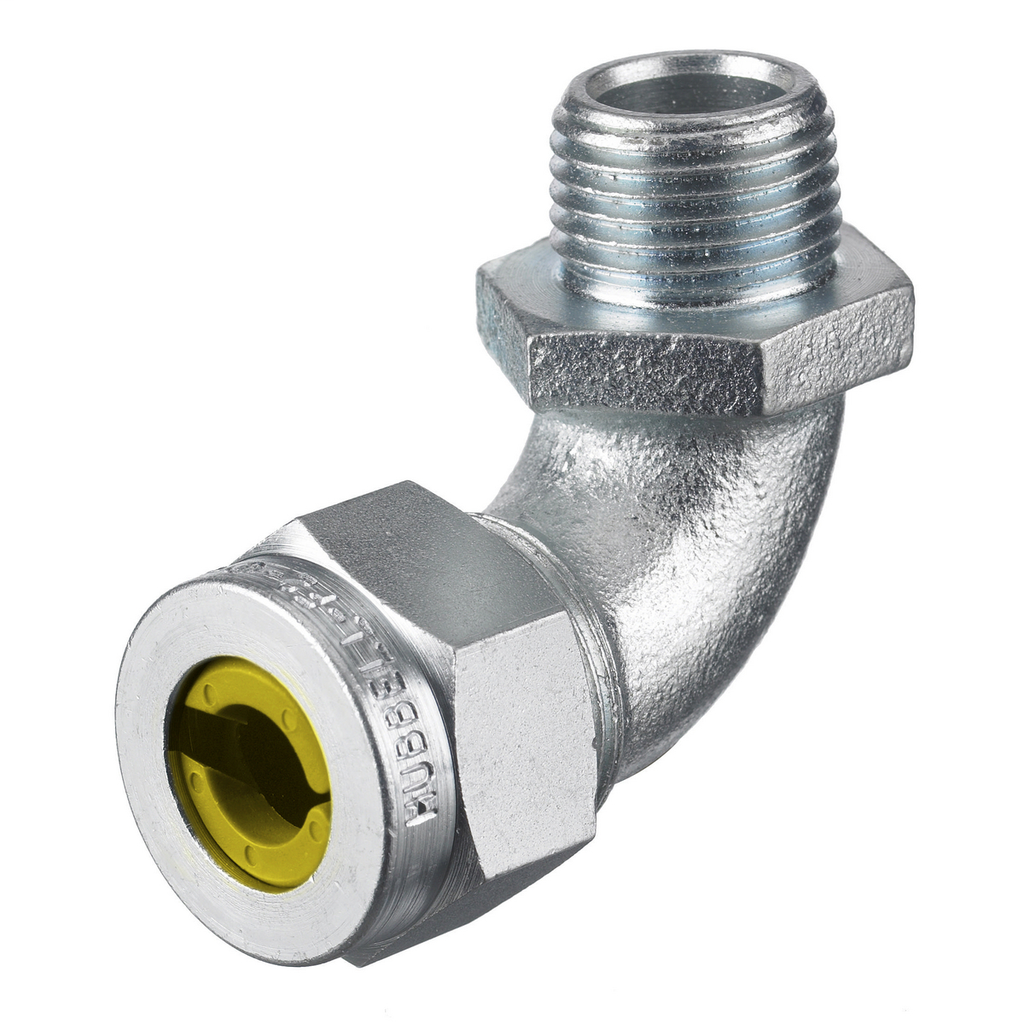

  • Zinc-plated cord connector, one-piece design with machined threads
  • Lock nuts sold separately
  • Standard Product


  • Country of Origin: US
  • Each - Height: 3.300 in
  • Each - Length: 2.100 in
  • Each - Width: 0.900 in
  • Hub Size: 3/4"
  • Industry Standard(s): UL Listed
  • Performance: Environmental - Hazardous Locations - Used in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class Ill Div. 1 & 2 in accordance with the NEC.;Environmental - Operating Temperatures - -30°F to +225°F (-34°C to +107°C)
  • Show Add To ProjectList: Yes
  • Application: 90 Degree Male- Form 3
  • Conductor Range: 0.63- 0.75 in (15.9- 19.0 mm)
  • Environmental Conditions: Suitable For Use In Wet Locations When Used With A Listed Nylon Washer Between Box And Fitting.
  • NEMA Rating: NEMA Type 4, 4X, 12 and 13
  • Number of Conductors: Single
  • Special Features: Standard Product
  • Standard: UL Listed
  • Temperature Rating: Minimum -30 Deg F to 225 Deg F (-34 Deg C to 107 Deg C)
  • Type: 90° Male


  • EU RoHS Indicator: Yes


UPC 78358521137
Item Long Description Kellems Wire Management, Cord Connectors, 90 Degree Male .63"-.75", 3/4", Steel
GTiN 00783585211374
Length 2.100 in
Finish Machined
Width 0.900 in
Size 3/4" NPT IN
Type 90, Male, Form 3
Material Steel
Number of Conductors Single
Product Series Standard Duty
Applications 90 Degree Male- Form 3
Height 3.300 in
Temperature Rating -30 to 225 F
Family Brand Name Hubbell Wiring Device Kellems
Sub Brand Kellems Wire Management
Conductor Size 0.63 - 0.75 in
Trade Size 3/4 Inch
Standard UL
TC Connection NPT
Used With Jacketed UL Listed Cables
Color Metallic
Environmental Conditions Suitable For Use In Wet Locations When Used With A Listed Nylon Washer Between Box And Fitting.
