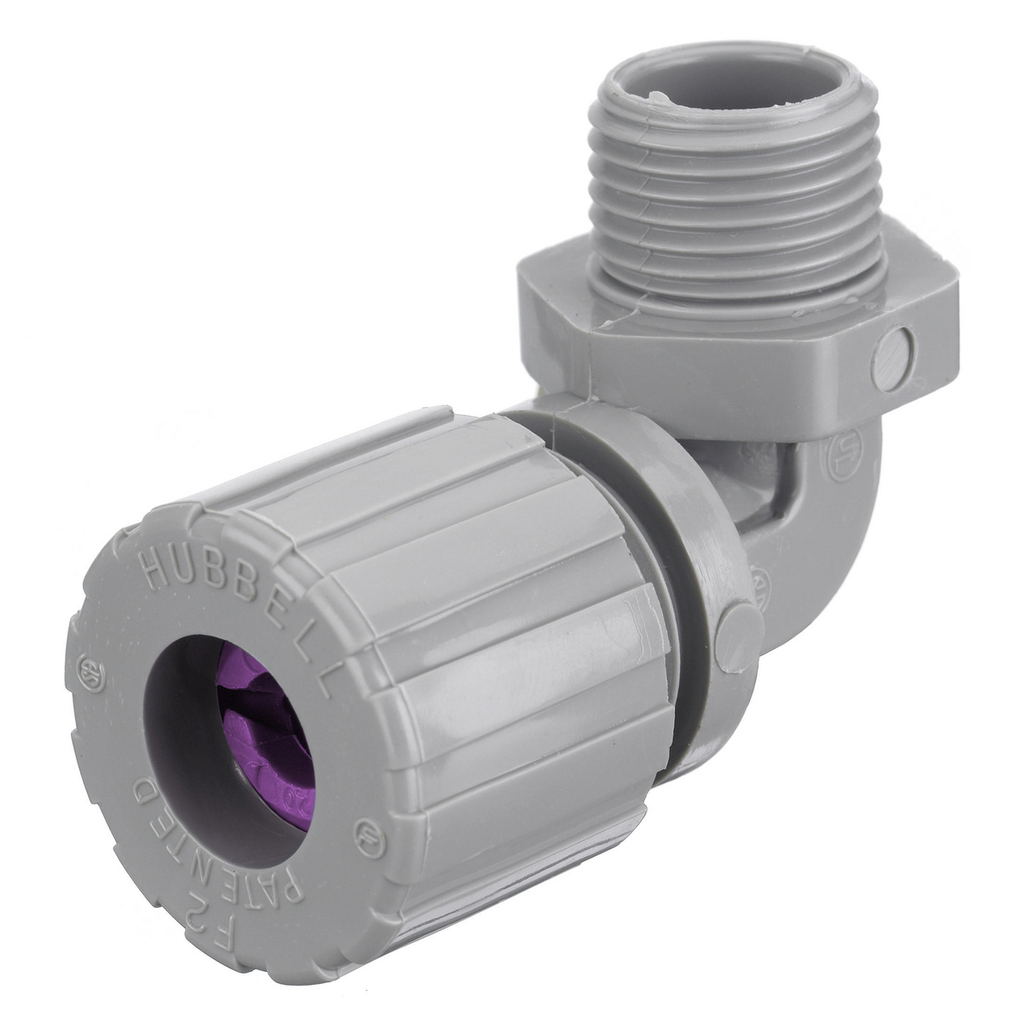

HCI NHC1038CR 90 MALE CORD CONN, .7
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$27.44/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # NHC1038CR
North Coast Part # 152166

Features

  • Nylon cord connector resists corrosion
  • Connector body is a one-piece design with machined threads
  • Tapered interior seats the bushing evenly for a liquidtight seal
  • Standard Product

Specifications

  • Country of Origin: US
  • Each - Height: 3.500 in
  • Each - Length: 2.000 in
  • Each - Width: 1.400 in
  • Hub Size: 3/4"
  • Industry Standard(s): UL Listed
  • Performance: Environmental - Hazardous Locations - Used in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class Ill Div. 1 & 2 in accordance with the NEC.;Environmental - Operating Temperatures - -30°F to +225°F (-34°C to +107°C)
  • Show Add To ProjectList: Yes
  • Application: 90 Degree Male- Form 3
  • Color: Gray
  • Conductor Range: 0.75- 0.88 in (19.0- 22.2 mm)
  • Environmental Conditions: Suitable For Use In Wet Locations When Used With A Listed Nylon Washer Between Box And Fitting.
  • NEMA Rating: NEMA Type 4, 4X, 12 and 13
  • Number of Conductors: Single
  • Special Features: Standard Product
  • Standard: UL Listed
  • Temperature Rating: Minimum -30 Deg F to 225 Deg F (-34 Deg C to 107 Deg C)
  • Type: 90° Male

Certifications

  • EU RoHS Indicator: Yes

Overview

UPC 78358520880
Item Long Description Kellems Wire Management, Cord Connectors, 90 Degree Male .75-.88", 3/4", Nylon
GTiN 00783585208800
Length 2.000 in
Finish Smooth
Width 1.400 in
Size 3/4" NPT IN
Color Gray
Type 90, Male, Form 3
Material Nylon
Number of Conductors Single
Conductor Size 0.75 - 0.88 in
Product Series Standard Duty
Applications 90 Degree Male- Form 3
Height 3.500 in
Trade Size 3/4 Inch
Temperature Rating -30 to 225 F
Family Brand Name Hubbell Wiring Device Kellems
TC Connection NPT
Used With Jacketed UL Listed Cable Only
Sub Brand Kellems Wire Management
Standard UL
Environmental Conditions Suitable For Use In Wet Locations When Used With A Listed Nylon Washer Between Box And Fitting.
