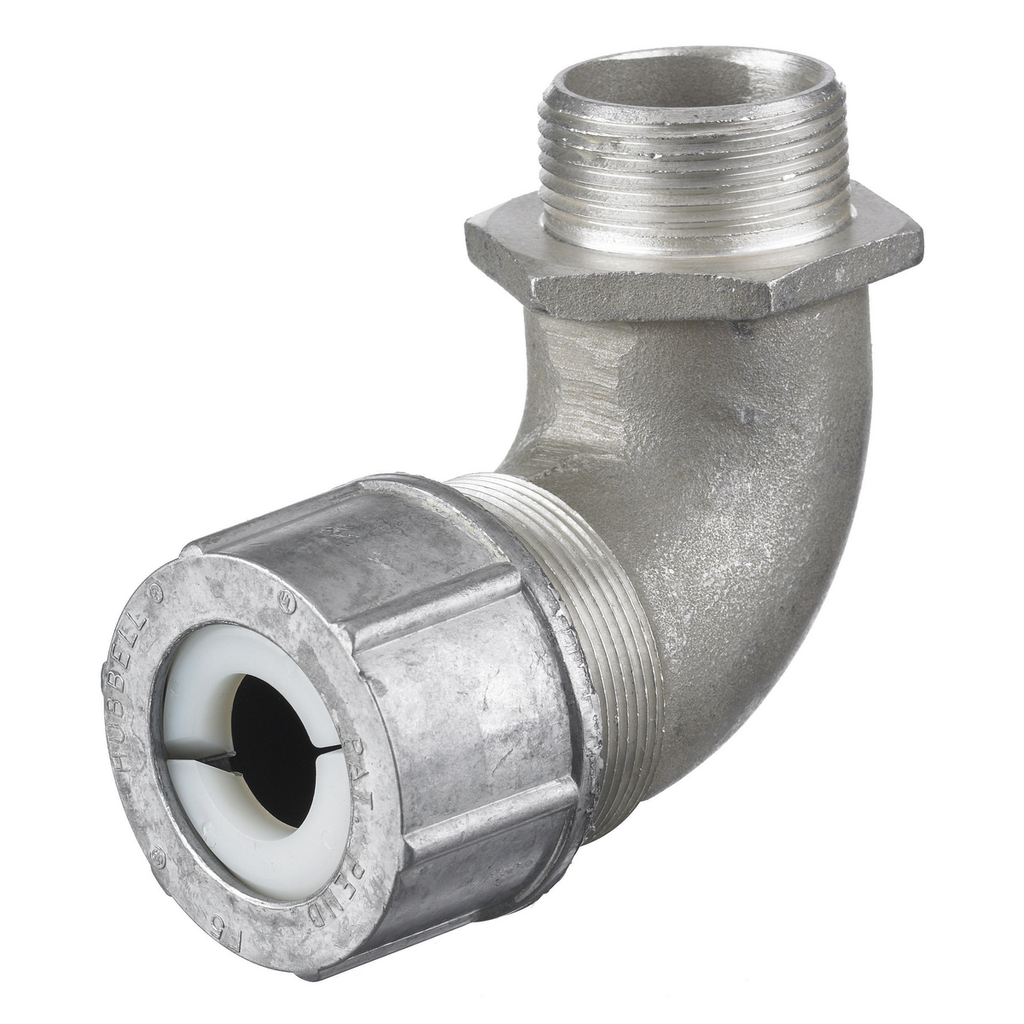

HCI NHC1066 90 MALE CORD CONN, 1.38
$127.21/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # NHC1066
North Coast Part # 272021

Features

  • Cast aluminum cord connector, one-piece design with machined threads
  • Lock nuts sold separately

Specifications

General

  • Application: 90 Degree Male- Form 6
  • Environmental Conditions: Suitable For Use In Wet Locations When Used With A Listed Nylon Washer Between Box And Fitting.
  • Item Type: Cord Connectors
  • Material: Aluminum, Cast
  • Material - Mounting Hardware: Locknut or Tapped Opening
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Performance: Environmental - Hazardous Locations - Used in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class Ill Div. 1 & 2 in accordance with the NEC. | Environmental - Operating Temperatures - -30°F to +240°F (-34°C to +115°C)
  • Series: Standard Duty
  • Temperature Rating: Minimum -30 Deg F to 225 Deg F (-34 Deg C to 107 Deg C)
  • Type: 90° Male
  • UPC: 783585201665

Dimensions

  • Display Size: 2" NPT
  • Hub Size: 2"

Conductor Related

  • Conductor Range: 1.38-1.5 in (34.9- 38.1 mm)
  • Number Of Conductors: Single

Certifications and Compliance

  • Industry Standard(s): UL Listed
  • Nema Rating: NEMA Type 4, 4X, 12 and 13

Logistics

  • Carton Quantity: 5

Overview

UPC 78358520166
GTiN 00783585201665
Length 4.100 in
Finish Machined
Width 2.800 in
Size 2" NPT IN
Type 90, Male, Form 6
Material Machined Aluminum
Number of Conductors Single
Conductor Size 1.38 - 1.5 in
Product Series Standard Duty
Applications 90 Degree Male- Form 6
Height 5.500 in
Trade Size 2 Inch
Temperature Rating -30 to 225 F
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 5
TC Connection NPT
Used With Jacketed UL Listed Cable Only
Sub Brand Kellems Wire Management
Standard UL
Color Metallic
Environmental Conditions Suitable For Use In Wet Locations When Used With A Listed Nylon Washer Between Box And Fitting.
