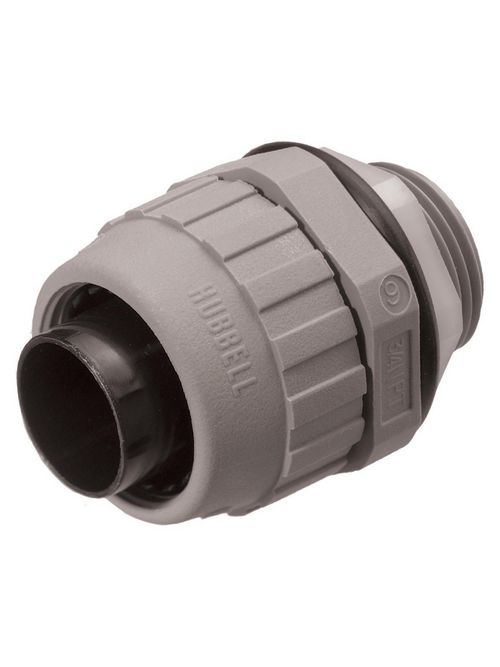

Hubbell Wiring Devices P050NGYA 1/2 Inch Gray Straight Male Non-Metallic Liquidtight Connector
Product image thumbnail 0
Product image thumbnail 1
$2.04/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # P050NGYA
North Coast Part # 67464

Features

  • Nylon compression nut has a tapered dome to tighten ferrule onto conduit
  • Neoprene O-ring provides liquidtight seal
  • Non integral ferrule provides conduit seal and pullout protection

Performance

  • Environmental - Operating Temperature - –30°F to +225°F (–34°C to +107°C)
  • Environmental - Flammability - UL 94X-2

Industry Standard(s)

  • UL Listed:UL50 Type 4X, 12 and 13
  • CSA Certified

Specifications

  • Application: Fittings are to be used with PolyTuff® I and PolyTuff® II
  • Buy Online - Web: No
  • Carton Quantity: 25
  • Color: Gray
  • Material: Nylon
  • Minimum Order Quantity: 25 EA
  • Product Type: PolyTuff® Fittings
  • Style: Straight
  • Trade Size: 1/2
  • Type: PolyTuff® Non-Metallic Liquidtight Fittings
  • EU RoHS Indicator: Yes
  • Each - Length: 1.000 in
  • Each - Height: 2.000 in
  • Each - Width: 1.000 in

Overview

UPC 78358533913
GTiN 00783585339139
Length 54.4 mm
Finish Smooth
Width 1.000 in
Size 1/2 in
Color Gray
Type Straight, Non-Metallic, Standard, 1-Piece, Revolving Thread
Diameter 33 mm OD
Material Nylon
Applications For Use in Wet Locations
Height 2.000 in
Trade Size 1/2 Inch
Thread Length 14.5 mm
Temperature Rating -40 to 107 C
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 25
TC Connection External Male Thread
Sub Brand Kellems Wire Management
Environmental Conditions Suitable for use in wet locations when a listed sealing ring is used between box and fitting
