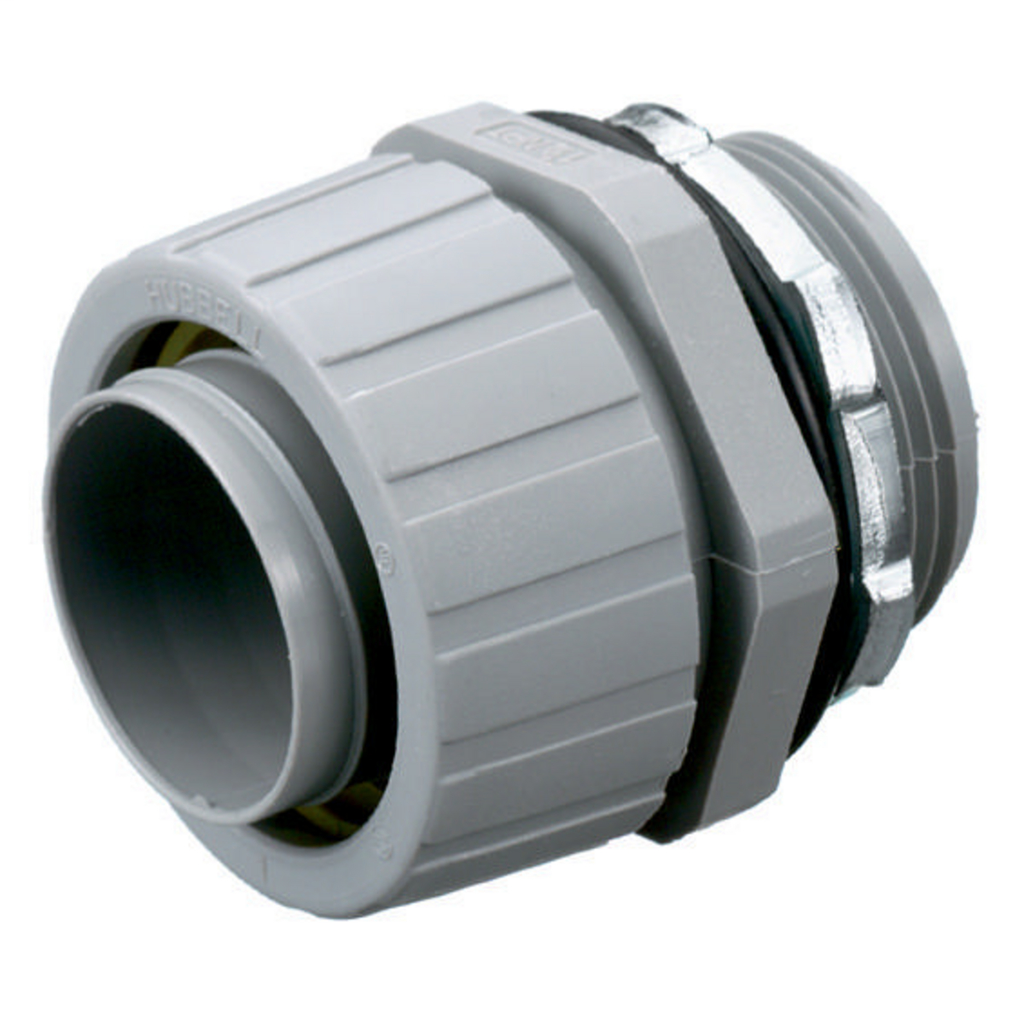

Hubbell Wiring Devices P100NGYA 1 Inch Gray Straight Male Non-Metallic Liquidtight Connector
$5.28/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # P100NGYA
North Coast Part # 151546

Features

  • Nylon compression nut has a tapered dome to tighten ferrule onto conduit
  • Neoprene O-ring provides liquidtight seal
  • Non integral ferrule provides conduit seal and pullout protection

Specifications

General

  • Application: Fittings are to be used with PolyTuff® I and PolyTuff® II
  • Color: Gray
  • Material: Nylon
  • Performance: Environmental - Flammability - UL 94X-2 | Environmental - Operating Temperature - –30°F to +225°F (–34°C to +107°C)
  • Style: Straight
  • Type: PolyTuff® Non-Metallic Liquidtight Fittings
  • UPC: 783585339214

Dimensions

  • Trade Size: 1

Certifications and Compliance

  • Industry Standard(s): CSA Certified | UL Listed:UL50 Type 4X, 12 and 13

Logistics

  • Carton Quantity: 5

Overview

UPC 78358533921
GTiN 00783585339214
Length 58.9 mm
Finish Smooth
Width 1.800 in
Size 1 in
Color Gray
Type Straight, One-Piece, Non-Metallic
Material Nylon
Applications Fittings are to be used with PolyTuff I and PolyTuff II
Height 2.500 in
Trade Size 1 Inch
Thread Length 18.3 mm
Temperature Rating -40 to 225 C
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 5
TC Connection External Threaded
Sub Brand Kellems Wire Management
Standard 12,13,CSA,UL,UL50 Type 4X
Environmental Conditions Suitable for use in wet locations when a listed sealing ring is used between box and fitting
