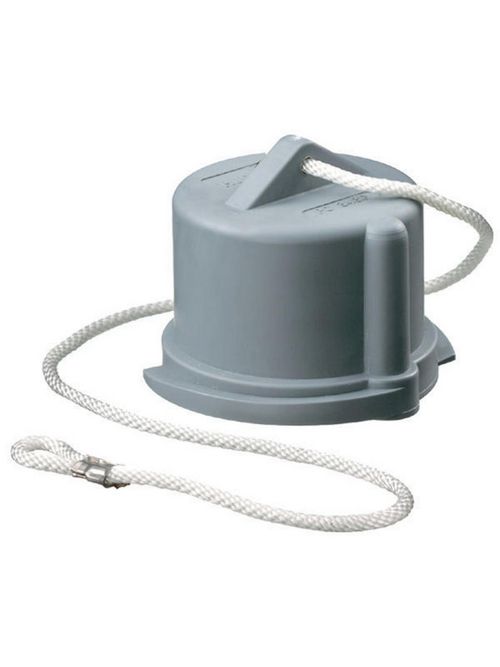

Hubbell Wiring Devices PC100 Watertight IEC Pin and Sleeve Closure Cap
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$84.34/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # PC100
North Coast Part # 218236

Features

  • Cap assemblies provide watertight sealing
  • Manufactured with non-metallic material

Specifications

General

  • Application: All 100 and 125 Amp
  • Color: Gray
  • Environmental Conditions: Watertight
  • Item Type: Plug Cover
  • Material: Composite
  • Material - Mounting Hardware: Cord Mounted
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current | Electrical - Dielectric Voltage - Withstands 3,000V AC | Electrical - Max Working Voltage - 600V AC RMS | Environmental - Flammability - UL94-5VA and V-0 classification | Environmental - Moisture Resistance - IP67 Suitability | Environmental - Operating Temperatures - Max. Continuous:75°C | Min. Continuous:-40°C w/o impact | Mechanical - Impact Resistance - In accordance with UL746C | Mechanical - Product Identification - Ratings are a part of the external label and molded into the receptacle mount | Mechanical - Terminal Identification - Terminals identified in accordance with North American and International conventions
  • Series: Accessories
  • Type: Closure Caps
  • UPC: 783585371009

Dimensions

  • Display Size: Standard Sized

Electrical Ratings

  • Connectivity: Pressure Terminal Screws

Conductor Related

  • Cord Type: All Portable

Certifications and Compliance

  • Industry Standard(s): UL Listed
  • Nema Rating: Non-NEMA

Logistics

  • Carton Quantity: 10

Overview

UPC 78358537100
GTiN 00783585371009
Length 4.248 in
Width 4.248 in
Size Standard Sized
Color Gray
Type Replacement, Watertight
Material Composite
Product Series Accessories
Cord Type All Portable
Applications All 100 and 125 Amp
Height 3.540 in
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 10
TC Connection Pressure Terminal Screws
Used With 100 A and 125 A All Wire
Sub Brand Pin and Sleeve Devices
Standard UL
