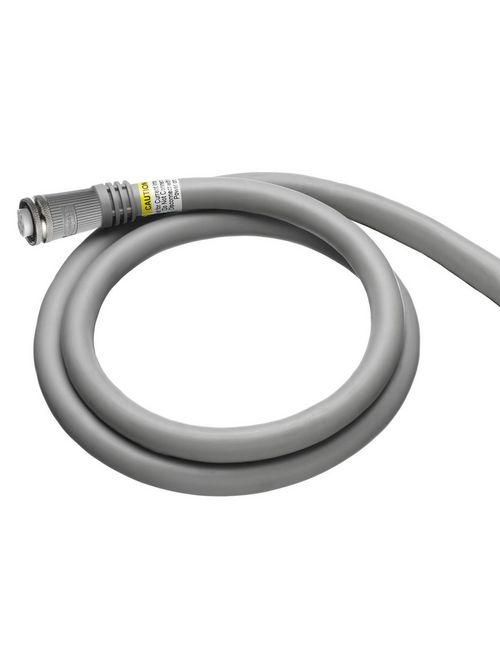

HWDK PF2003PB010 LINKOSITY FEM PLUG
Product image thumbnail 0
Product image thumbnail 1
$152.52/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # PF2003PB010
North Coast Part # 598489

Specifications

General

  • Application: Quick Connect/Disconnect Signal and Control
  • Color: Gray
  • Construction: Fabricated
  • EU RoHS Indicator: Yes
  • Insulation: PVC
  • Item Type: Single Ended Cable, Straight Female Connector
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Plug Type: Linkosity
  • Temperature Rating: -20 Deg C to 105 Deg C
  • UPC: 783585243320

Dimensions

  • Outside Diameter: 0.71

Electrical Ratings

  • Amperage Rating: 20 A
  • Current / Amperage Rating: 20 A
  • Current Rating: 20 A
  • Voltage Rating: 600V kV

Conductor Related

  • Conductor Size: #12 AWG
  • Conductor Type: Copper
  • Number Of Conductors: 3-Pole
  • Strands: Multi

Logistics

  • Carton Quantity: 10

Categories

Overview

UPC 78358524332
GTiN 00783585243320
Length 10 ft
Width 1.000 in
Color Gray
Voltage 600 Volt
Type Single Ended Cable, Straight Female Connector
Number of Conductors 3-Pole
Conductor Size #12 AWG
Applications Quick Connect/Disconnect Signal and Control
Height 9.000 in
Temperature Rating -20 to 105 C
Family Brand Name Hubbell Wiring Device Kellems
Conductor Material Copper
Construction Fabricated
Carton Qty 10
Outside Diameter 0.71 in
Current 20 A
Plug Type Linkosity
Sub Brand Linkosity System
