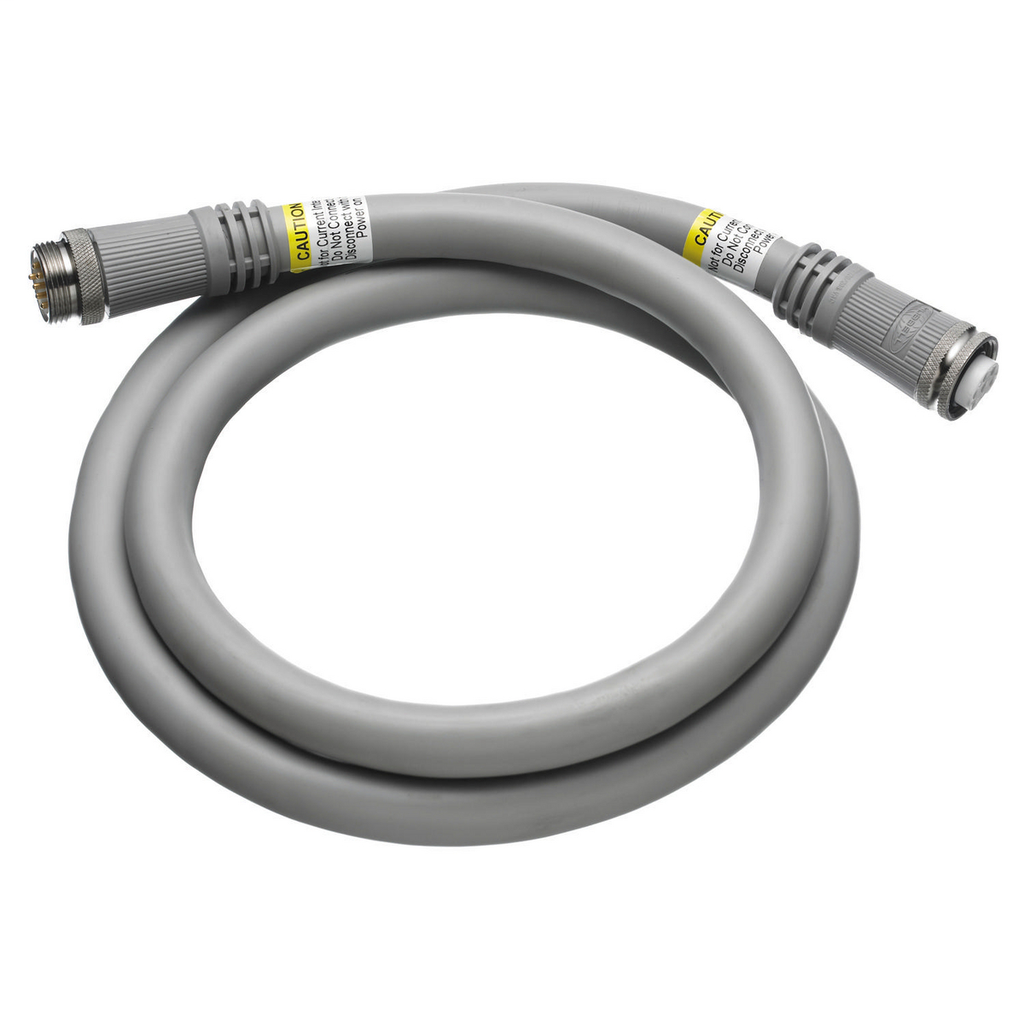

HCI PS3004PA010 LINKOSITY 30A M/F
$281.02/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # PS3004PA010
North Coast Part # 544427

Specifications

General

  • Application: Quick Connect/Disconnect Signal and Control
  • Color: Gray
  • Construction: Fabricated
  • EU RoHS Indicator: Yes
  • Insulation: PVC
  • Item Type: Double Ended Cable with 2) 90 Degree Connectors
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Plug Type: Linkosity
  • Temperature Rating: -20 Deg C to 105 Deg C
  • UPC: 783585116860

Dimensions

  • Outside Diameter: 0.75

Electrical Ratings

  • Amperage Rating: 30 A
  • Current / Amperage Rating: 30 A
  • Current Rating: 30 A
  • Voltage Rating: 600V kV

Conductor Related

  • Conductor Size: #10 AWG
  • Conductor Type: Copper
  • Number Of Conductors: 4-Pole
  • Strands: Multi

Logistics

  • Carton Quantity: 10

Overview

UPC 78358511686
GTiN 00783585116860
Length 5 ft
Width 11.000 in
Color Gray
Voltage 600 Volt
Type Double Ended Cable with 2) 90 Degree Connectors
Number of Conductors 4-Pole
Conductor Size #10 AWG
Applications Quick Connect/Disconnect Signal and Control
Height 2.500 in
Temperature Rating -20 to 105 C
Family Brand Name Hubbell Wiring Device Kellems
Conductor Material Copper
Construction Fabricated
Carton Qty 10
Outside Diameter 0.75 in
Current 30 A
Plug Type Linkosity
Sub Brand Linkosity System
