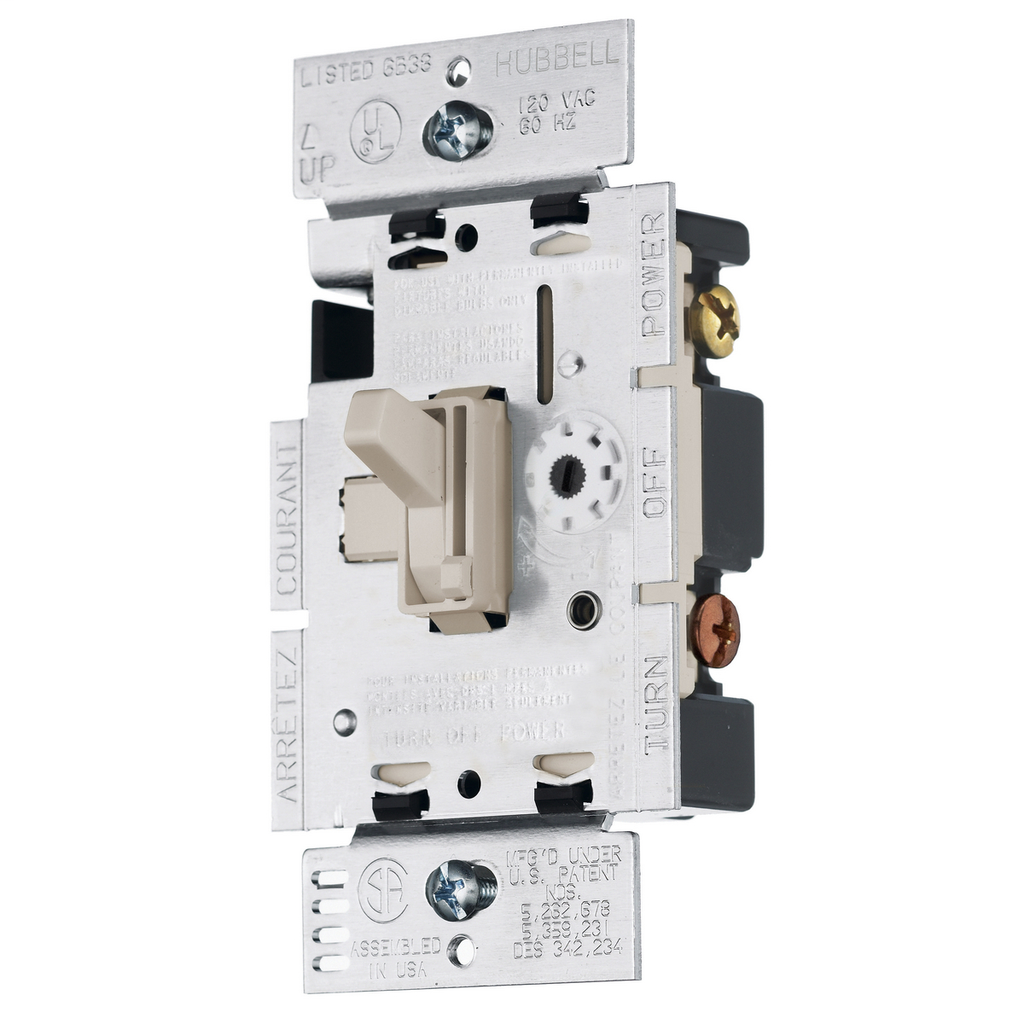

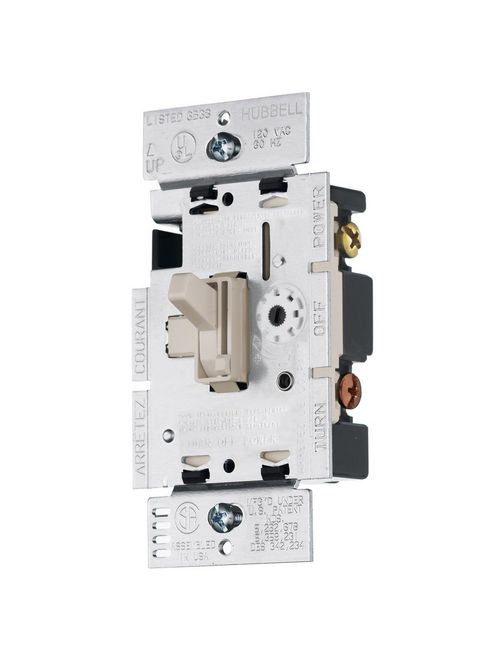

HWDK RAYCL153PLA SP/3-WAY DIMMER CF
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$85.01/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # RAYCL153PLA
North Coast Part # 1608545

Features

  • Optimum CFL and LED Control
  • Low End Adjustment for Fine Tuning
  • Decorator and Traditional Toggle Styling Available

Specifications

  • Application - For Use On: Only use with Compatible Dimmable Bulbs
  • Country of Origin: MX
  • Depth: 1.3 in
  • Each - Height: 2.400 in
  • Each - Length: 4.700 in
  • Each - Width: 2.400 in
  • Height: 4.1 in
  • Industry Standard(s): UL Listed
  • Show Add To ProjectList: Yes
  • Amperage Rating: 1.25 A
  • Color: Light Almond
  • Environmental Conditions: Indoor Use Only
  • Number of Poles: Single Pole / 3-Way
  • Operating Temperature: 32 Deg F to 104 Deg F (0 Deg C to 40 Deg C)
  • Standard: UL Listed
  • Type: LED/CFL
  • Voltage Rating: 120 VAC
  • Wattage: 150 W
  • Voltage Rating Description: 120V AC
  • Width: 2.2 in

Certifications

  • EU RoHS Indicator: No

Categories

Overview

UPC 88377830456
Item Long Description Switches and Lighting Controls, Dimmer, Rotary, Three Way, CFL and LED Loads, Light Almond
GTiN 00883778304569
Width 2.2 in
Size Standard Sized
Color Light Almond
Operating Temperature 0 To 40 C
Voltage 120 Volt
Type LED/CFL
Applications Residential Lighting Controls
Depth 1.3 in
Height 4.1 in
Style Toggle Dimmer
Wattage 150 Watt
Family Brand Name Hubbell Wiring Device Kellems
Construction Metal Strap,Polycarbonate Front
TC Connection Wire Leads
Actuator Preset Slider
Amperage 1.25 Amp
Number of Poles 1 Pole
Enclosure None
Operating Cycles 10k
Sub Brand TradeSelect
Material Composite
Environmental Conditions Indoor Use Only
