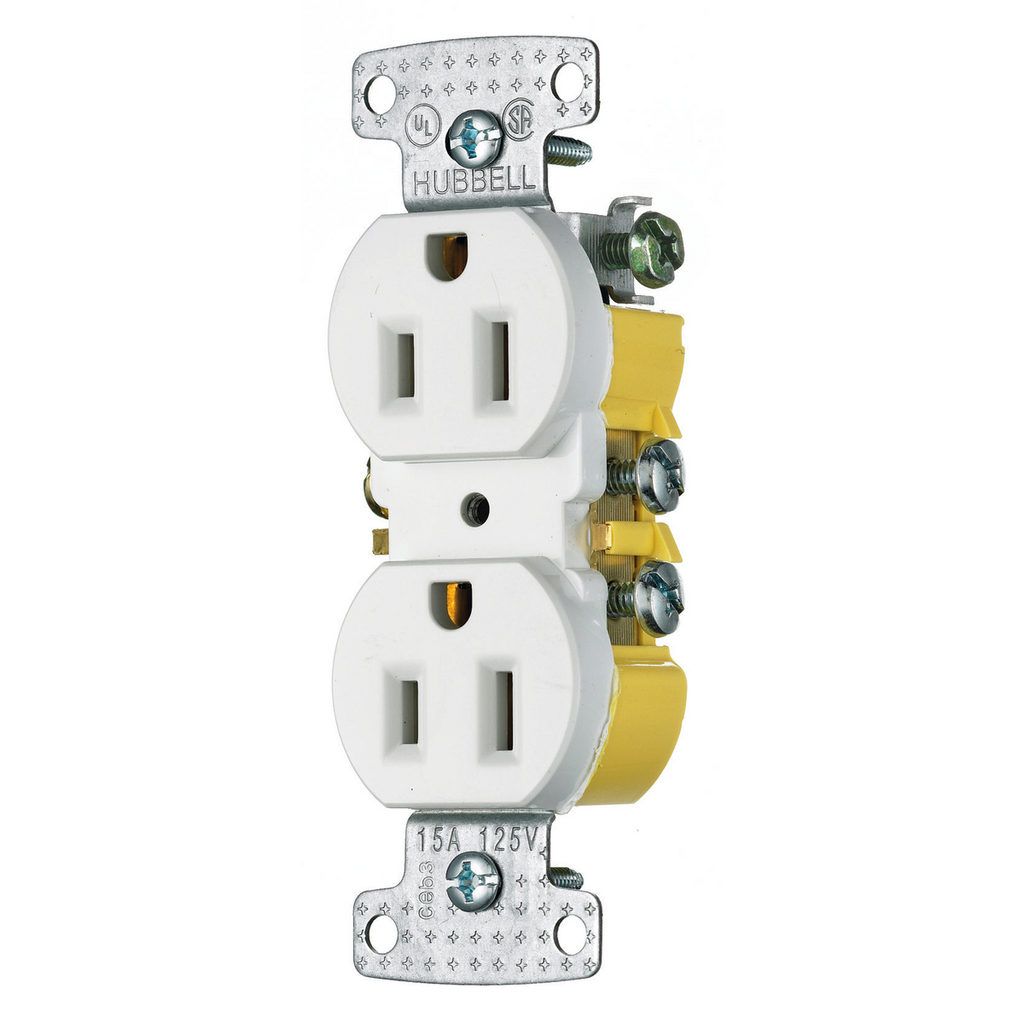

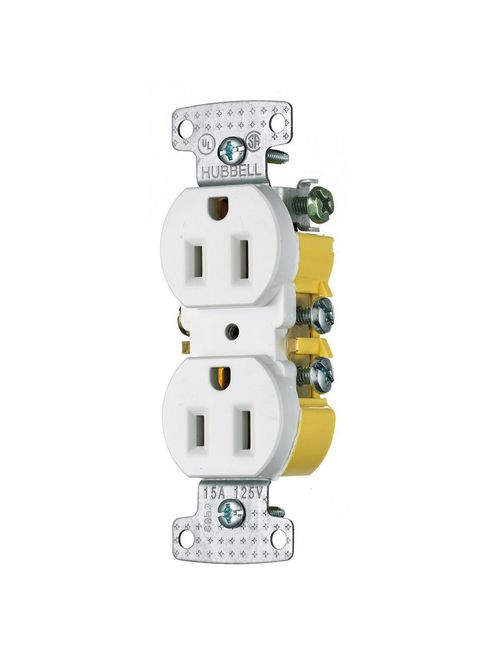

Hubbell Wiring Devices RR15W 15 Amp 125 Volt 2-Pole 3-Wire NEMA 5-15R White Duplex Receptacle
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
Product image thumbnail 4
$0.76/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # RR15W
North Coast Part # 346787

Features

  • Smooth indented face appearance
  • Multiple-drive Slot/Phillips/Robertson head screws
  • Tough thermoplastic ultrasonically welded cover and base

Specifications

General

  • Application: Residential Receptacles
  • Color: White
  • Environmental Conditions: Indoor Dry Unless Protected By Additional Means
  • Item Type: Traditional Duplex
  • Material: Thermoplastic
  • Material - Mounting Hardware: Screw Mounting
  • Number Of Poles: 2-Pole
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Performance: Environmental - Operating temperature - -20°C to 60°C | Mechanical - Terminal - Terminal screws accepts up to #12 AWG, Push wire designed for #14 AWG solid copper wire only
  • UPC: 883778100031

Dimensions

  • Display Size: Standard Sized Product

Electrical Ratings

  • Amperage Rating: 15 A
  • Connectivity: Push and Side Wire
  • Current / Amperage Rating: 15 A
  • Current Rating: 15 A
  • Phase: Single Phase
  • Voltage Rating: 125 VAC
  • Voltage Rating Description: 125 VAC
  • Wattage: 1875

Conductor Related

  • Number Of Wires: 3-Wire Grounding
  • Wire Size: #14 AWG to #12 AWG

Certifications and Compliance

  • Nema Rating: 5-15R

Logistics

  • Carton Quantity: 10

Overview

UPC 88377810003
GTiN 00883778100031
Length 4.200 in
Width 1.400 in
Size Standard Sized
Color White
Voltage 125 Volt
Type Traditional
Material Thermoplastic
Conductor Size 14 - 12 AWG
Applications Residential
Mounting Type Screw
Height 0.900 in
Grade Residential
Wire Size 14-12 AWG
Connection Type Push and Side Wire
Wattage 1875 Watt
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 10
Grounding Self
TC Connection Push and Side Wire
Current 15 A
Environmental Conditions Indoor Dry Unless Protected by Additional Means
Number of Poles 2 Pole
Number of Wires 3
Sub Brand Trade-Select Straight Blade
