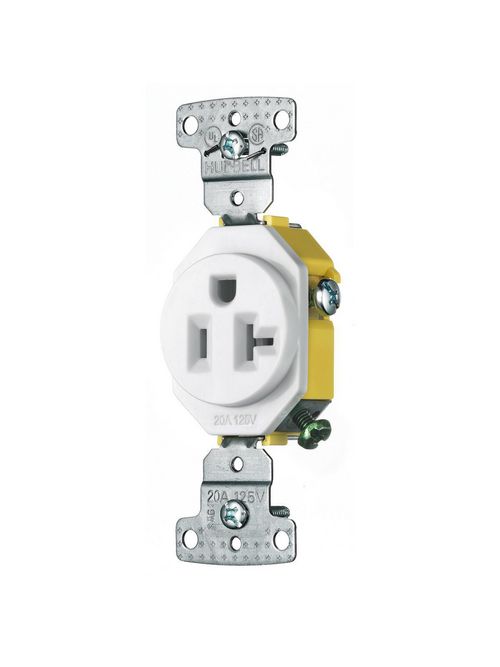

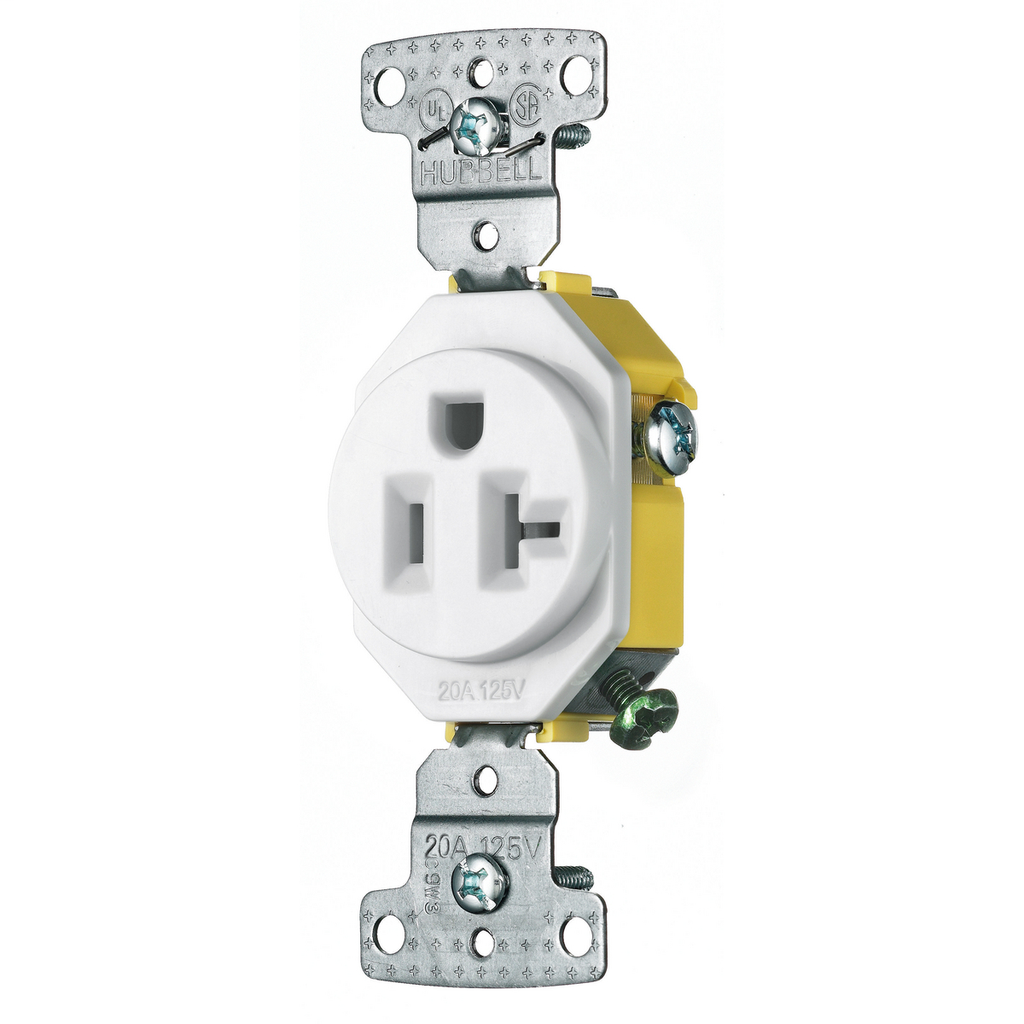

Hubbell Wiring Devices RR201W 20 Amp 125 Volt 2-Pole 3-Wire NEMA 5-20R White Single Receptacle
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$2.84/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # RR201W
North Coast Part # 351003

Features

  • Smooth indented face appearance
  • Multiple-drive Slot/Phillips/Robertson head screws
  • Tough thermoplastic ultrasonically welded cover and base
  • Self Grounding

Specifications

  • Country of Origin: CN
  • Current / Amperage Rating: 20 A
  • Each - Height: 1.000 in
  • Each - Length: 4.200 in
  • Each - Width: 1.700 in
  • Performance: Environmental - Operating temperature - -20°C to 60°C;Mechanical - Terminal - Terminal screws accepts up to #12 AWG, Push wire designed for #14 AWG solid copper wire only
  • Show Add To ProjectList: Yes
  • Amperage Rating: 20 A
  • Application: Residential Receptacles
  • Color: White
  • Environmental Conditions: Indoor Dry Unless Protected By Additional Means
  • NEMA Rating: 5-20R
  • Number of Poles: 2-Pole
  • Number of Wires: 3-Wire Grounding
  • Phase: Single Phase
  • Special Features: Self Grounding
  • Voltage Rating: 125 VAC
  • Wattage: 2500
  • Wire Size: #14 AWG to #12 AWG
  • Voltage Rating Description: 125 VAC

Certifications

  • EU RoHS Indicator: Yes

Overview

UPC 88377810027
Item Long Description TradeSelect, Straight Blade Devices, Residential Grade, Receptacles, Single, 20A 125V, 2-Pole 3-Wire Grounding, 5-20R, Self Grounding, White
GTiN 00883778100277
Length 4.200 in
Width 1.700 in
Size Standard Sized Product
Color White
Voltage 125 Volt
Type Single Receptacle
Material Thermoplastic
Conductor Size 14 - 12 AWG
Applications Residential
Mounting Type Screw
Height 1.000 in
Grade Residential
Wire Size 14-12 AWG
Connection Type Side Wired
Wattage 2500 Watt
Family Brand Name Hubbell
Grounding Self
TC Connection Side Wired
Current 20 A
Environmental Conditions Indoor Dry Unless Protected by Additional Means
Number of Poles 2 Pole
Number of Wires 3
Sub Brand Trade-Select
