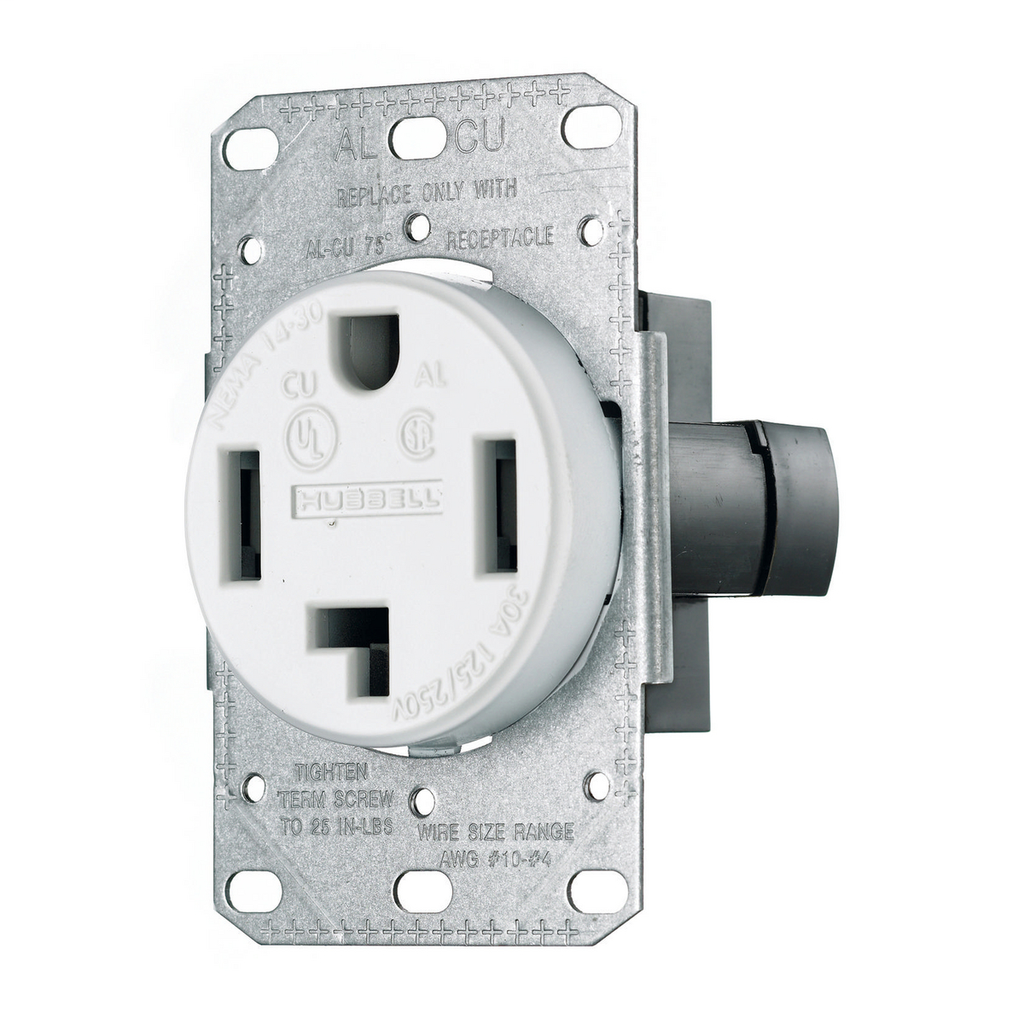

Hubbell Wiring Devices RR430FW 30 Amp 125/250 Volt 3-Pole 4-Wire NEMA 14-30R White Range and Dryer Power Receptacle
$6.69/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # RR430FW
North Coast Part # 335633

Specifications

General

  • Application: Residential Range and Dryer Devices
  • Color: White
  • Environmental Conditions: Indoor Dry Unless Protected By Additional Means
  • Material - Mounting Hardware: Screw Mounting
  • Number Of Poles: 3-Pole
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Series: Heavy Duty
  • Style: Smooth Face
  • Type: Single Receptacle
  • UPC: 883778100734

Dimensions

  • Display Size: Standard Sized Product

Electrical Ratings

  • Amperage Rating: 30 A
  • Connectivity: Pressure Terminal Screws
  • Current / Amperage Rating: 30 A
  • Current Rating: 30 A
  • Phase: Single Phase
  • Voltage Rating: 125/250 V
  • Voltage Rating Description: 125/250 V
  • Wattage: 7500

Conductor Related

  • Number Of Wires: 4-Wire
  • Wire Size: #10 AWG

Certifications and Compliance

  • Industry Standard(s): UL Listed
  • Nema Rating: 14-30R

Logistics

  • Carton Quantity: 10

Overview

UPC 88377810073
GTiN 00883778100734
Length 4.000 in
Width 2.300 in
Size Standard Sized
Color White
Voltage 250 Volt
Type Single Receptacle
Material Thermoplastic
Conductor Size 10 AWG
Product Series Heavy Duty
Applications Residential Range and Dryer Devices
Mounting Type Screw, Flush
Height 2.500 in
Grade Residential
Wire Size 10 AWG
Wattage 7500 Watt
Family Brand Name Hubbell
Carton Qty 10
TC Connection Pressure Screw Terminals
Current 30 A
Environmental Conditions Indoor Dry Unless Protected by Additional Means
Number of Poles 3 Pole
Number of Wires 4
Sub Brand Trade-Select
Standard UL
