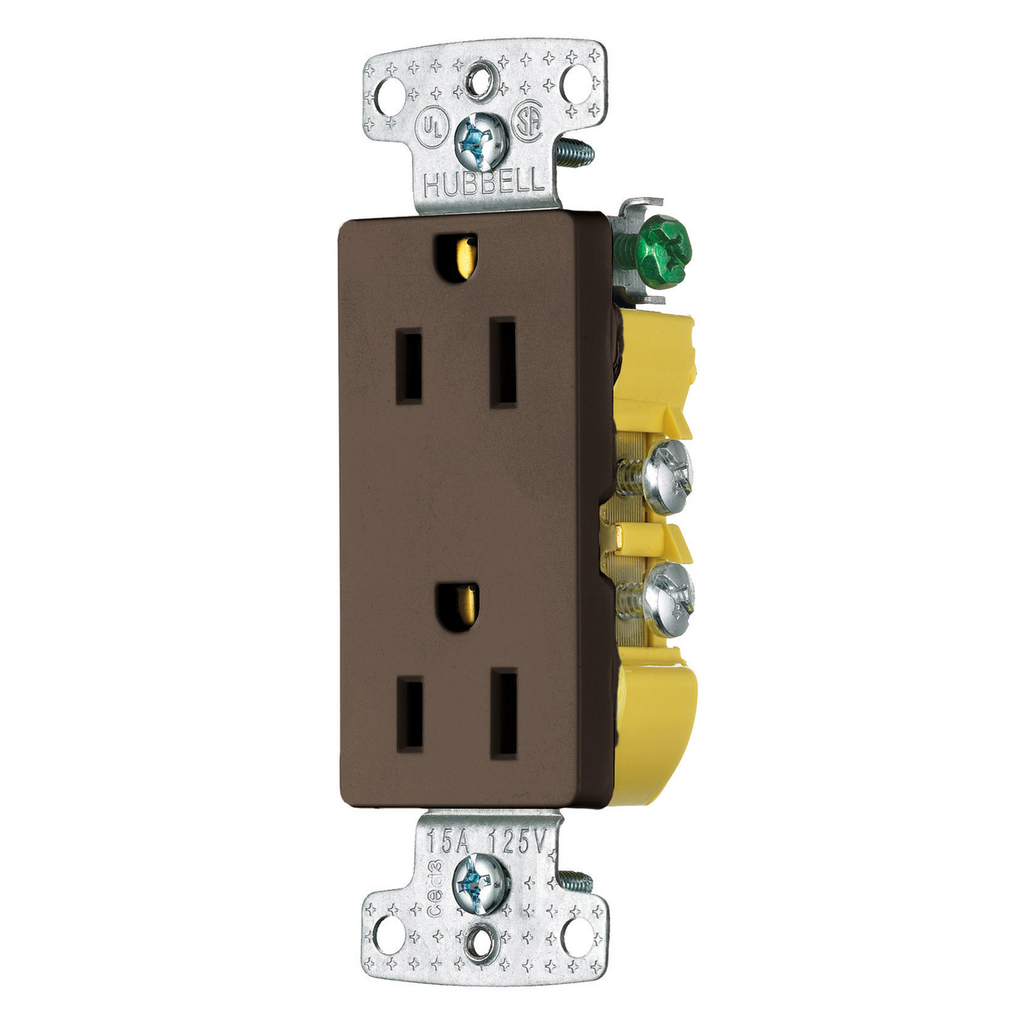

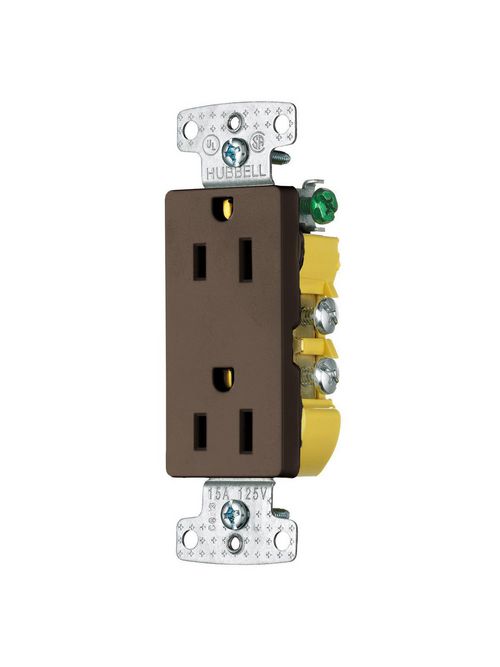

HWDK RRD15 RESI DUP RCPT, 15A 125V,
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$2.23/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # RRD15
North Coast Part # 335063

Features

  • Standard Product

Specifications

  • Country of Origin: CN
  • Current / Amperage Rating: 15 A
  • Each - Height: 1.000 in
  • Each - Length: 4.100 in
  • Each - Width: 1.300 in
  • Show Add To ProjectList: Yes
  • Amperage Rating: 15 A
  • Application: Residential Receptacles
  • Color: Brown
  • Environmental Conditions: Indoor Dry Unless Protected By Additional Means
  • NEMA Rating: 5-15R
  • Number of Poles: 2-Pole
  • Number of Wires: 3-Wire Grounding
  • Phase: Single Phase
  • Special Features: Standard Product
  • Voltage Rating: 125 VAC
  • Wattage: 1875
  • Wire Size: #14 AWG to #12 AWG
  • Voltage Rating Description: 125 VAC

Certifications

  • EU RoHS Indicator: Yes

Categories

Overview

UPC 88377810009
Item Long Description TradeSelect, Straight Blade Devices, Residential Grade, Receptacles, Decorator Duplex, 15A 125V, 2-Pole 3- Wire Grounding, 5-15R, Brown
GTiN 00883778100093
Length 4.100 in
Width 1.300 in
Size Standard Sized Product
Color Brown
Voltage 125 Volt
Type Decorator
Material Thermoplastic
Conductor Size 14-12 AWG
Applications Residential
Mounting Type Screw
Height 1.000 in
Grade Residential
Wire Size 14-12 AWG
Connection Type Push and Side Wire
Wattage 1875 Watt
Family Brand Name Hubbell Wiring Device Kellems
Grounding Self
TC Connection Push and Side Wire
Current 15 A
Environmental Conditions Indoor Dry Unless Protected by Additional Means
Number of Poles 2 Pole
Number of Wires 3
Sub Brand Straight Blade Devices
