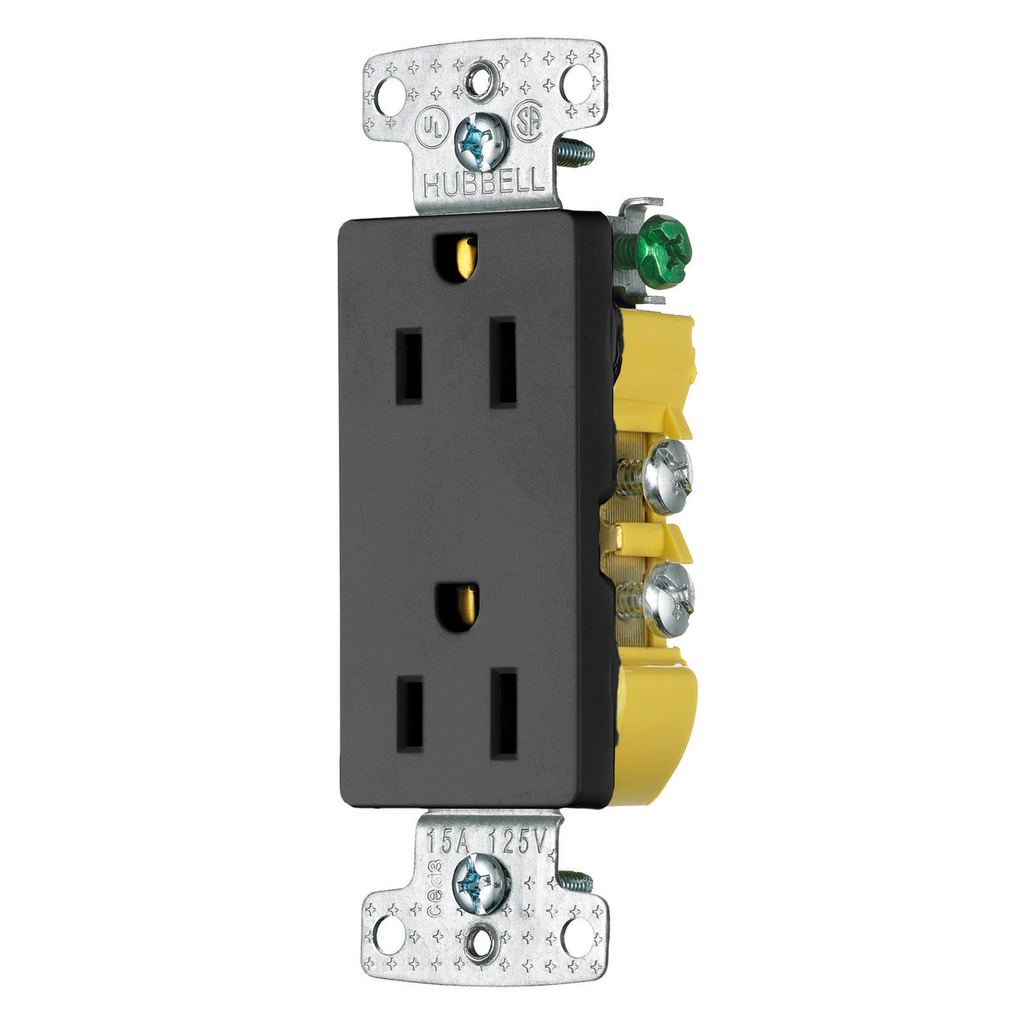

HCI RRD15BK RESI DUP RCPT, 15A 125V
$1.94/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # RRD15BK
North Coast Part # 334178

Specifications

General

  • Application: Residential Receptacles
  • Color: Black
  • Environmental Conditions: Indoor Dry Unless Protected By Additional Means
  • Item Type: Decorator Duplex
  • Material: Thermoplastic
  • Material - Mounting Hardware: Screw Mounting
  • Number Of Poles: 2-Pole
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • UPC: 883778100130

Dimensions

  • Display Size: Standard Sized Product

Electrical Ratings

  • Amperage Rating: 15 A
  • Connectivity: Push and Side Wire
  • Current / Amperage Rating: 15 A
  • Current Rating: 15 A
  • Phase: Single Phase
  • Voltage Rating: 125 VAC
  • Voltage Rating Description: 125 VAC
  • Wattage: 1875

Conductor Related

  • Number Of Wires: 3-Wire Grounding
  • Wire Size: #14 AWG to #12 AWG

Certifications and Compliance

  • Nema Rating: 5-15R

Logistics

  • Carton Quantity: 10

Overview

UPC 88377810013
GTiN 00883778100130
Length 4.100 in
Width 1.300 in
Size Standard
Color Black
Voltage 125 Volt
Type Decorator, Standard
Material Thermoplastic
Applications Residential Receptacle
Height 1.000 in
Wire Size 14-12 AWG
Wattage 1875 Watt
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 10
TC Connection Push and Side Wire
Current 15 A
Number of Poles 2 Pole
Number of Wires 3
Sub Brand Trade-Select Straight Blade
Conductor Size 14-12 AWG
Mounting Type Screw
Connection Type Push and Side Wired
