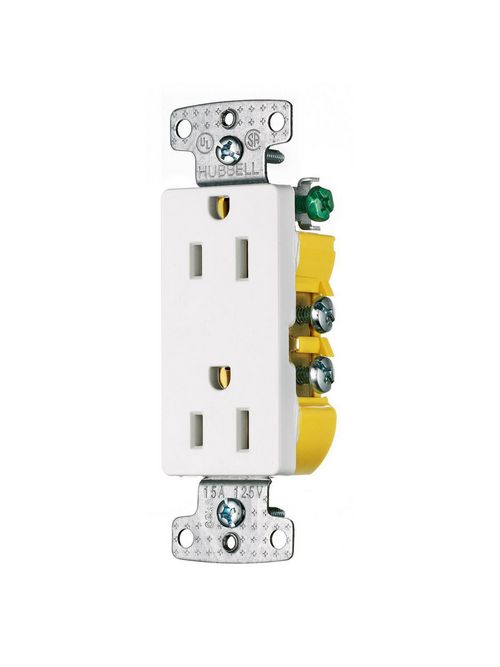

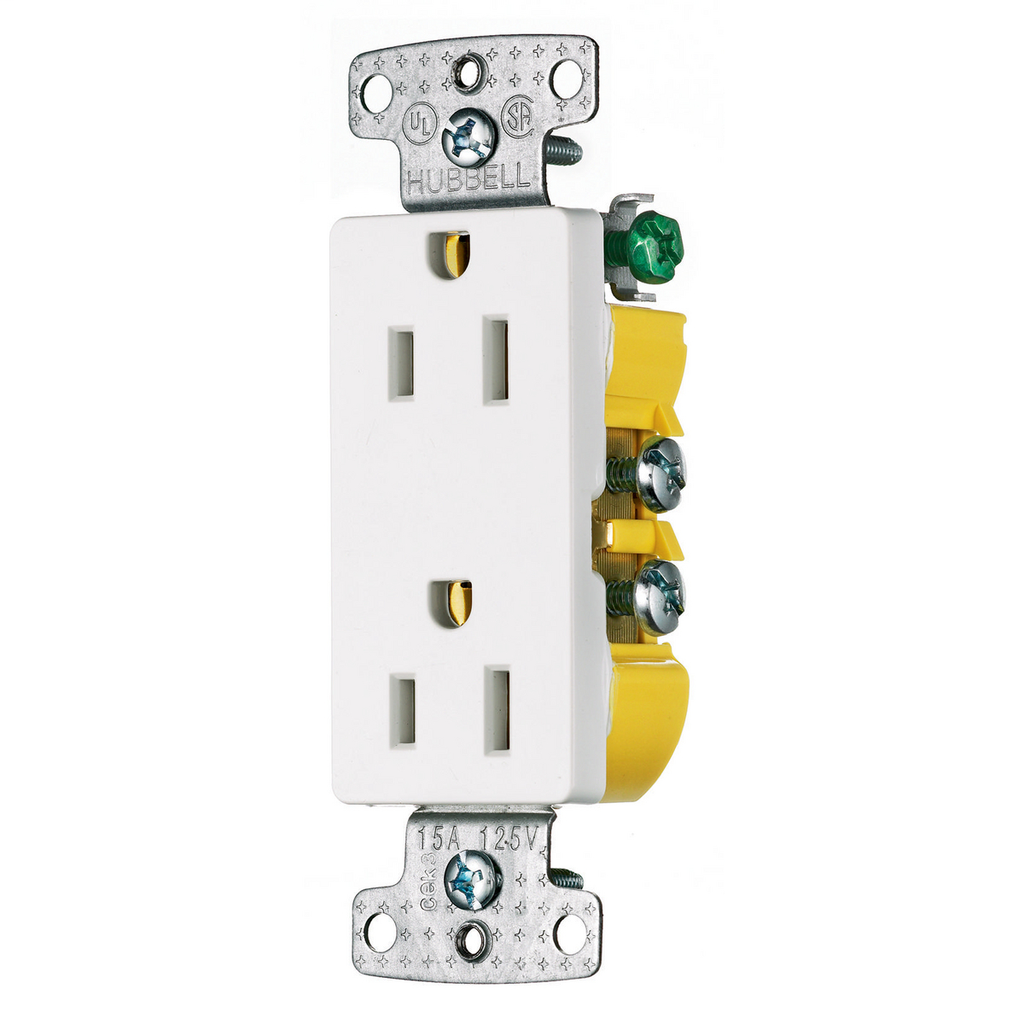

Hubbell Wiring Devices RRD15W 15 Amp 125 Volt 2-Pole 3-Wire NEMA 5-15R White Decorator Duplex Receptacle
Product image thumbnail 0
Product image thumbnail 1
$2.00/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # RRD15W
North Coast Part # 334170

Specifications

General

  • Application: Residential Receptacles
  • Color: White
  • Environmental Conditions: Indoor Dry Unless Protected By Additional Means
  • Item Type: Decorator Duplex
  • Material: Thermoplastic
  • Material - Mounting Hardware: Screw Mounting
  • Number Of Poles: 2-Pole
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • UPC: 883778100116

Dimensions

  • Display Size: Standard Sized Product

Electrical Ratings

  • Amperage Rating: 15 A
  • Connectivity: Eight Push Wire Holes
  • Current / Amperage Rating: 15 A
  • Current Rating: 15 A
  • Phase: Single Phase
  • Voltage Rating: 125 VAC
  • Voltage Rating Description: 125 VAC
  • Wattage: 1875

Conductor Related

  • Number Of Wires: 3-Wire Grounding
  • Wire Size: #14 AWG to #12 AWG

Certifications and Compliance

  • Nema Rating: 5-15R

Logistics

  • Carton Quantity: 10

Overview

UPC 88377810011
GTiN 00883778100116
Length 4.100 in
Width 1.300 in
Size Standard Sized Product
Color White
Voltage 125 Volt
Type Decorator
Material Thermoplastic
Conductor Size 14 - 12 AWG
Applications Residential
Mounting Type Screw
Height 1.000 in
Grade Residential
Wire Size 14-12 AWG
Connection Type Eight Push Wire Holes
Wattage 1875 Watt
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 10
Grounding Self
TC Connection Eight Push Wire Holes
Current 15 A
Environmental Conditions Indoor Dry Unless Protected by Additional Means
Number of Poles 2 Pole
Number of Wires 3
Sub Brand Straight Blade Devices
