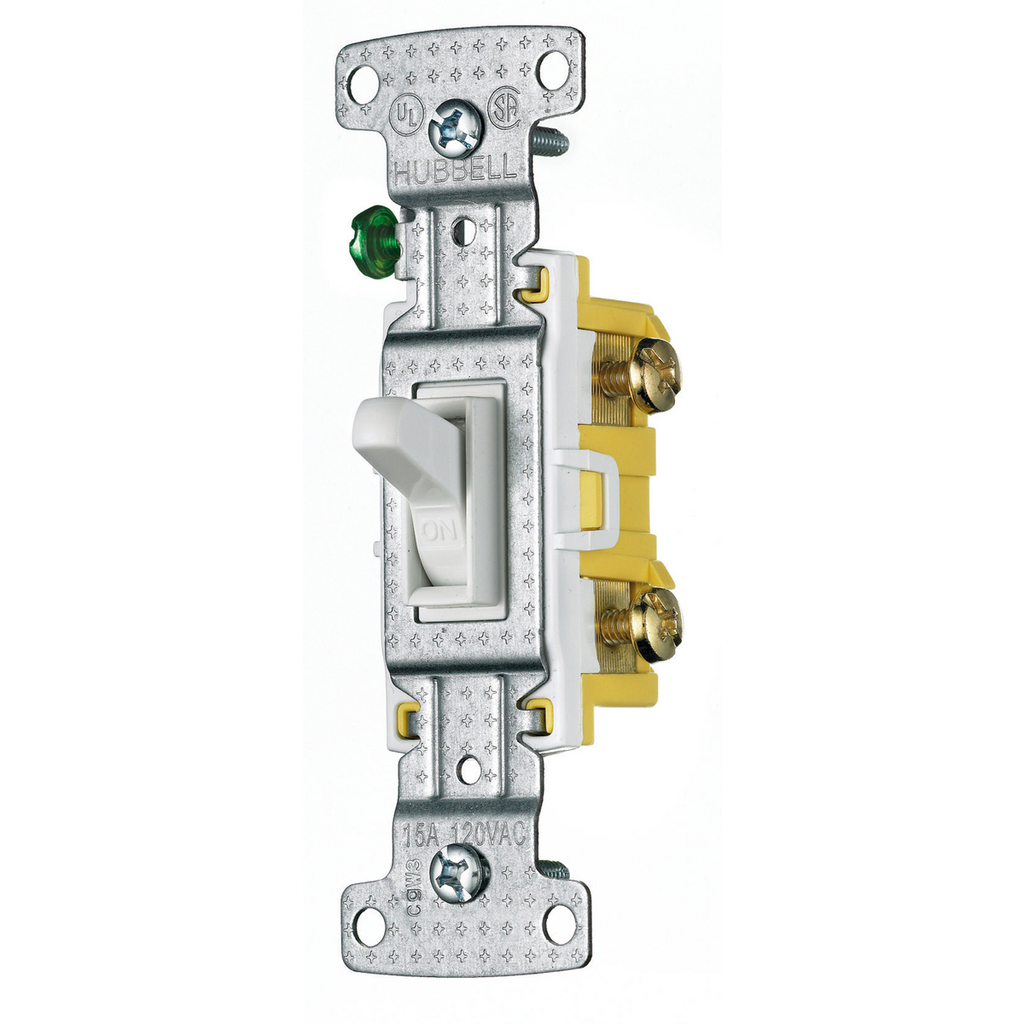

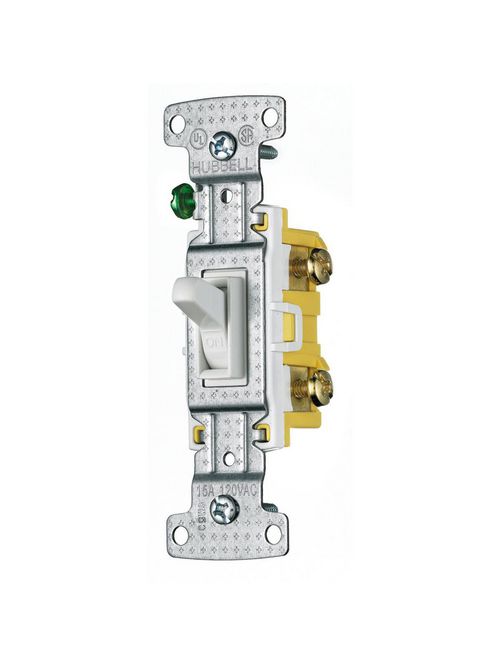

Hubbell Wiring Devices RS115W 15 Amp 120 VAC 1-Pole White Toggle Switch
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$1.70/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # RS115W
North Coast Part # 346785

Features

  • Hi-visibility yellow base for easy installation
  • Elongated strap for easier wall box mounting
  • Tough thermoplastic with ultrasonically welded cover and base

Specifications

  • Country of Origin: CN
  • Each - Height: 1.700 in
  • Each - Length: 4.100 in
  • Each - Width: 1.400 in
  • Industry Standard(s): CSA Certified;UL Listed E3896
  • Performance: Environmental - Operating temperatures - Maximum continuous 60°C;minimum -20°C (without impact)
  • Show Add To ProjectList: Yes
  • Standard: CSA Certified; UL Listed E3896

Certifications

  • EU RoHS Indicator: Yes

Overview

UPC 88377810089
Item Long Description TradeSelect, Switches and Lighting Controls, Residential Grade, Toggle Switches, Single Pole, 15A 120V AC, White
GTiN 00883778100895
Length 4.100 in
Width 1.400 in
Size Compact
Color White
Operating Temperature Max Continuous- 60 Degrees C, Minimum- -20 Without Impact
Type General Purpose, 2 Position, Compact
Applications Residential Toggle Switches
Height 1.700 in
Grade Residential
Wattage 1800 Watt
Family Brand Name Hubbell
TC Connection Push and Side Wired
Actuator Toggle
Contact Configuration Two Position
Contact Rating Per UL 20
Number of Poles 1 Pole
Enclosure None
Action Positive Snap
Operating Cycles 10000
Sub Brand Trade-Select
Standard CSA,E3896,UL
Voltage 120 VAC
Environmental Conditions Indoor Dry unless protected by additional means

Substitutes (2)
