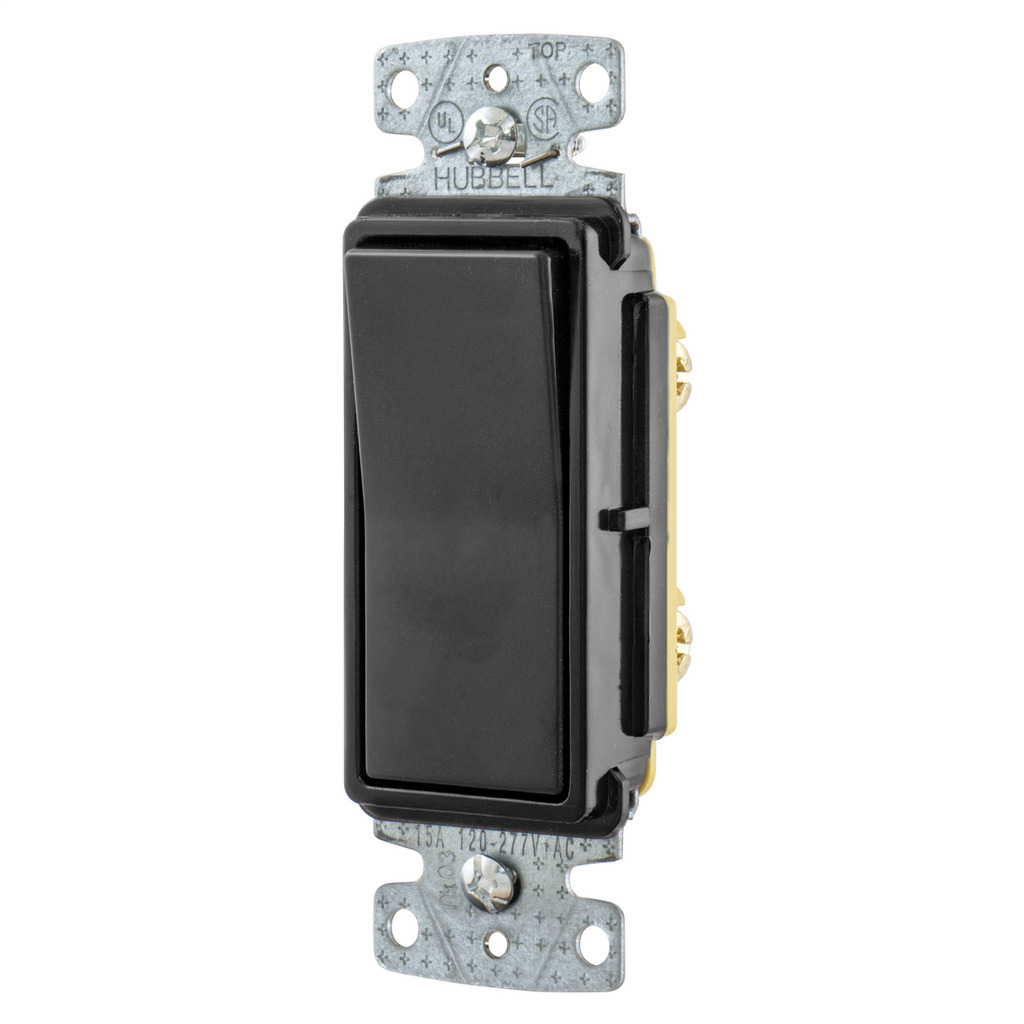

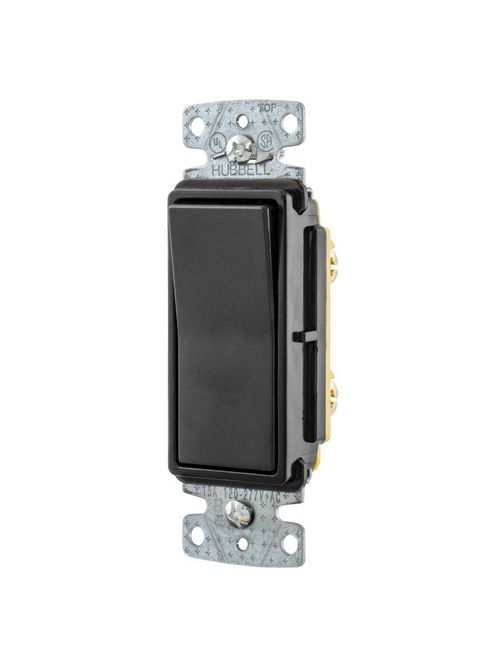

Hubbell Wiring Devices RSD115BK 15 Amp 120/277 VAC 1-Pole Black Rocker Switch
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
Product image thumbnail 4
$2.67/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # RSD115BK
North Coast Part # 347098

Features

  • Smooth, quiet rocker
  • Self-grounding feature is standard
  • Ultrasonically welded cover and base

Specifications

General

  • Performance: Electrical - Dielectric voltage - Withstands 1,500V AC minimum for 1 minute | Electrical - Endurance - 30,000 cycles minimum | Electrical - Max. working voltage - 120V | Electrical - Overload - 1.5 times rating | Environmental - Flammability - UL V0 | Environmental - Operating temperatures - Maximum continuous 60°C | minimum -20°C (without impact) | Mechanical - Terminal accommodation - Back and side wire: #14 AWG min. - #12 AWG max. solid and stranded copper wire only | push wire: #14 AWG solid copper wire only
  • UPC: 883778101168

Certifications and Compliance

  • Industry Standard(s): CSA Certified | Listed to UL Standard 20

Logistics

  • Carton Quantity: 10

Overview

UPC 88377810116
GTiN 00883778101168
Length 4.100 in
Width 1.400 in
Size Standard Sized
Color Black
Operating Temperature Max Continuous- 60 Degrees C, Minimum- -20 Without Impact
Type General Purpose, Standard
Terminal Type Screw
Applications Residential Wiring Devices
Height 1.400 in
Wattage 4,155 Watt
Temperature Rating -20 C Minimum without Impact, 60 C Maximum Continuous
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 10
Power Rating 4155 W
TC Connection Push Wire, Back and Side Wire
Actuator Rocker
Contact Configuration 2 Position
Contact Rating Per UL 20
Number of Positions 2
Number of Poles 1 Pole
Enclosure None
Indicator None
Operating Cycles 30000
Sub Brand AC Decorator Switches
Standard UL Standard 20,CSA
Voltage null
