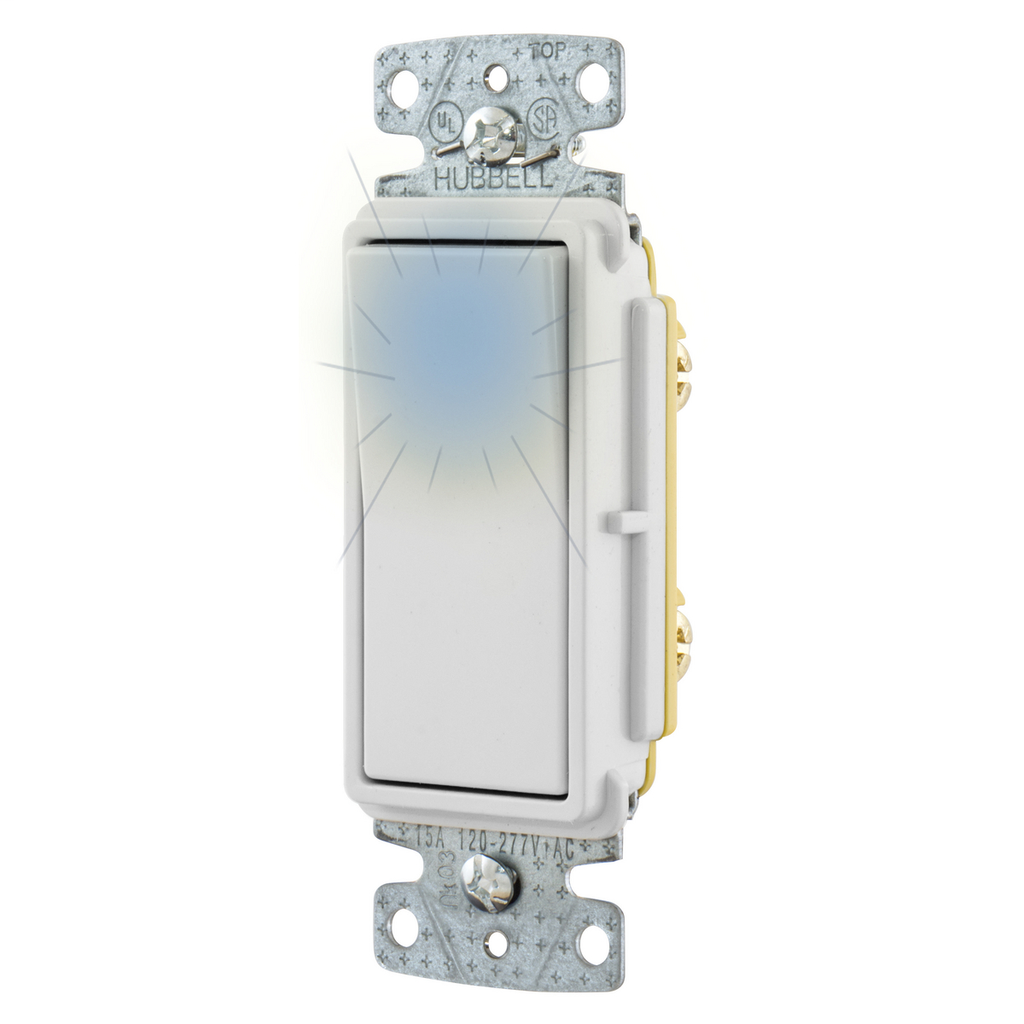

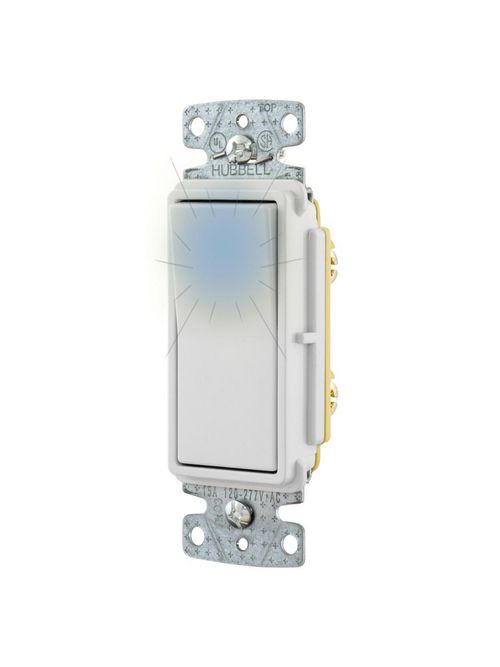

Hubbell Wiring Devices RSD115ILW 15 Amp 120 VAC 1-Pole White Rocker Switch
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
Usually ships within 6 to 8 Days
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # RSD115ILW
North Coast Part # 347536


  • Smooth, quiet rocker
  • Self-grounding feature is standard
  • Ultrasonically welded cover and base


  • Country of Origin: CN
  • Each - Height: 1.400 in
  • Each - Length: 4.300 in
  • Each - Width: 1.300 in
  • Industry Standard(s): CSA Certified;Listed to UL Standard 20
  • Performance: Electrical - Dielectric voltage - Withstands 1,500V AC minimum for 1 minute;Electrical - Endurance - 30,000 cycles minimum;Electrical - Max. working voltage - 120V;Electrical - Overload - 1.5 times rating;Environmental - Flammability - UL V0;Environmental - Operating temperatures - Maximum continuous 60°C;minimum -20°C (without impact);Mechanical - Terminal accommodation - Back and side wire: #14 AWG min. - #12 AWG max. solid and stranded copper wire only;push wire: #14 AWG solid copper wire only
  • Show Add To ProjectList: Yes
  • Standard: CSA Certified; Listed to UL Standard 20


  • EU RoHS Indicator: Yes


UPC 88377810118
Item Long Description TradeSelect, Switches and Lighting Controls, Decorator Switch, Residential Grade, Rocker Switch, General Purpose AC, Illuminated Single Pole, 15A 120/277V AC, Push Back and Side
GTiN 00883778101182
Length 4.300 in
Width 1.300 in
Size Standard Sized
Color White
Operating Temperature Max Continuous- 60 Degrees C, Minimum- -20 Without Impact
Type General Purpose, Standard
Terminal Type Screw
Applications Residential Wiring Devices
Height 1.400 in
Wattage 1800 Watt
Temperature Rating -20 C Minimum Without Impact, 60 C Maximum Continuous
Family Brand Name Hubbell Wiring Device Kellems
Power Rating 1800 W
TC Connection Push Wire
Actuator Rocker
Contact Configuration 2 Position
Environmental Conditions Indoor Dry Unless Protected by Additional Means
Contact Rating Per UL 20
Number of Positions 2
Number of Poles 1 Pole
Enclosure None
Indicator None
Operating Cycles 30000
Sub Brand AC Decorator Switches
Standard CSA,UL Standard 20
Voltage 120 VAC
Material Composite
Action Positive Snap
