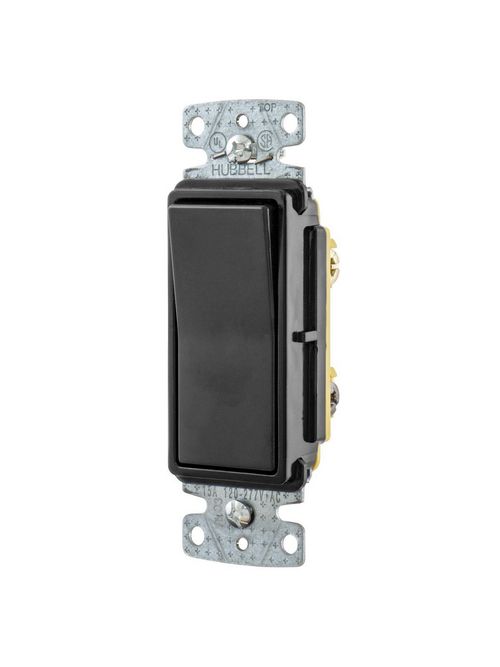

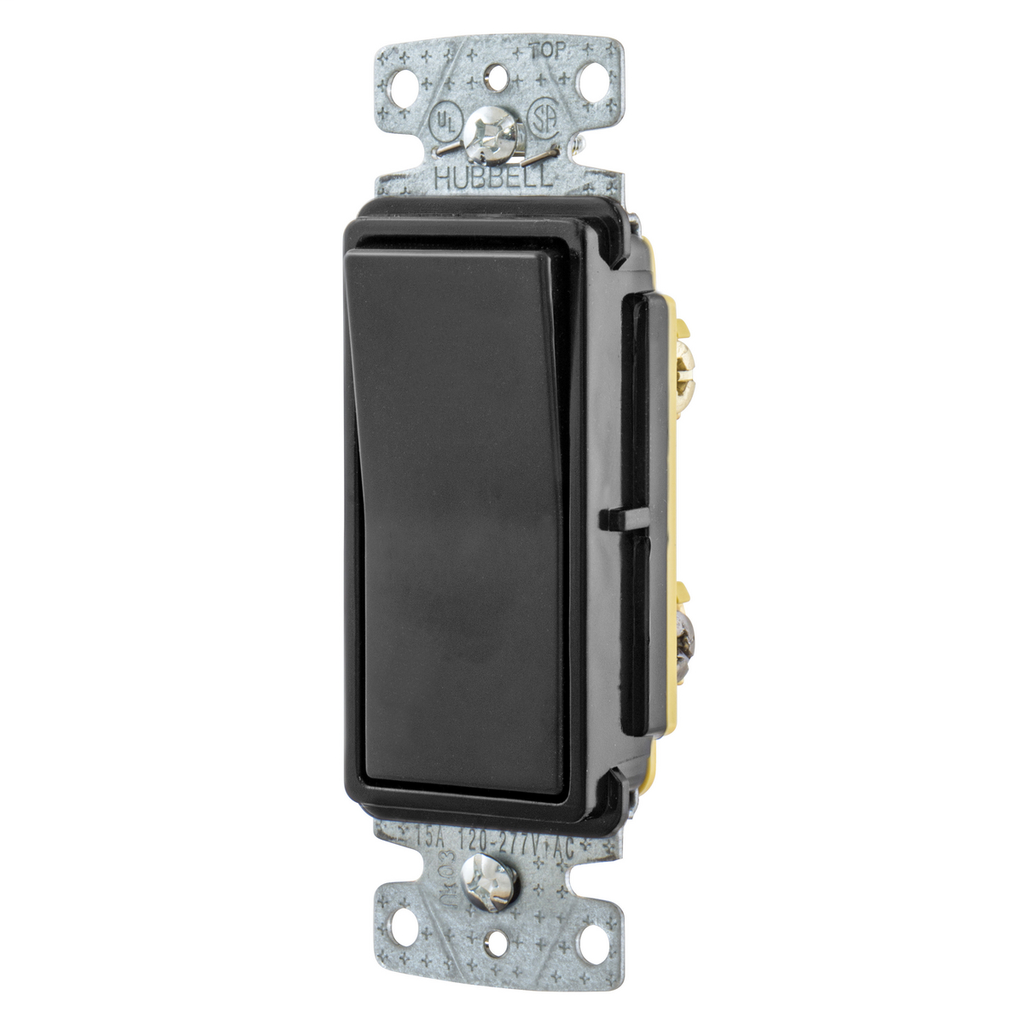

HCI RSD315BK RESI ROCKER SW, 3W, 15
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$4.49/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # RSD315BK
North Coast Part # 347153

Features

  • Smooth, quiet rocker
  • Self-grounding feature is standard
  • Ultrasonically welded cover and base

Specifications

  • Country of Origin: CN
  • Each - Height: 1.400 in
  • Each - Length: 4.100 in
  • Each - Width: 1.400 in
  • Industry Standard(s): CSA Certified;UL Listed E3896
  • Performance: Electrical - Dielectric voltage - Withstands 1,500V AC minimum for 1 minute;Electrical - Endurance - 30,000 cycles minimum;Electrical - Max. working voltage - 120V;Electrical - Overload - 1.5 times rating;Environmental - Flammability - UL V0;Environmental - Operating temperatures - Maximum continuous 60°C;minimum -20°C (without impact);Mechanical - Terminal accommodation - Back and side wire: #14 AWG min. - #12 AWG max. solid and stranded copper wire only;push wire: #14 AWG solid copper wire only
  • Show Add To ProjectList: Yes
  • Standard: CSA Certified; UL Listed E3896

Certifications

  • EU RoHS Indicator: Yes

Overview

UPC 88377810128
Item Long Description TradeSelect, Switches and Lighting Controls, Decorator Switch, Residential Grade, Rocker Switch, General Purpose AC, Three Way, 15A 120/277V AC, Push Back and Side Wired, Black
GTiN 00883778101281
Length 4.100 in
Width 1.400 in
Size Standard Sized
Color Black
Operating Temperature Max Continuous- 60 Degrees C, Minimum- -20 Without Impact
Type 3-Way, General Purpose, Standard
Applications Residential Wiring Devices
Height 1.400 in
Wattage 4155 Watt
Family Brand Name Hubbell Wiring Device Kellems
TC Connection Push Wired, Back and Side Wired
Actuator Rocker
Contact Configuration 2 Position
Contact Rating Per UL 20
Number of Poles 1 Pole
Enclosure None
Indicator None
Operating Cycles 30000
Sub Brand AC Decorator Switches
Terminal Type Screw
Standard CSA,E3896,UL
Temperature Rating -20 C Minimum without Impact, 60 C Maximum
Power Rating 4155 W
Number of Positions 2
Voltage 120/277 Volt
Material Composite
Environmental Conditions Indoor Dry unless protected by additional means
Action Positive Snap
